Installing a 9.5mm slim optical drive
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Remove the front bezel if you are installing a drive in a bay covered by a bezel blank, then remove the
bezel blank. See Bezel blanks on page 23 for more information.

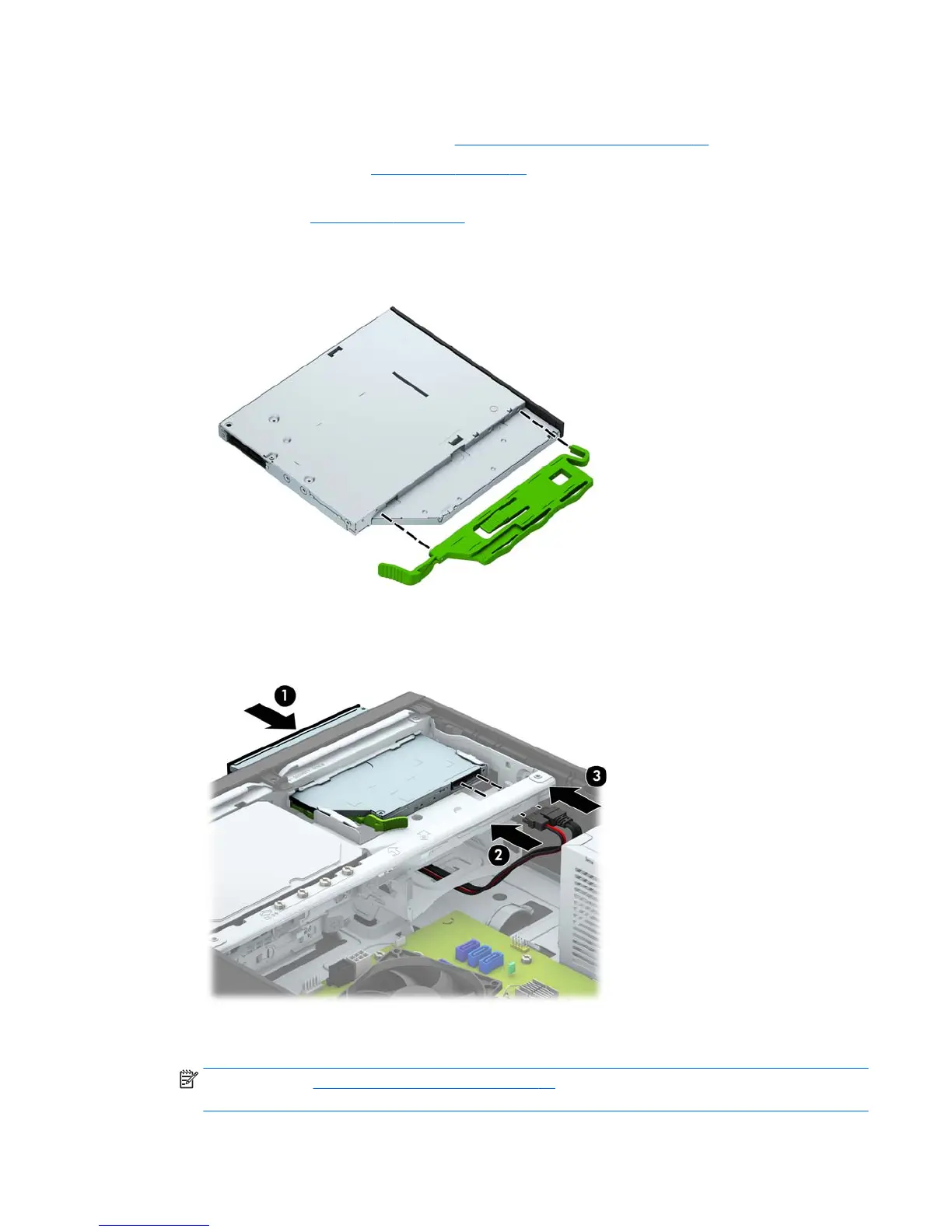

4. Align the small pin on the release latch with the small hole on the side of the drive and press the latch
rmly onto the drive.
5. Slide the optical drive through the front of the chassis all the way into the bay so that it locks in place
(1), and then connect the power cable (2) and data cable (3) to the rear of the drive.
6. Connect the opposite end of the data cable to one of the light blue SATA connectors on the system
board.
NOTE: Refer to System board connections on page 31 for an illustration of the system board drive
connectors.
Drives 37
