HP X2 210 G2 User Manual

Audio board
Description Spare part number
Audio board 902368-001
Audio board bracket 902361-001
Audio board cable 902351-001
Before removing the audio board, follow these steps:
1. Turn o the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see Back cover on page 22).
5. Remove the LCD shield (see LCD shield on page 28).
6. Remove the battery (see Battery on page 29).

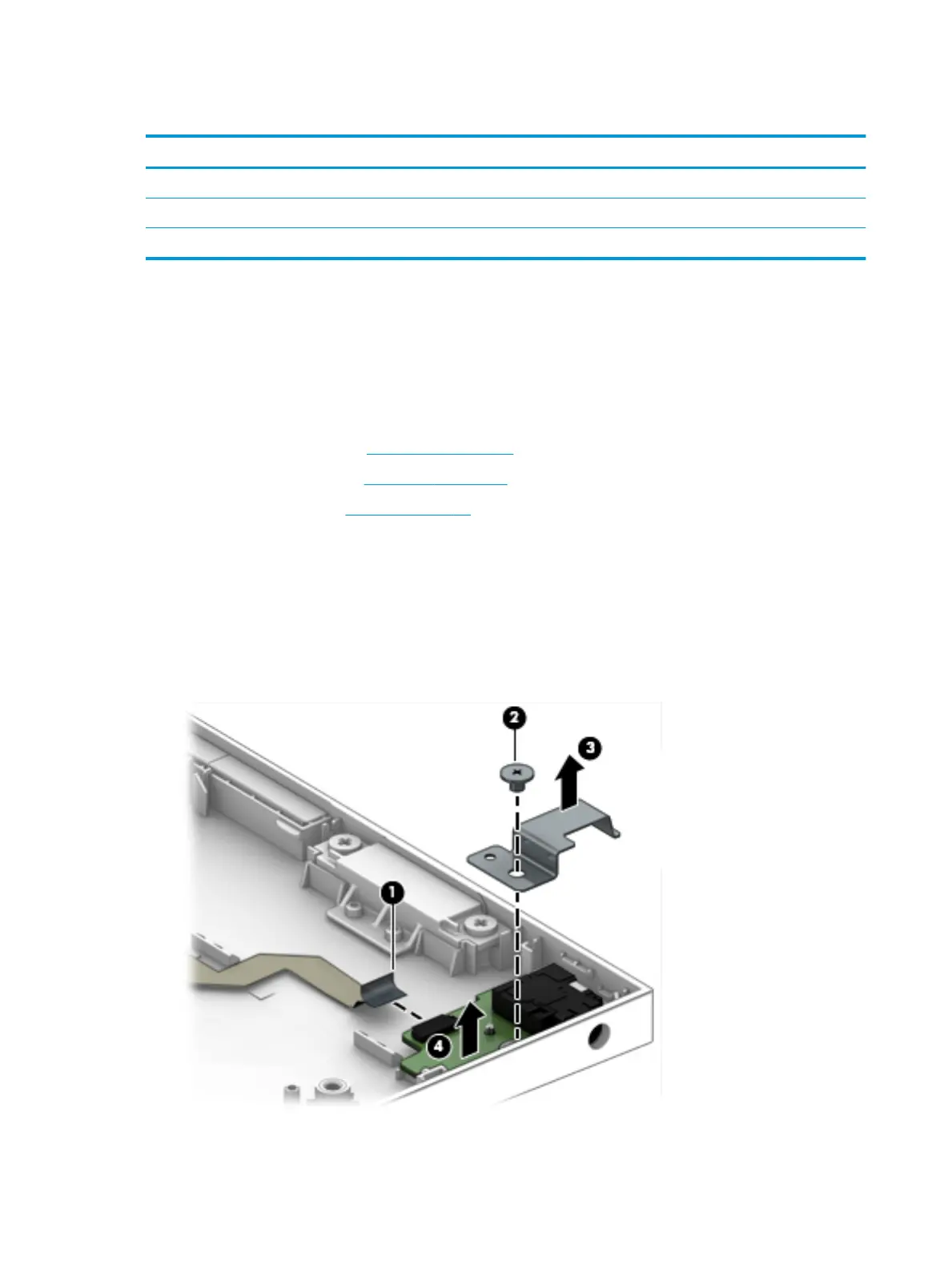

Remove the audio board:
1. Release the ZIF connector (1) to which the audio board cable is attached, and then disconnect the audio
jack board cable from the audio board.
2. Remove the Phillips PM2.0×2.0 screw (2) that secures the audio board bracket to the display assembly.
3. Lift the bracket out of the display panel assembly (3).
4. Remove the audio board (4) and cable.
Reverse this procedure to install the audio board.
32 Chapter 5 Removal and replacement procedures

HP X2 210 G2 Specifications

General

Form factor	Convertible (Detachable)
Product type	Hybrid (2-in-1)
Product color	Silver
Country of origin	China
Stepping	C0
Tjunction	90 °C
Processor cache	2 MB
Processor cores	4
Processor family	Intel Atom®
Processor series	Intel Atom x5 Series
Processor socket	BGA 592
Processor codename	Cherry Trail
Processor frequency	1.44 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	1.84 GHz
Processor operating modes	64-bit
PCI Express configurations	1x1
Scenario Design Power (SDP)	2 W
Maximum number of PCI Express lanes	1
Numeric keypad	No
Pointing device	Touchpad
Full-size keyboard	Yes
Internal memory	2 GB
Internal memory type	DDR3L-SDRAM
Memory layout (slots x size)	1 x 2 GB
Storage media	eMMC
Total storage capacity	32 GB
Compatible memory cards	MicroSD (TransFlash)
Display diagonal	10.1 \
Touch technology	Multi-touch
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Number of execution units	12
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	500 MHz
Battery capacity	32.5 Wh
Number of battery cells	2
AC adapter power	45 W
Audio decoders	DTS Studio Sound
Rear camera resolution (numeric)	5 MP
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Sustainability certificates	EPEAT Silver, ENERGY STAR
Processor code	SR29Z
Processor ARK ID	87383
Processor package size	17 x 17 mm
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	170 mm
Width	265 mm
Height	16.2 mm
Weight	1090 g
Height (tablet mode)	9.2 mm
Weight (tablet mode)	580 g
