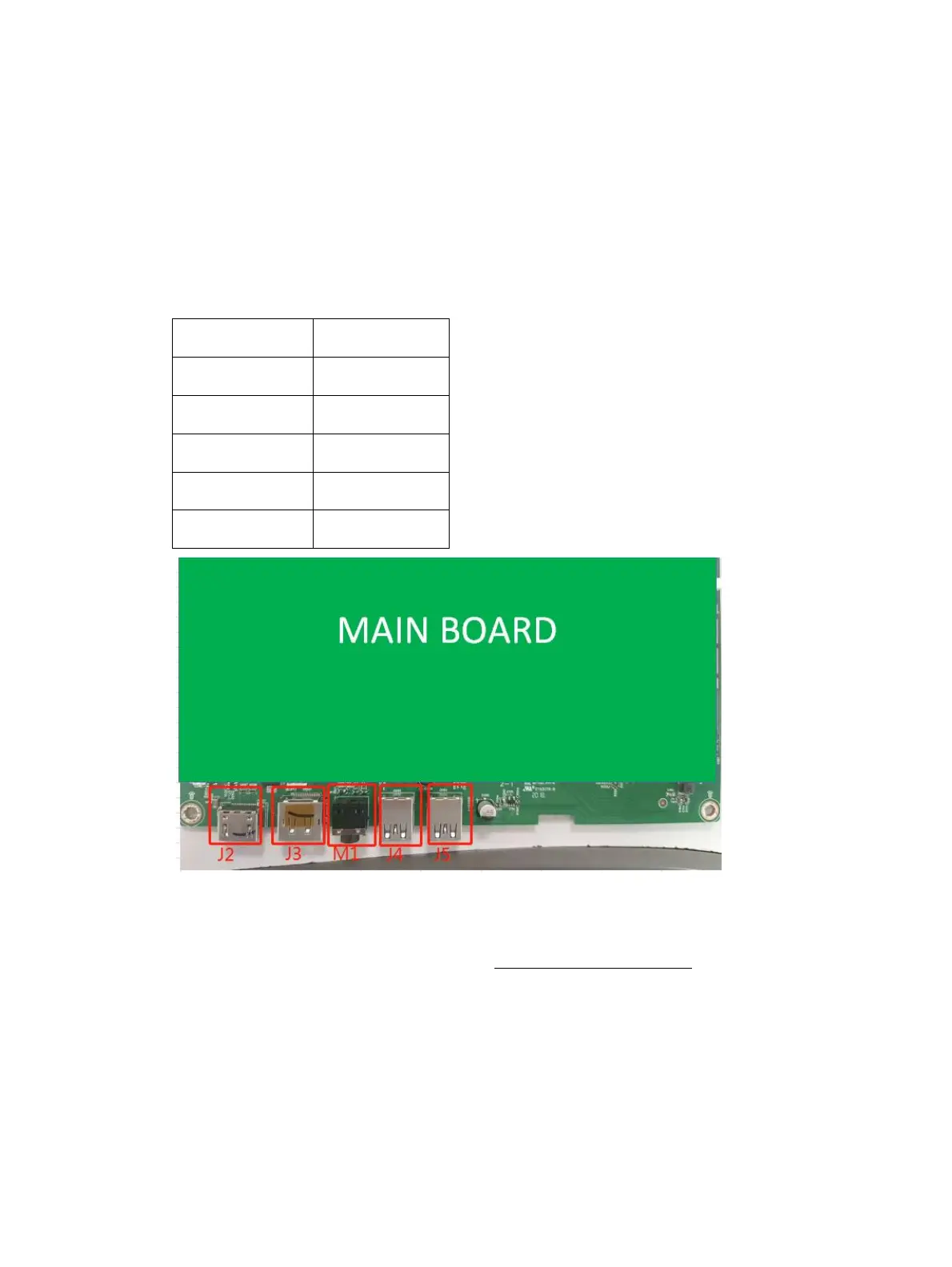

Connector repair

This procedure includes HDMI, DisplayPort , USB and audio connectors.

The connectors are on the main board (board part number CBPCGD9HPQA).

The connectors identifiers are as follows:

Connector

Location

HDMI

DisplayPort

Audio

USB 3.0 TYPE A

Before repairing connectors, follow these steps:

▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 13.

IMPORTANT:

• Repair Condition: Connector repair is only for out of warranty.

• Repairing must operate by professional repairers (Note) in repair center, not applicable for end user.

• Electrostatic protection is required when component replacement is required.

• The monitor meets ROHS, please use Lead-free solder wire for soldering.

• If Connector need to replace, must check specification and part number whether match the BOM and

location.

• If connector need to replace, please insert new parts carefully because the near pin may cause short

circuit by inappropriate operate.

• DO NOT allow any liquid on the board. Water and moisture may cause short-circuit to the electronic
