Routing and Connecting the Cables
Place the monitor in a convenient, well-ventilated location near the computer.
ZR2040w Model
The cable-restraining bar on the pedestal of the ZR2040w is held in place by four tabs.

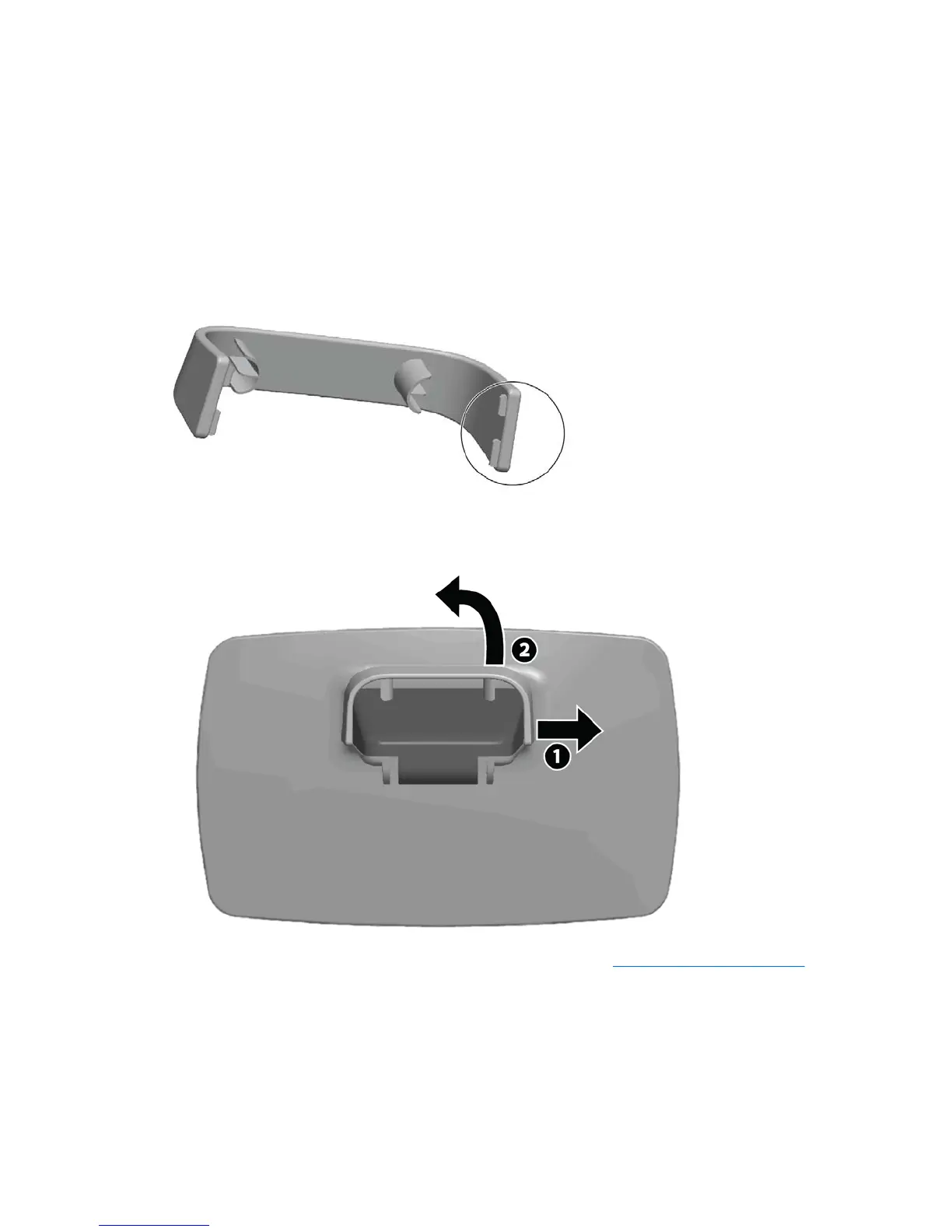

Figure 3-7 Cable-Restraining Bar
1. To remove the bar, first pull one end of the bar away from the pedestal (1). When it is free, the
bar can be removed (2).
2. Connect the video cables provided to the connectors shown in ZR2040w Model on page 7. You
do not have to connect them all.
3. For each cable you've attached, plug the other end into the appropriate connector on the
computer.
12 Chapter 3 Setting Up the Monitor ENWW
