E. Status Display
Status Display will activate when button is pressed and held for ve seconds at Standby Mode.

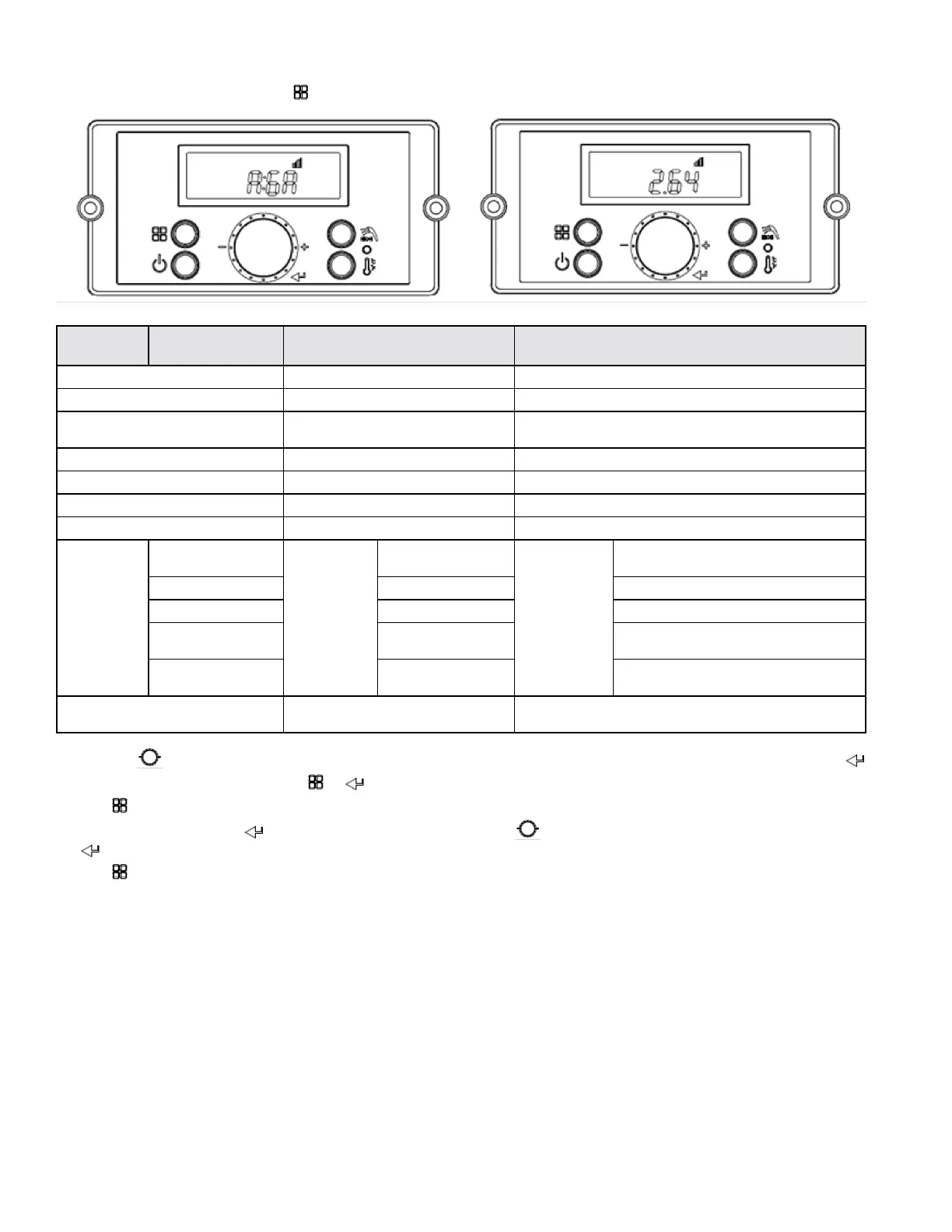

Figure 50 - Status Display Screens
Display
(Main Menu)
Display
(Sub Menu)
Detail Description
A:GA or A:LI
Flow Unit Current Flow Unit (LI: Liters/min, GA: Gallons/min)
b:Fr
Fan Speed (RPM) Current Fan Speed (RPM)
C:Lc
Lock Mode
Lock Mode is In Use (On) or Unused (O)
Allows user to lock out any temperature change
d:oP
Heat exchanger operating temperature Current heat exchanger operating temperature
E:dH
DHW outlet water temperature Current DHW outlet temperature
F:Eh
Exhaust temperature Current exhaust temperature
h:In
Inlet water temperature Current inlet water temperature
L:rt
1:PH
Burner
Operation Time
Power supply
L:rt on display
on sub menu
Time water heater has been powered in 100
hour units
2:rh
Burner operating time Time burner has operated in 1 hour units
3:rH
Burner operating time Time burner has operated in 1000 hour units
4:It
Ignition attempts
Number of ignition attempts: 10 times the
displayed unit
5:IH
Ignition attempts
Number of ignition attempts: 10,000 times
the displayed unit
J:AG
AGM Value Correction
AGM Value Correction Range: -50 to 50
Default: 00
Table 29 - Status Display Screen Descriptions
Turn the dial counterclockwise and clockwise to scroll through the displayed parameters. To view parameter details, press the
button at the appropriate screen. Press the or buttons to leave the parameter.
Press the button again to return to Operation Mode.
To turn on Lock Mode, press the button at the C:Lc parameter. Turn the dial counterclockwise and clockwise to scroll On or O. Press
the button to save the selection and return to the parameters.
Press the button again to return to Operation Mode.
NOTE: The control system will not allow the changes if Lock Mode is activated. Lock Mode will have to be turned o before making further
changes.
