4 System Installation
Issue 07 (2018-05-04)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
23

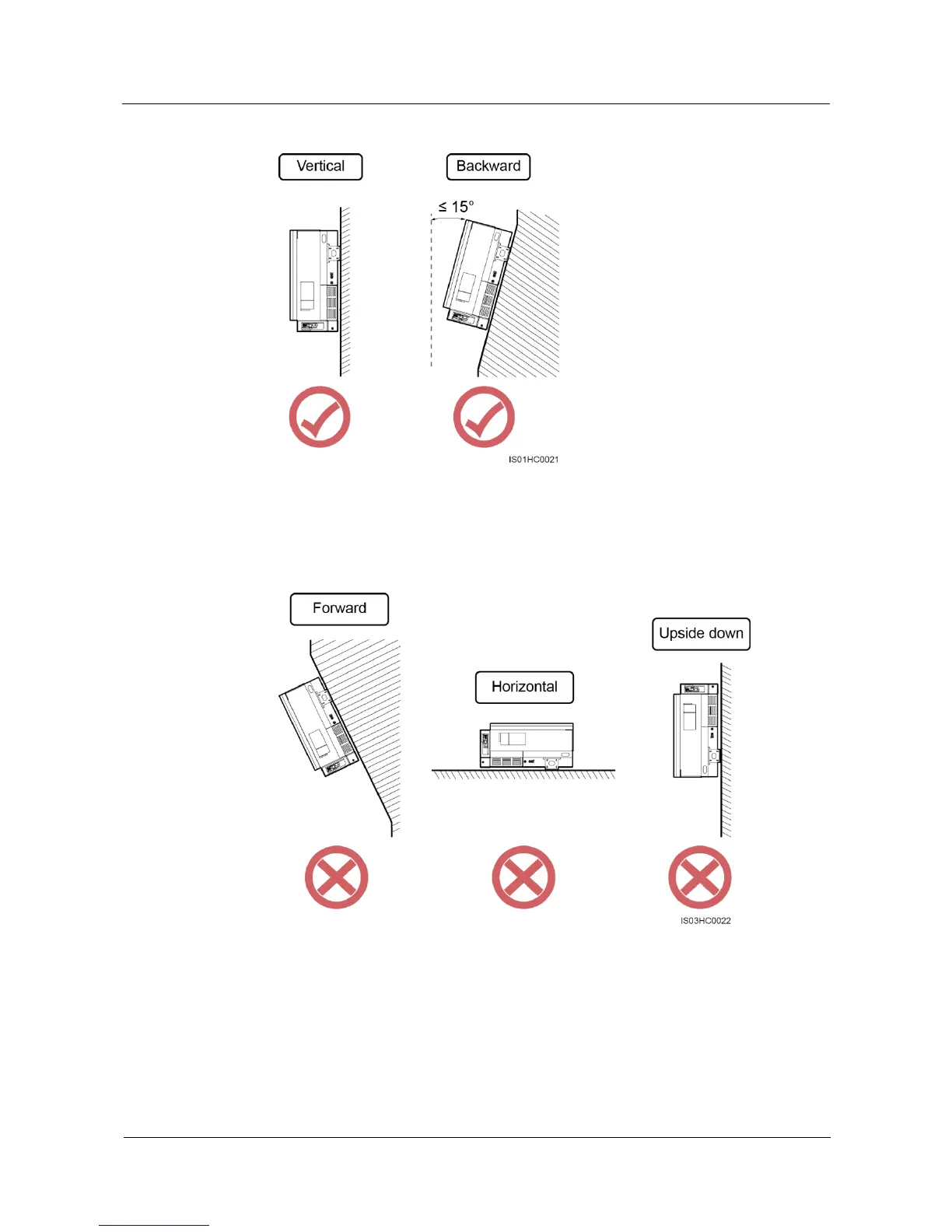

Figure 4-2 Correct installation angles

Do not install the SUN2000 at a front tilt, excessive back tilt, side tilt, horizontally, or
upside down.
Figure 4-3 Incorrect installation angles
Installation Space Requirements

The SUN2000 dimensions (W x H x D, including the mounting bracket) are 930 mm x
550 mm x 283 mm. Reserve enough clearance around the SUN2000 to ensure sufficient
space for installation and heat dissipation, as shown in Figure 4-4.

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
