Huawei SUN2000-36KTL User Manual

SUN2000-(33KTL-A, 36KTL, 42KTL)
User Manual
5 Connecting Cables
Issue 07 (2018-05-04)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
59

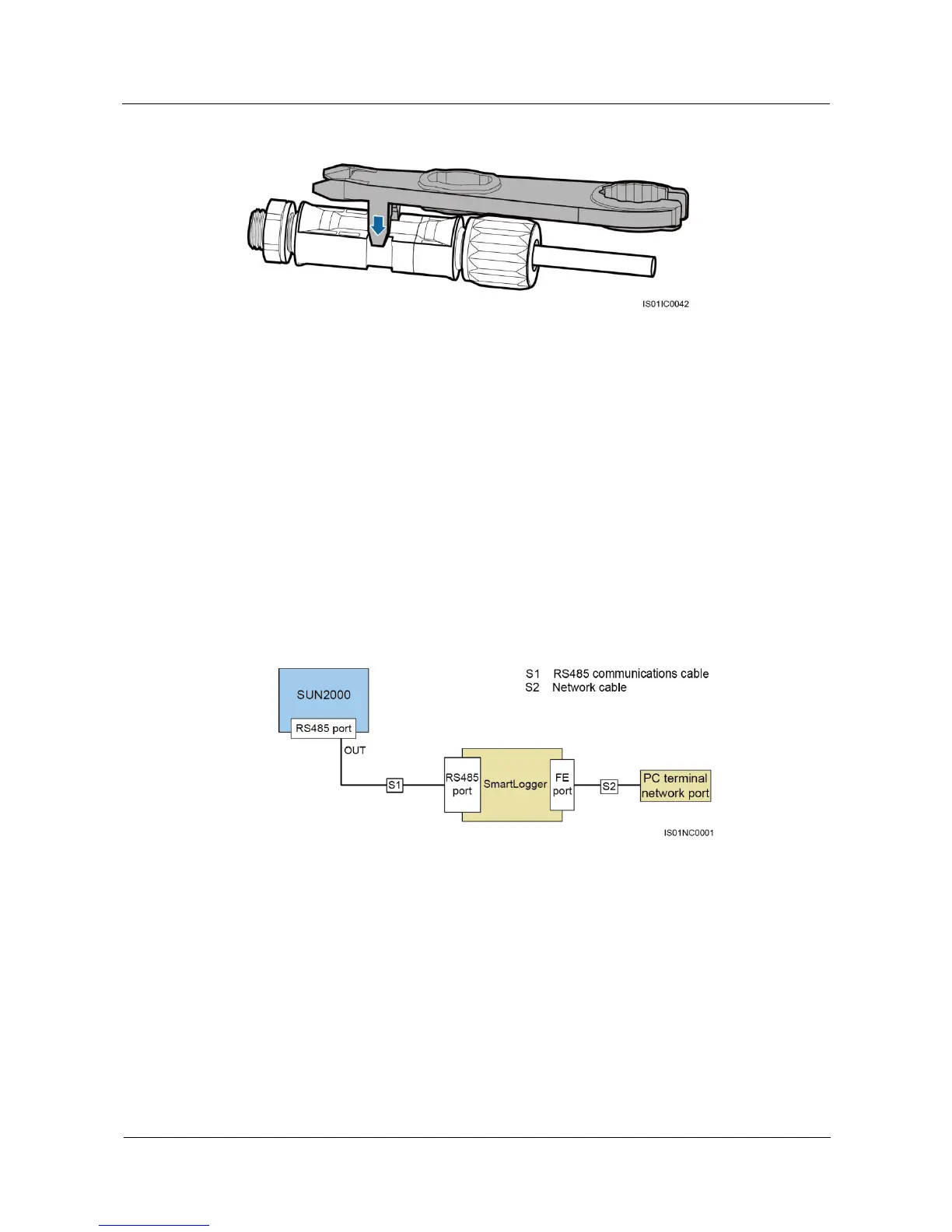

Figure 5-23 Removing a DC input connector
5.5 Connecting Communications Cables
5.5.1 Communication Mode Description
RS485 Communication
The SUN2000 can connect to the SmartLogger or to a PC through the SmartLogger to
implement RS485 communication. You can use the SUN2000 APP, embedded WebUI, or the
network management software (such as the NetEco) on the PC to query information about the
SUN2000, such as energy yield, alarms, and running status.

Figure 5-24 shows the communication mode for a single SUN2000.
Figure 5-24 Communication mode for a single SUN2000

Figure 5-25 shows the communication mode for multiple SUN2000s.
If multiple SUN2000s are used, connect all the SUN2000s in daisy chain mode over an
RS485 communications cable.

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
