22 – English

Maintenance

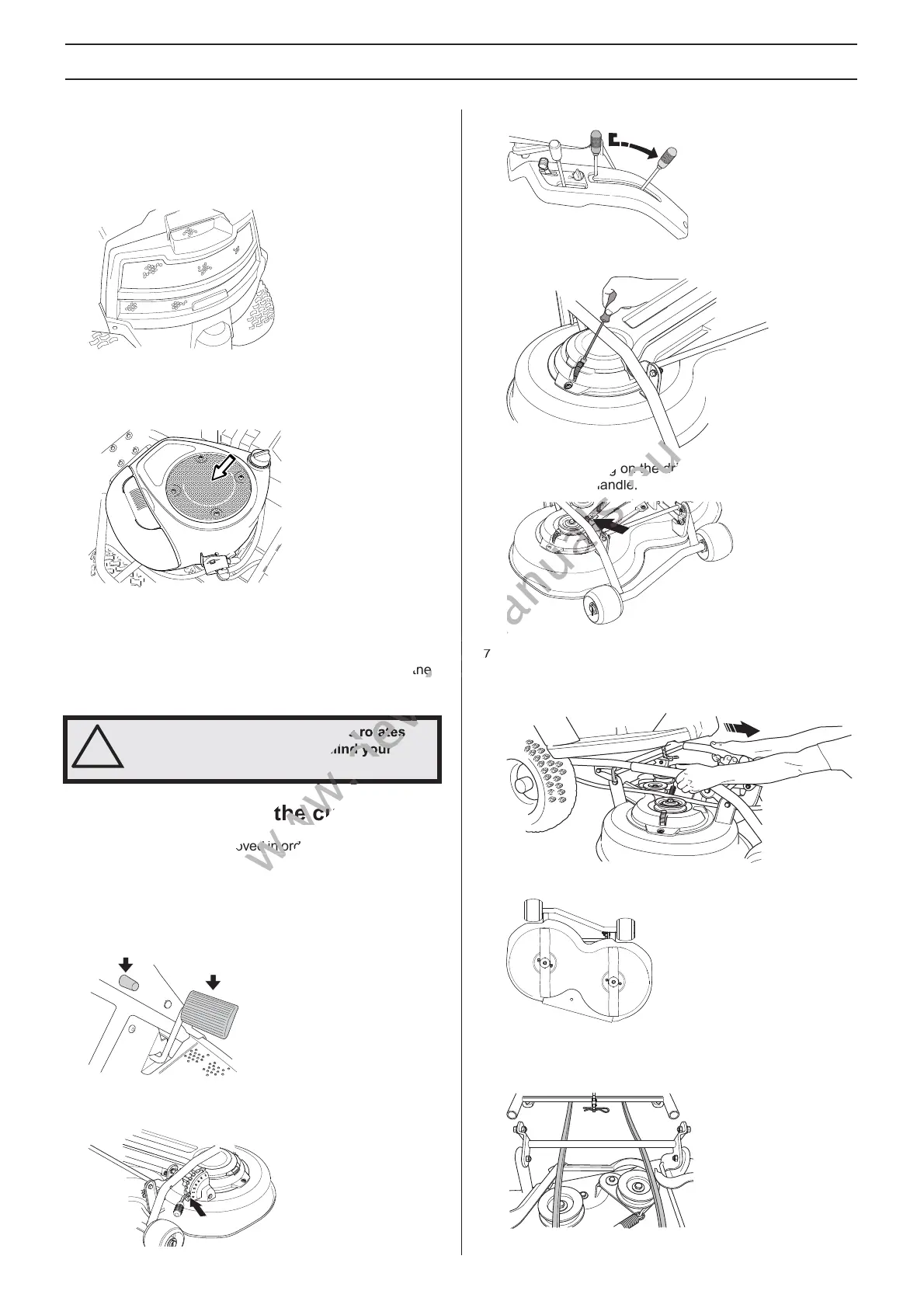

Checking the engine’s cooling air

intake

Clean the air intake grille in the engine cover behind the

driver’s seat.

Open the engine cover.

Check that the cooling intake is free from leaves, grass and

dirt.

Check the air duct, located on the inside of the engine cover,

ensure it is clean and does not rub against the cooling air

intake.

A blocked cooling intake will interfere with the cooling of the

engine, which can damage the engine.

Service position for the cutting unit

The cutting deck can be removed in order to facilitate cleaning

and servicing.

To remove the cutting deck proceed as follows:

1 Position the machine on ﬂat ground.

2 Apply and lock the parking brake.

3 Check that the lever for setting the cutting height is in the

S position.

4 Put the lifting lever in the mowing position.

5 Release the clip on the front hood and lift off the fender.

6 Loosen the spring on the drive belt’s belt idler by

loosening the handle

7 Lift of the drive belt.

8 Grab the upper pipe construction of the deck and pull it

out.

9 Lift off the deck and lean it against the machine or a wall.

Fitting the cutting head

1 Place the belt under the stay of the cutting deck.

WARNING! The cooling air intake rotates

when the engine is running. Mind your

ﬁngers.
