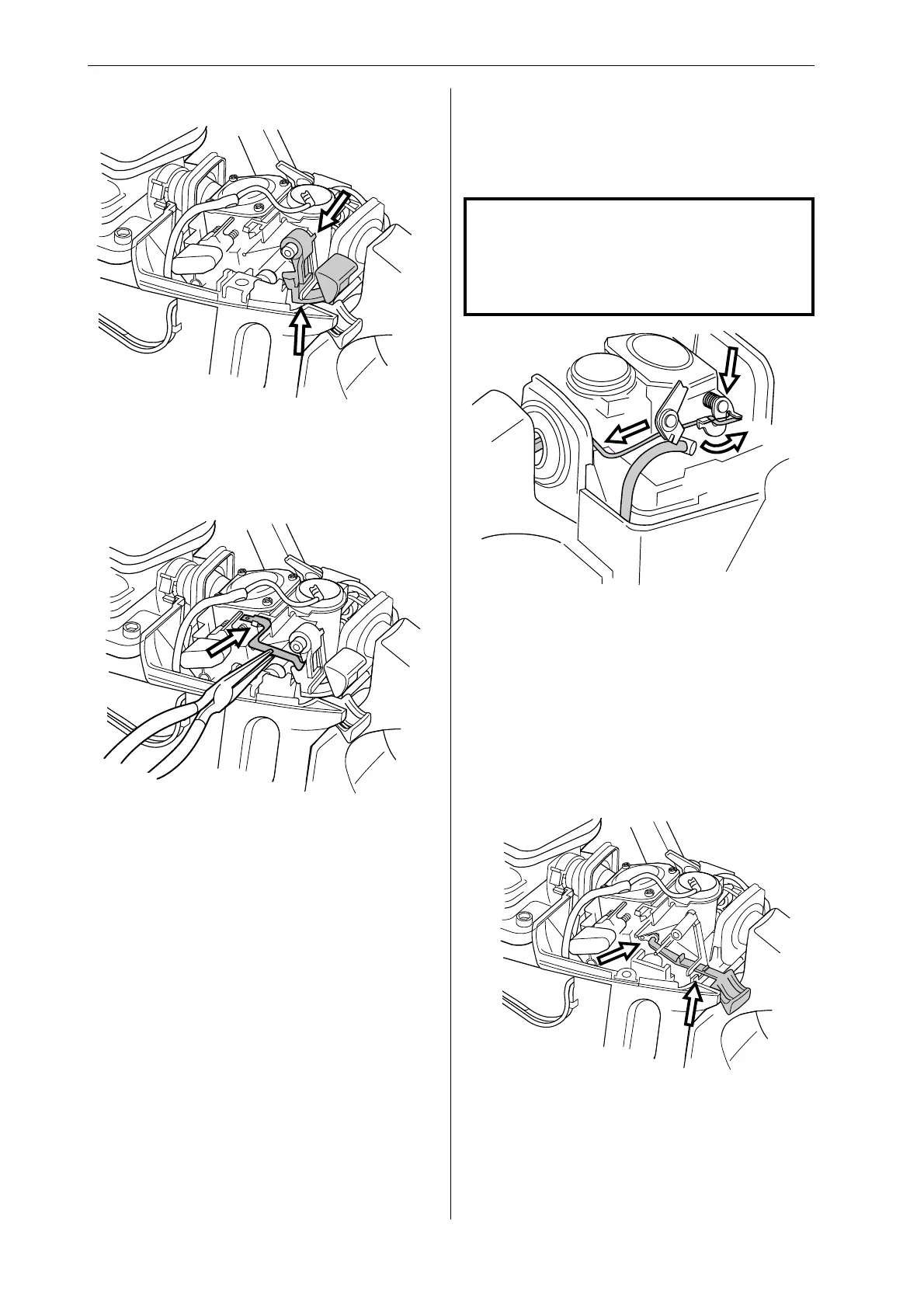

Choke control – removal
1
Remove the cylinder cover, air filter and stop
switch. Disconnect the fuel hose from the carburet-
tor.
Stop switch – refitting
1
Carefully press the new stop switch into place.
Check that the switch’s upper mounting clips over
the air filter holder.
2
Refit the stop plate. Engage the stop plate in the
front slot first then lift the rear edge onto the stop
switch. Slide the stop plate in as far as it will go.
3
Refit:
• the leads to the stop plate and stop switch
• air filter
• cylinder
Disconnect the pushrod from the carburettor by first
carefully prising up the spring over the end of the
rod, where it connects to the throttle lever (A). Then
press the throttle lever forwards (B) while pressing
the throttle pushrod backwards (C) and lifting it off
the lever. Withdraw the throttle pushrod from the
tank and lift it upwards without pulling it through the
rubber inlet manifold. Carefully release the carbu-
rettor assembly from the right-hand rubber mount-
ing and lift it upwards.
NOTE!
Do not use knurled pliers to disconnect or
reconnect the fuel hose. This could
damage the hose and lead to leakage or
fracture.
Compress the clip that holds the choke control to
the carburettor while pulling it out at the same time.
Disconnect the choke control from the air filter
holder.
3
2
C
A
B
