English – 45
Repair instructions
Crankcase and crankshaft –
dismantling 346XP, 351, 353
1
Remove the following:
• guide bar and chain
• clutch cover
• cylinder cover
• starter assembly*
• ignition system*
• generator*
• centrifugal clutch*
• oil pump*
• bark rest
• chain tensioner
• throttle pushrod
• carburettor*
• carburettor base
• silencer*
• piston and cylinder*
• fuel tank*
* See special instructions.
NOTE!
Take care to prevent dirt or foreign parti-
cles getting into the bearings.
2

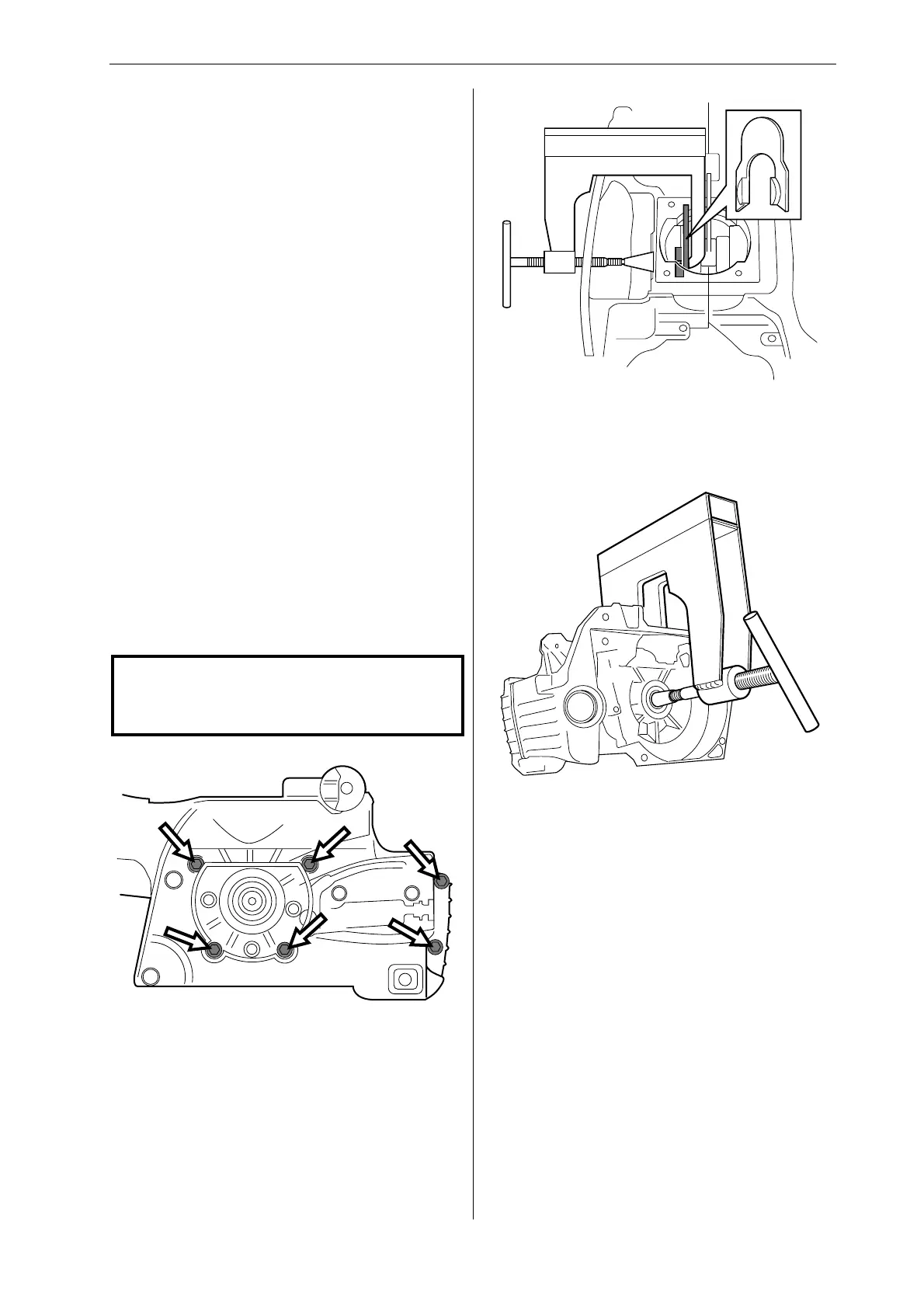

Unscrew the 6 bolts that hold the crankcase
together.
3
Split the crankcase with the aid of tool 502 51 61-
01 (A) and stop plate 502 54 18-01 (B), working
from the flywheel side of the saw.
4
Press the crankshaft out of the flywheel side of the
crankcase using tool 502 51 61-01.
5
Do the same on the clutch side without using stop
plate 502 54 18-01.
