Repair instructions

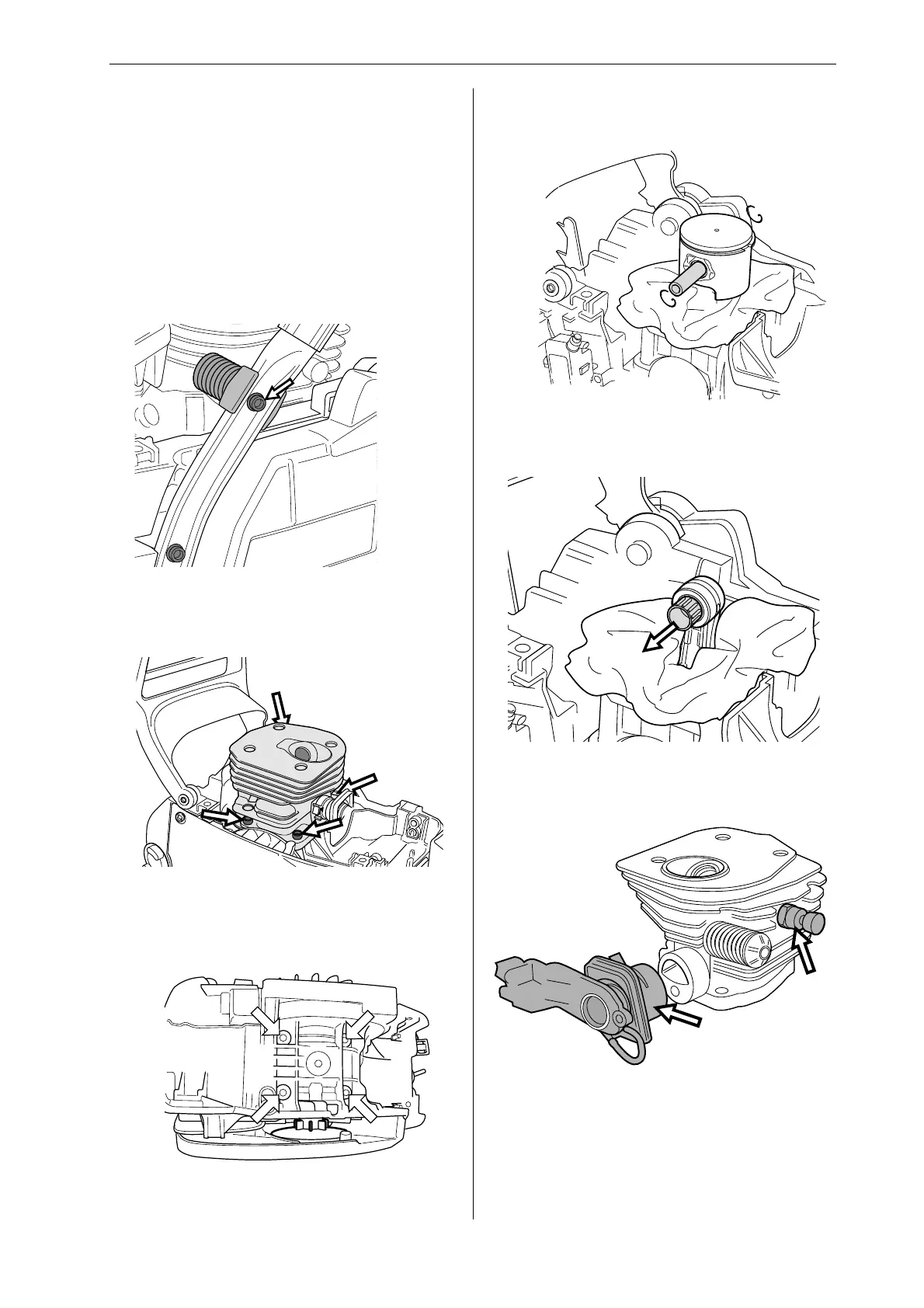

Undo the four cylinder bolts and lift the cylinder off
carefully.
Models 340, 345
Piston and cylinder – removal
1
Remove:
• cylinder cover
• carburettor (see “Carburettor – removal”)
• silencer
• spark plug
• fuel tank (applies to 340, 345)
2
Unbolt the vibration damping spring from the hand
grip.
3
Undo the four cylinder bolts from the underside
and lift the cylinder off carefully.
Remove the circlips from the ends of the gudgeon
pin and press it out. Then lift off the piston.
6
If replacing the cylinder:
Unscrew the decompression valve. Remove the
intake system, see “Air intake system – removal”.
Remove the bearing from the little end of the
connecting rod.
7
4
Cover the opening in the crankcase.
5
