Husqvarna LC 48 User Manual

Spanish – 27

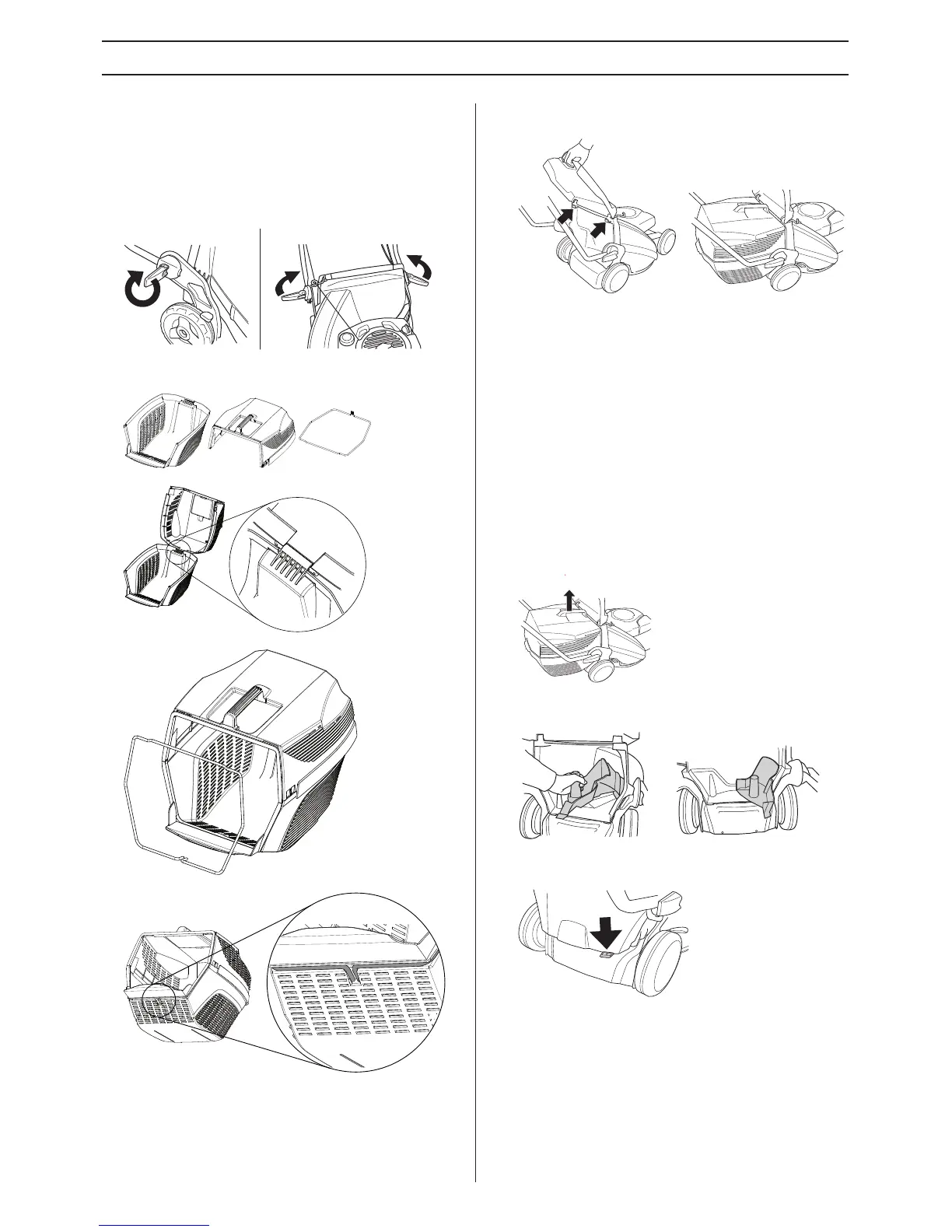

MONTAJE
Montaje del manillar
Al abatir el manillar proceda con cuidado para no dañar los
cables.
Levante el manillar hasta que la estructura de tubo superior
del mismo quede frente a la parte inferior. Apriete bien la
manija.
Montaje del recogedor
• Levante la protección trasera y cuelgue el recipiente para
la hierba.
Expulsión lateral
• Los modelos LB48 y LB48V pueden utilizarse con
expulsión lateral, montando el expulsor lateral en la
cubierta de corte.
• Levante la cubierta lateral y coloque el expulsor lateral
sobre el eje.
Función de trituradora
Los modelos de cortacésped LB48 y LB48V tienen una
función de trituradora.
En las máquinas equipadas con un recogedor, puede usarse
la función de triturar de la siguiente manera:
• Levante la protección posterior y extraiga el recipiente.
• introduzca el enchufe de trituradora en el canal del
colector.
• Cierre la protección y asegúrese de que está cerrada con
el enchufe de trituradora.
