Husqvarna LC 48 User Manual

Italian – 61

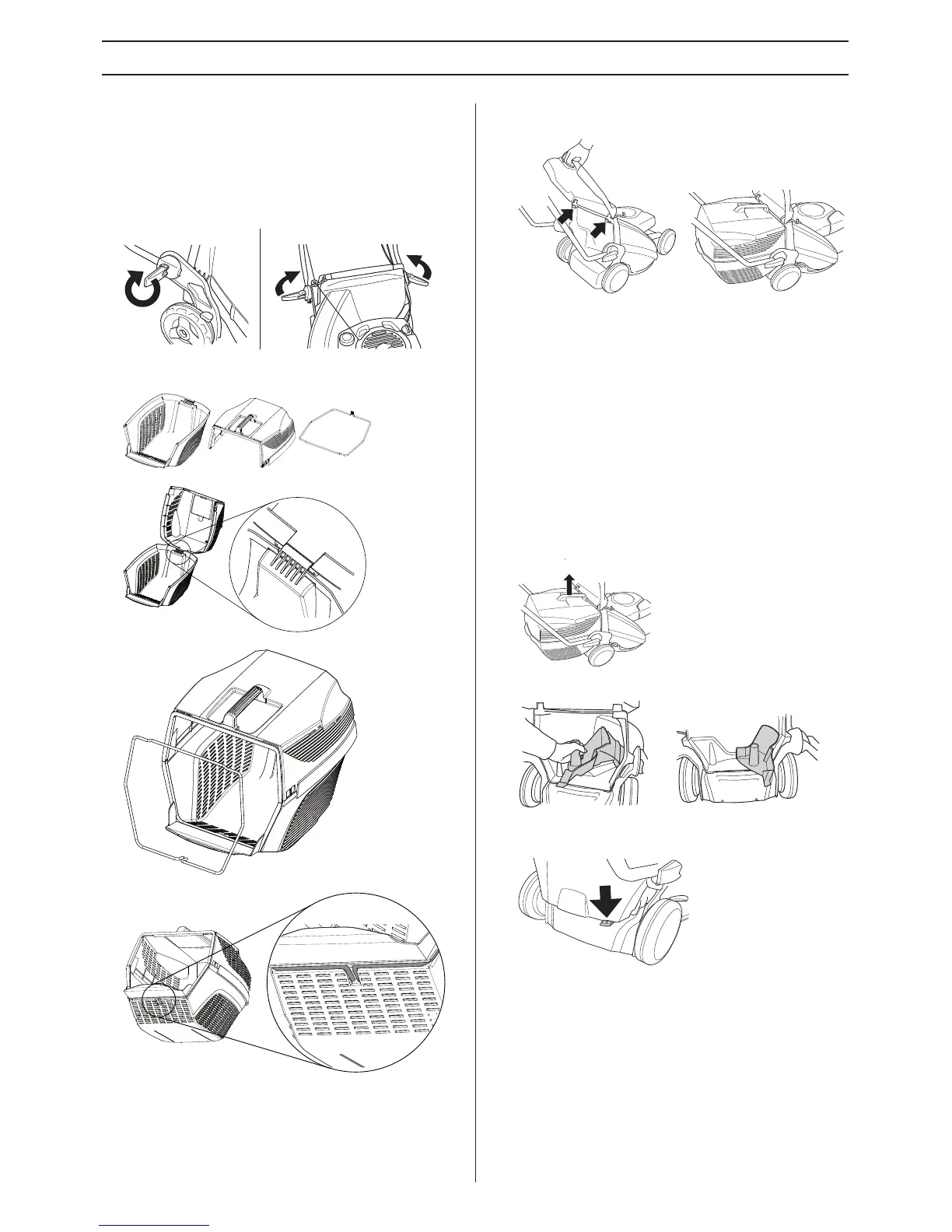

MONTAGGIO
Montaggio del manubrio
Richiudendo il manubrio, fare attenzione a a non danneggiare
cavi e fili.
Sollevare il manubrio fino a quando la sua sezione tubolare
superiore si trova di fronte alla sezione inferiore. Avvitare
adeguatamente la manopola.
Montaggio del collettore
• Sollevare lo schermo posteriore e appendere il
contenitore per l’erba.
Espulsione laterale
• LB48 e LB48V possono essere utilizzati con espulsione
laterale inserendo l’eiettore laterale sul coperchio di taglio.
• Sollevare il coperchio laterale e collocare l’eiettore
laterale sull’albero.
Funzione di pacciamatura
LB48, LB48V è un tosaerba con funzione di pacciamatura.
I dispositivi dotati di recettore possono essere utilizzati con
funzione di pacciamatura nel seguente modo.
• Sollevare lo schermo posteriore e rimuovere il
contenitore.
• Inserire il tassello di pacciamatura nel canale di raccolta.
• Chiudere lo schermo e verificare che sia bloccato insieme
al tassello di pacciamatura.

Husqvarna LC 48 Specifications

General

Engine Manufacturer	Briggs & Stratton
Deck Material	Steel
Mulching Capability	Yes
Bagging Capability	Yes
Cutting Height, min-max	1.5 - 4 inches
Cutting Height	1.5 - 4 inches

Summary

Key to Symbols

Explanation of Safety Symbols

Details warning, prohibition, and mandatory safety symbols with their meanings.

Rating Plate Information

Describes the information presented on the machine's rating plate for identification.

Steps Before Using a New Lawn Mower

Pre-Operation Checks and Warnings

Outlines essential pre-operation checks and critical safety warnings for new users.

What is What? (LC Models)

Component Identification for LC 48, LC 48V, LC 48VE

Illustrates and labels the components of the LC 48, LC 48V, and LC 48VE lawn mower models.

What is What? (LB Models)

Component Identification for LB 48, LB 48V

Illustrates and labels the components of the LB 48 and LB 48V lawn mower models.
