32 – English
Maintenance

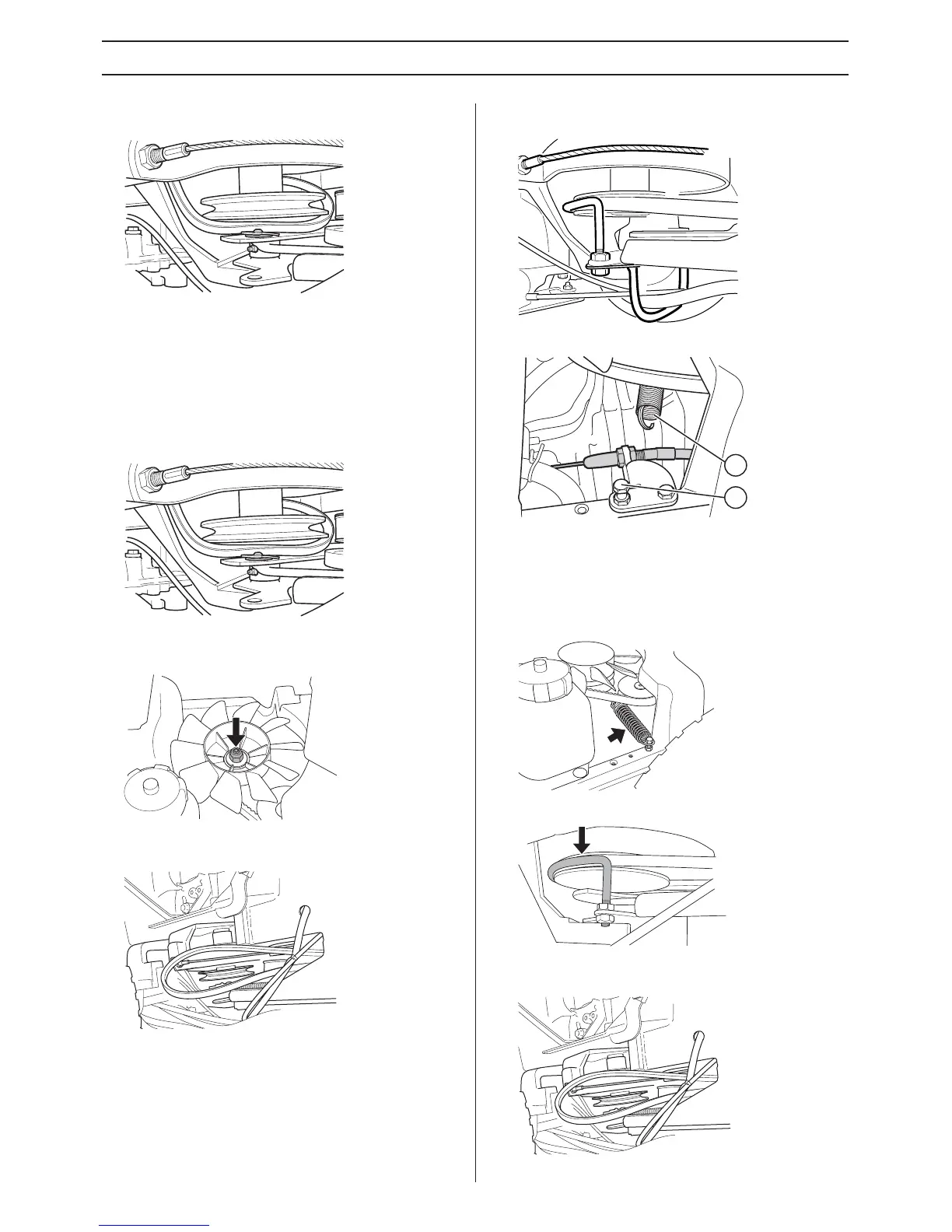

8 Pull the belt off of the engine's pulley and move it under
the engine belt pulleys.
9 Pull out the belt through the opening under the pivot
bearing and past the belt tensioner's disc.
Assembly
1 Pull the belt through the opening under the pivot bearing
and on the outside past the belt tensioner's disc.
2 Pull the belt under the engine belt pulleys and fit it on the
engine belt pulley.
3 Fit the belt on the hydrostatic transmission pulley.
4 Fit the cooling fan.
5 Check that the centre belt is fitted correctly on its front
pulley and fit the centre belt on the engine's pulley.
6 Fit the hose holder in the middle and the belt guide for the
centre belt.
Refit the spring (A).
Replacing the hydraulic pump's
drive belt PR 17 AWD and PF 21 AWD
1 Remove the transmission cover.
2 Unhook the spring on the belt tensioner
3 Remove the belt guide for the centre belt.
4 Pull off the centre belt from the engine's pulley and pull out
the rear section.
