SERVICE WORK ON THE CHASSIS 12
121
F00596-10
– Raise the motorcycle with the rear lifting gear. ( p. 101)
Info
The check is also possible when the motorcycle is
resting on the side stand.
– Shift the transmission to neutral position.
–

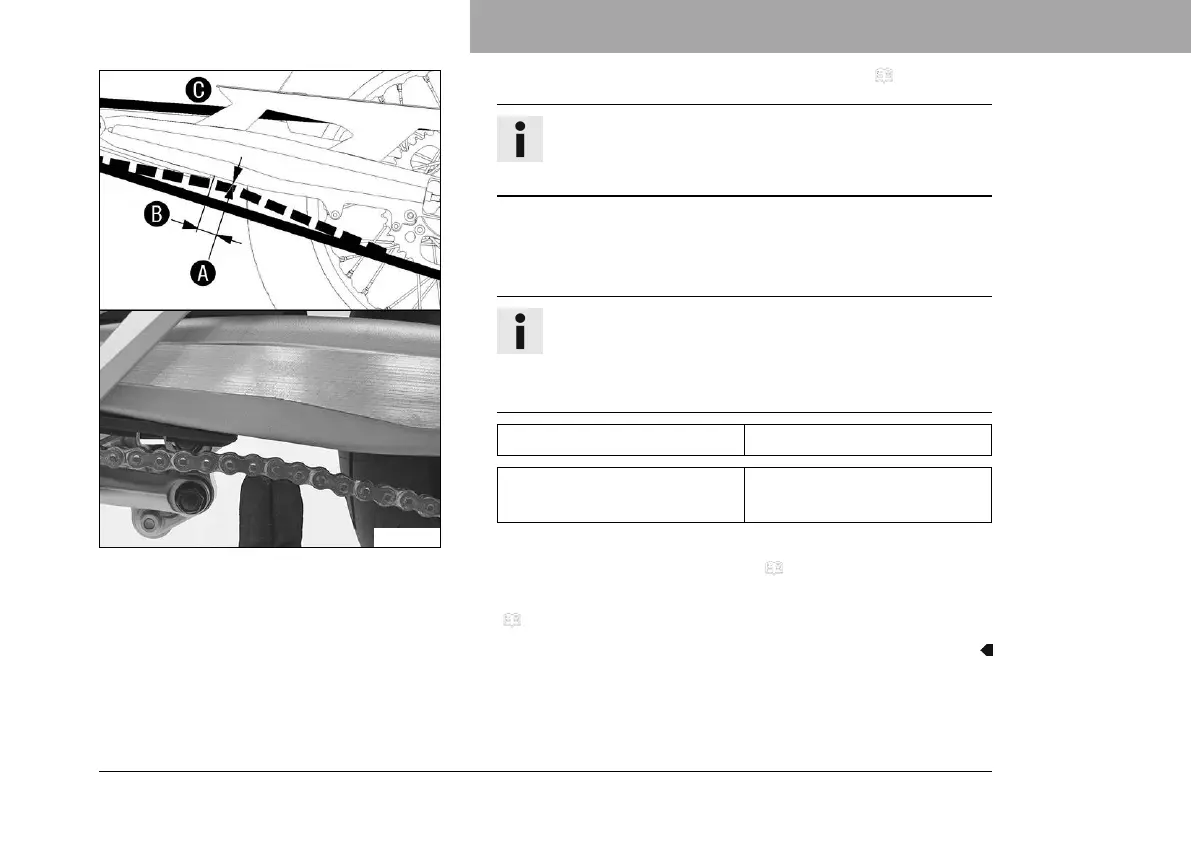

Push the chain upward at a distance
B
from the chain slid-
ing guard and determine chain tension
A
.
Info
The top part of chain
C
must be taut.
Chain wear is not always even. Repeat this measure-
ment at different chain positions.
Chain tension
A
5 mm (0.2 in)
Distance
B
to chain sliding
guard
30 mm (1.18 in)
» If the chain tension does not meet the specification:
– Adjust the chain tension. ( p. 122)
–
Remove the rear of the motorcycle from the wheel stand.
( p. 102)
