SERVICE WORK ON THE CHASSIS 12
123
H00406-10
Main work
–
Loosen nut
1
.
–
Remove nuts
2
on the left and right.
–

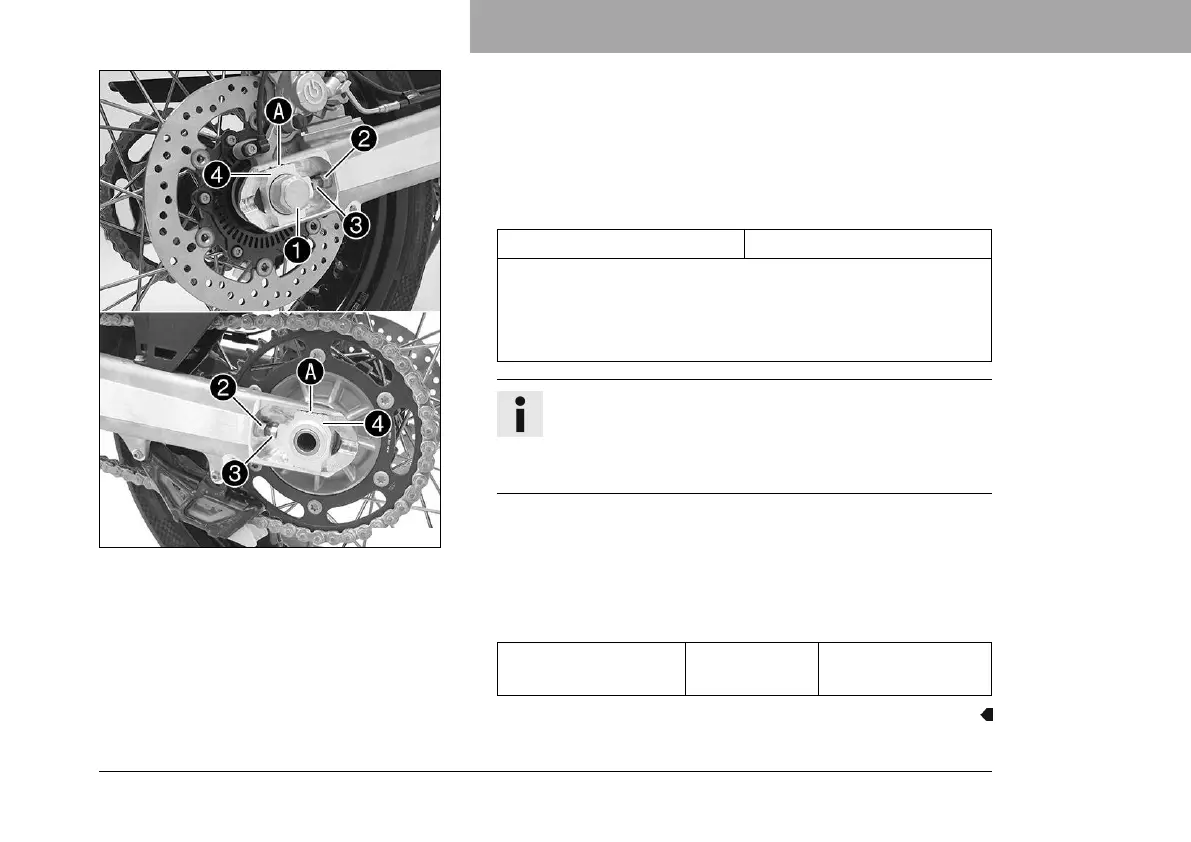

Adjust the chain tension by turning adjusting screws
3
left
and right.
Guideline
Chain tension 5 mm (0.2 in)
Turn the adjusting screws
3
on the left and right so that
the markings on the left and right chain adjusters
4
are in
the same position relative to the reference marks
A
. The
rear wheel is then correctly aligned.
Info
The top chain section must be taut.
Chain wear is not always even. Repeat this measure-
ment at different chain positions.
–
Tighten nuts
2
.
–
Make sure that chain adjusters
4
are fitted correctly on
adjusting screws
3
.
–
Tighten nut
1
.
Guideline
Nut, rear wheel spin-
dle
M25x1.5 90 Nm (66.4 lbf ft)
