WHEELS, TIRES 14

171

400694-01

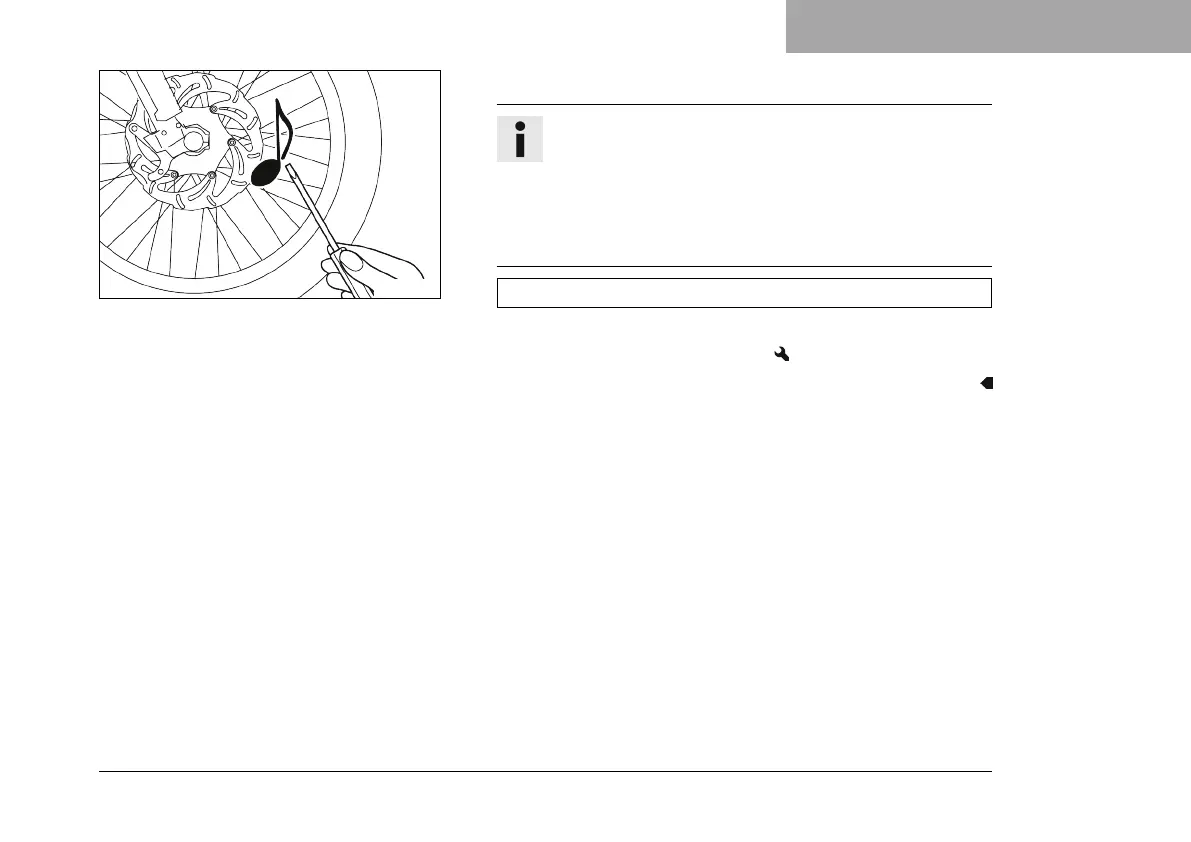

– Strike each spoke briefly using a screwdriver blade.

Info

The frequency of the sound depends on the spoke

length and spoke diameter.

If you hear different tone frequencies from different

spokes of equal length and diameter, this is an indica-

tion of different spoke tensions.

You should hear a high note.

» If the spoke tension differs:

– Correct the spoke tension.

Default Chapter5
- Table of Contents5
1 Means of Representation 111
- Symbols Used11
- Formats Used12
2 Safety Advice 213
- Use Definition - Intended Use13
- Misuse13
- Degrees of Risk and Symbols14
- Tampering Warning15
- Safe Operation16
- Protective Clothing17
- Work Rules17
- Environment18
- Owner's Manual18
3 Important Notes20
- Manufacturer Warranty, Implied Warranty20
- Fuel, Auxiliary Substances20
- Spare Parts, Accessories20
- Service21
- Figures21
- Customer Service21
4 View of Vehicle22
- View of Vehicle, Front Left (Example)22
- View of Vehicle, Rear Right (Example)24
5 Serial Numbers26
- Vehicle Identification Number26
- Type Label27
- Key Number28
- Engine Number28
- Fork Part Number29
- Shock Absorber Article Number29
6 Controls30
- Clutch Lever30
- Hand Brake Lever30
- Throttle Grip31
- Horn Button31
- Light Switch32
- Turn Signal Switch32
- Emergency off Switch33
- Start Button34
- Combination Switch34
- Ignition and Steering Lock36
- Overview of Indicator Lights37
- Seat Release39
- Grab Handles39
- Passenger Foot Pegs40
- Shift Lever40
- Foot Brake Lever41
- Side Stand42
- Opening Fuel Tank Filler Cap43
- Closing the Fuel Tank Filler Cap45
7 Dash46
- Overview46
- Activation and Test46
- Setting the Combination Instrument47
- Setting Kilometers or Miles48
- Setting the Clock49
- Setting the Service Interval50
- Distance 151
- Distance 252
- Average Speed 153
- Average Speed 253
- Riding Time 154
- Riding Time 255
- Service Hour Counter55
- Clock56
- Service Interval Display56
- Tachometer57
- Odometer58
- Gear Display59
- Service Display59
- Distance Fuel Reserve60
8 Preparing for Use 861
- Advice on Preparing for First Use61
- Running in the Engine63
- Loading the Vehicle64
9 Riding Instructions 967
- Checks and Maintenance Measures When Preparing for Use67
- Starting the Vehicle68
- Starting off70
- Shifting, Riding70
- Easy Shift76
- Motorcycle Traction Control77
- Braking78
- Stopping, Parking80
- Transport82
- Refueling83
10 Service Schedule86
- Additional Information86
- Required Work86
- Recommended Work89
11 Tuning the Chassis90
- Fork/Shock Absorber90
- Adjusting the Compression Damping of the Fork90
- Adjusting the Rebound Damping of the Fork92
- Compression Damping of the Shock Absorber93
- Adjusting the Low-Speed Compression Damping of the Shock Absorber94
- Adjusting the High-Speed Compression Damping of the Shock Absorber95
- Adjusting the Rebound Damping of the Shock Absorber97
- Handlebar Position98
- Adjusting the Handlebar Position99
12 Service Work on the Chassis102
- Raising the Motorcycle with a Lift Stand102
- Removing the Motorcycle from the Lift Stand102
- Raising the Motorcycle with the Rear Lifting Gear103
- Removing the Rear of the Motorcycle from the Wheel Stand104
- Lifting the Motorcycle with the Front Lifting Gear105
- Taking the Motorcycle off the Front Lifting Gear106
- Cleaning the Dust Boots of the Fork Legs107
- Removing the Fork Protector109
- Installing the Fork Protector109
- Bleeding the Fork Legs110
- Removing the Seat111
- Mounting the Seat111
- Removing the Tool Set112
- Storing Tool Set113
- Take off the Side Cover114
- Mounting the Side Cover115
- Removing Front Fender115
13 Brake System136
- Anti-Lock Braking System (ABS)136
- Adjusting the Basic Position of the Hand Brake Lever139
- Checking the Brake Discs140
- Checking the Front Brake Fluid Level141
- Adding Front Brake Fluid142
- Checking the Front Brake Linings145
- Checking the Free Travel of Foot Brake Lever146
- Adjusting the Basic Position of the Foot Brake Lever147
- Checking the Rear Brake Fluid Level149
- Adding Rear Brake Fluid150
- Checking the Rear Brake Linings152
14 Wheels, Tires154
- Removing the Front Wheel154
- Installing the Front Wheel156
- Removing the Rear Wheel159
- Installing the Rear Wheel161
- Checking the Rear Hub Damping Rubber Pieces165
- Checking the Tire Condition167
- Tubeless Tire System170
- Checking Tire Pressure171
- Checking Spoke Tension172
- Using Tire Repair Spray174
15 Electrical System 15175
- Removing the 12-V Battery175
- Installing the 12-V Battery177
- Charging the 12-V Battery179
- Changing the Main Fuse181
- Changing the ABS Fuses184
- Changing the Fuses of Individual Electrical Power Consumers186
- Removing the Headlight Mask with the Headlight189
- Installing the Headlight Mask with the Headlight190
- Changing the Headlight Bulb191
- Changing the Parking Light Bulb193
- Checking the Headlight Setting194
- Adjusting the Headlight Range195
- ACC1 and ACC2196
- Diagnostics Connector196
16 Cooling System 16197
- Checking the Antifreeze and Coolant Level198
- Checking the Coolant Level200
- Draining the Coolant202
- Filling/Bleeding the Cooling System203
- Changing the Coolant206
17 Tuning the Engine210
- Changing the Riding Mode210
- Adjusting Traction Control211
- Checking the Basic Position of the Shift Lever212
- Adjusting the Basic Position of the Shift Lever213
18 Service Work on the Engine214
- Changing the Fuel Screen214
- Checking the Engine Oil Level216
- Changing the Engine Oil and Oil Filter, Cleaning the Oil Screens217
- Adding Engine Oil225
19 Cleaning, Care228
- Cleaning the Motorcycle228
- Checks and Maintenance Steps for Winter Operation231
20 Storage 20233
- Preparing for Use after Storage236
21 Troubleshooting 21237
22 Technical Data 22241
- Engine241
- Engine Tightening Torques243
- Capacities248
- Engine Oil248
- Coolant249
- Fuel249
- Chassis249
- Electrical System251
- Tires252
- Fork252
- Shock Absorber253
- Chassis Tightening Torques255
23 Substances262
24 Auxiliary Substances 24265
25 Standards 25267
26 Index of Special Terms268
27 List of Abbreviations 27269
28 List of Symbols270
- Red Symbols270
- Yellow and Orange Symbols270
- Green and Blue Symbols271
- Index272
