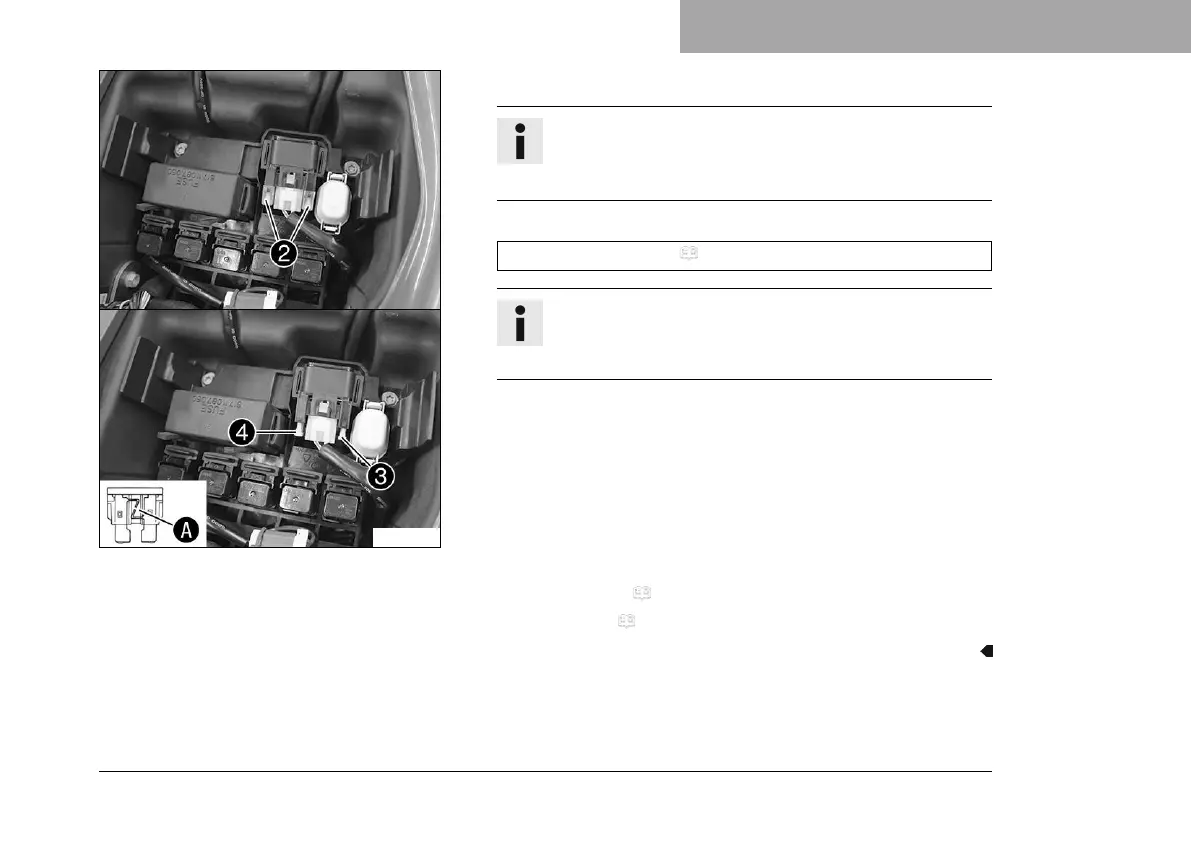

ELECTRICAL SYSTEM 15

181

S04580-10

–

Remove a defective main fuse

with needle nose pliers.

Info

A faulty fuse has a burned-out fuse wire

A spare fuse

is located in the starter relay.

– Insert a new main fuse.

Fuse (58011109130) ( p. 249)

Info

Insert a new spare fuse into the starter relay to have it

available when needed.

– Check that the electrical system is functioning properly.

– Mount the protection caps.

– Position the engine electronics control unit.

Finishing work

– Mount the seat. ( p. 109)

– Set the clock. ( p. 47)
