16 COOLING SYSTEM

206

K00402-10

–

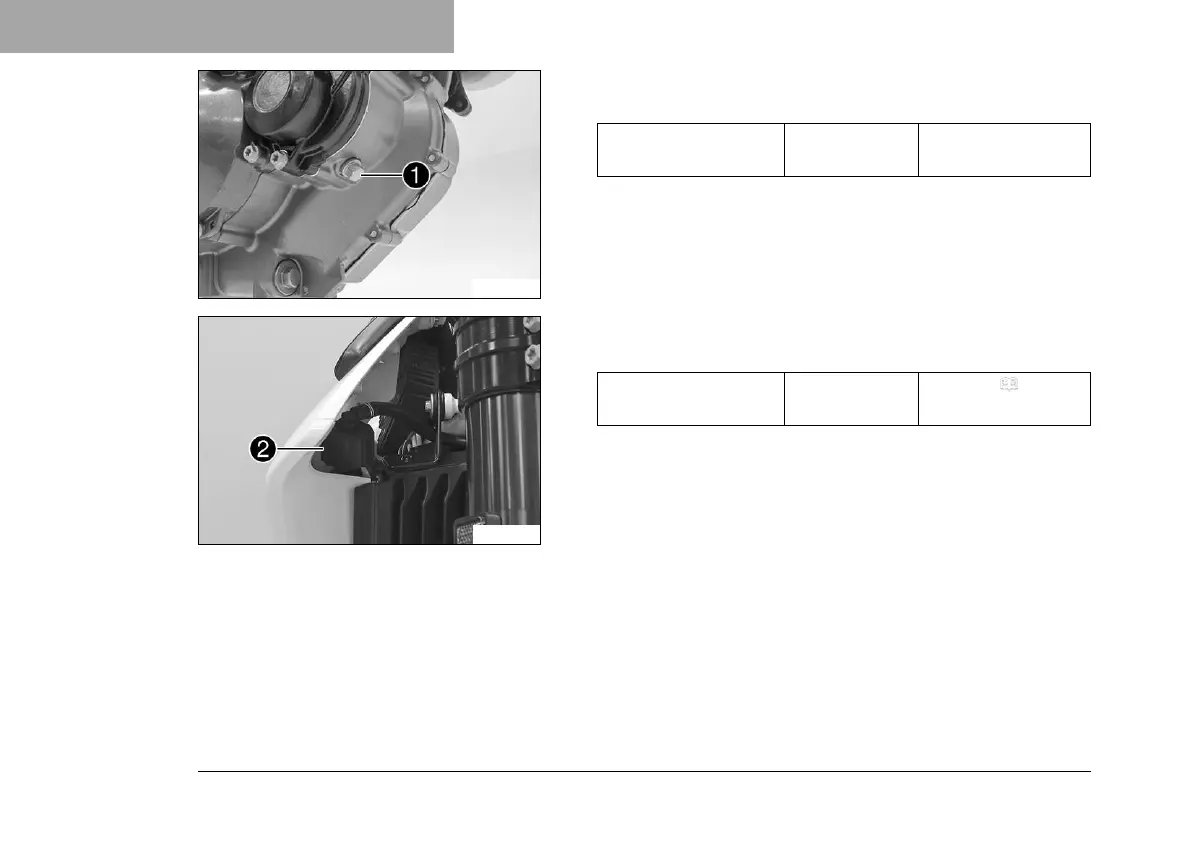

Mount and tighten screw

with a new seal ring.

Guideline

Screw plug, water

pump drain hole

M10x1 15 Nm (11.1 lbf ft)

F00606-11

– Stand the motorcycle on a level surface using the side stand.

– Refill with coolant.

Coolant 1.20 l

(1.27 qt.)

Coolant ( p. 260)

– Completely fill the radiator with coolant.

–

Mount radiator cap
