18 SERVICE WORK ON THE ENGINE

222

F00589-10

–

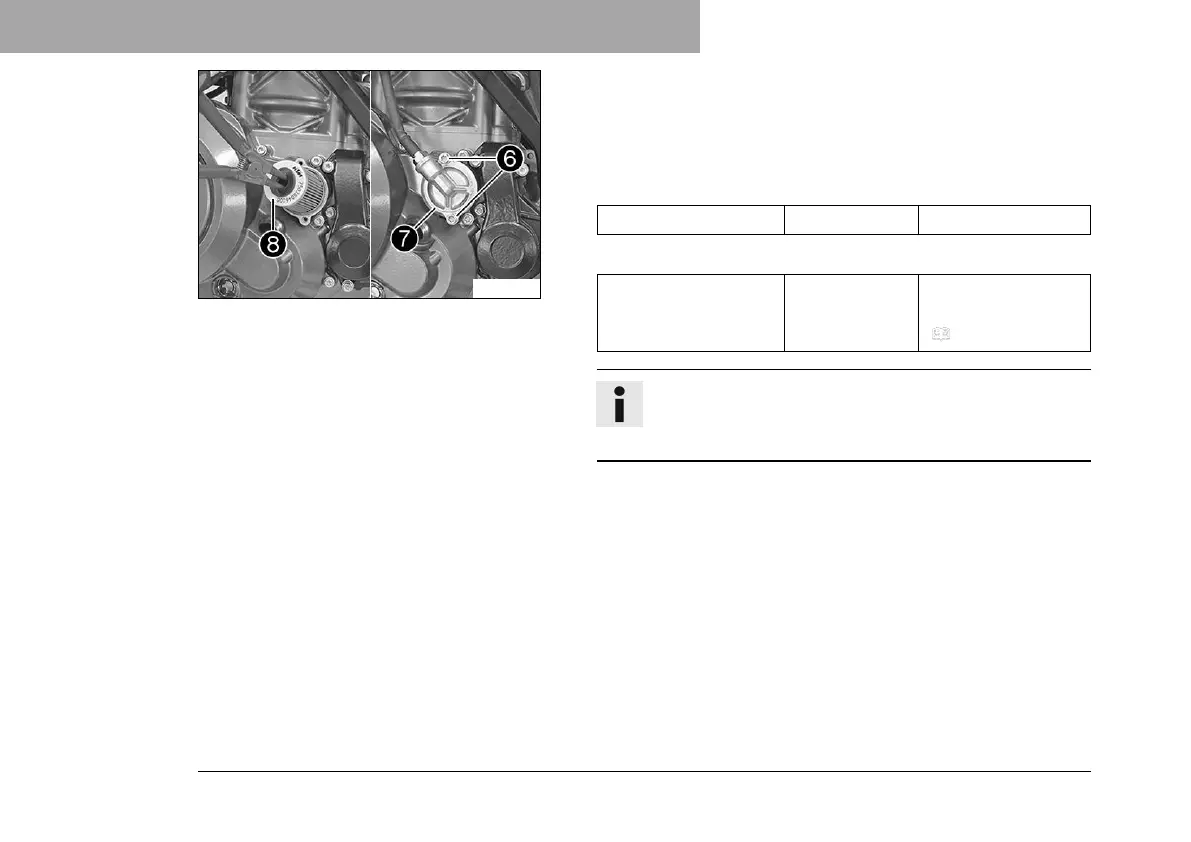

Insert new oil filter

– Lubricate the O-ring of the oil filter cover. Position oil filter

cover

–

Mount and tighten screws

Guideline

Screw, oil filter cover M5 6 Nm (4.4 lbf ft)

– Fill up with engine oil at the clutch cover.

Engine oil 1.70 l (1.8 qt.) Engine oil

(SAE 10W/50)

( p. 261)

Info

Too little engine oil or poor-quality engine oil will result

in premature wear of the engine.
