HUSTLER Super Mini Z Parts Manual

302620 8/06 6-5

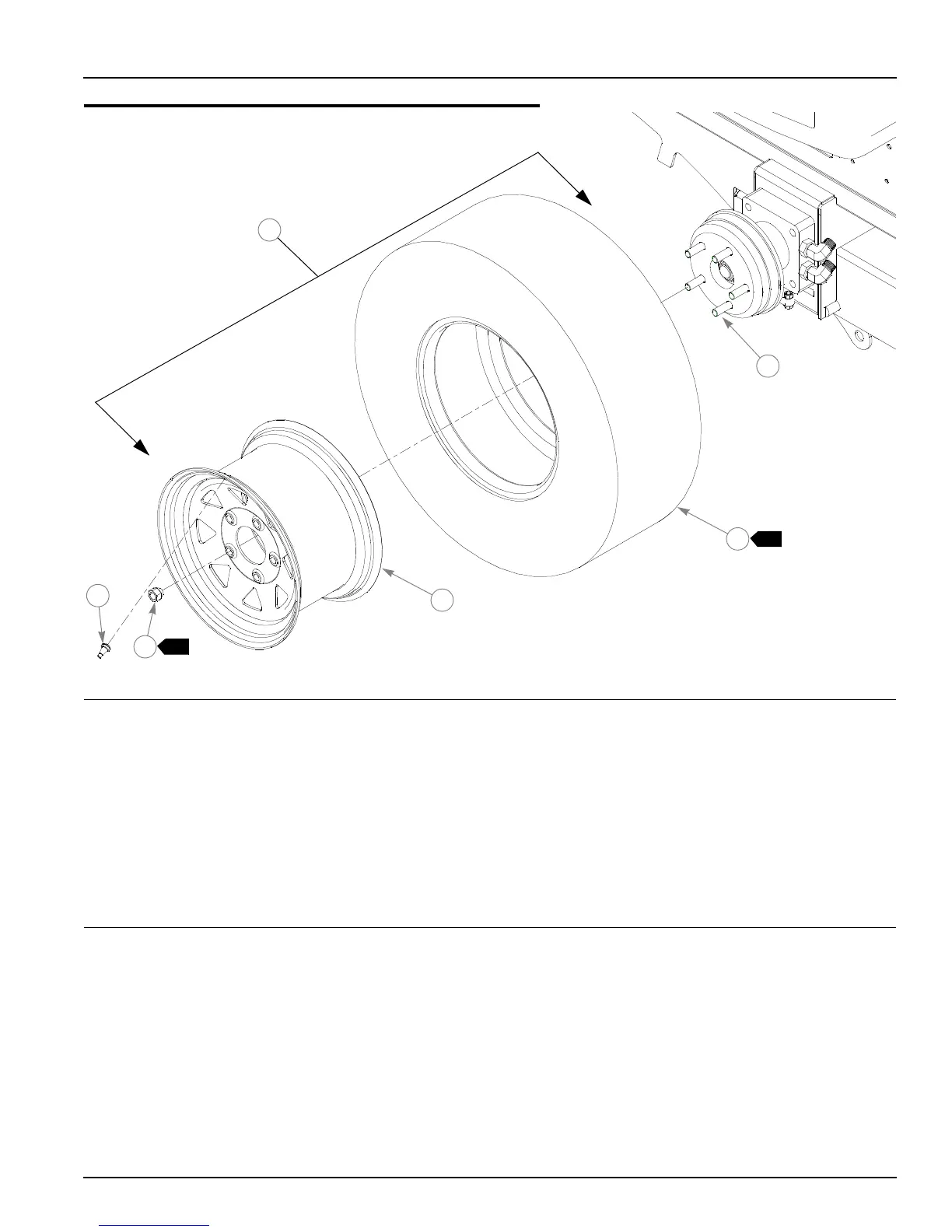

Drive Wheel Assembly/Installation
NOTES:
1. Torque to 65-75 ft. lbs.
2. Inflate tire to 8-10 psi.
INDEX NO.
SERVICE
PART NO.
MFG. PART
NO.
QTY DESCRIPTION
1 782078 782078 2 WHEEL/TIRE ASSEMBLY 23 X 9.50
2 782284 N/A TIRE 23 X 9.50-12
3 782086 N/A WHEEL 10 X 7.5
4 019521 N/A TIRE VALVE
5 061077 061077 5 WHEEL NUT (QTY PER WHEEL)
6 770859 N/A 5 1/2" WHEEL LUG STUD (QTY PER WHEEL)
1
1
2
3
6
2
4
5
