HUSTLER Super Mini Z Parts Manual

302620 8/06 2-3

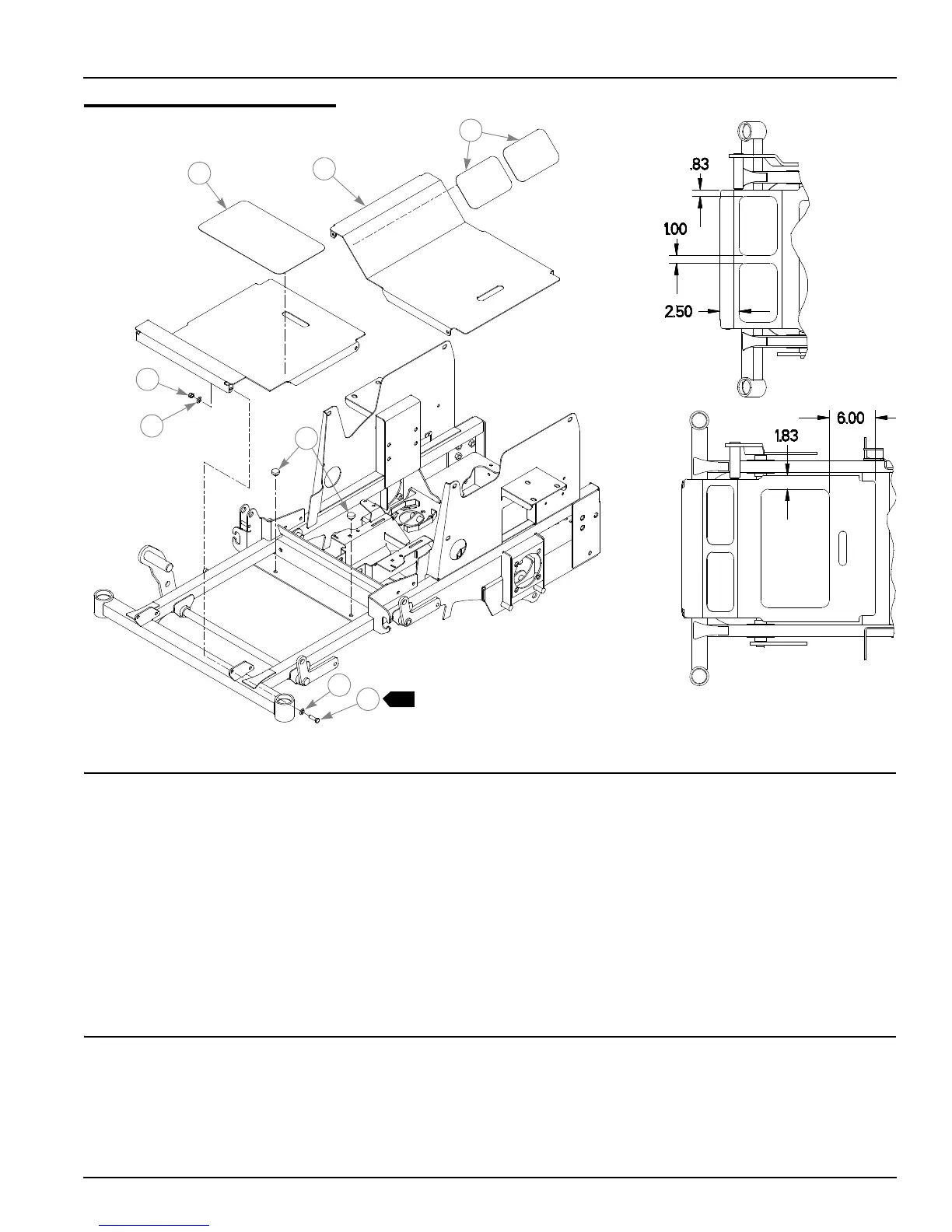

Footrest Assembly
NOTES:
1. Do not tighten, Item 1 ( 388884 Mini Z Floor Plate) must be able to pivot
on these bolts.
INDEX
NO.
SERVICE
PART NO.
MFG. PART
NO.
QTY. DESCRIPTION
1 388884 388884 1 MINI Z FLOOR PLATE
2 785485 785485 2 UPPER STEP TREAD
3 785493 785493 1 LOWER STEP TREAD
4 086660 086660 2 NT .375-16 HX LK NY
5 767954 767954 4 FW .406 X .812 X .060 SAE HD ZN
6 781880 781880 2 RUBBER BUMPER
7 052860 052860 2 CS .375-16 X 1.25 HX G5 ZNYC
1
1
3
2
6
5
4
5
7
