REV F 4-14 604345

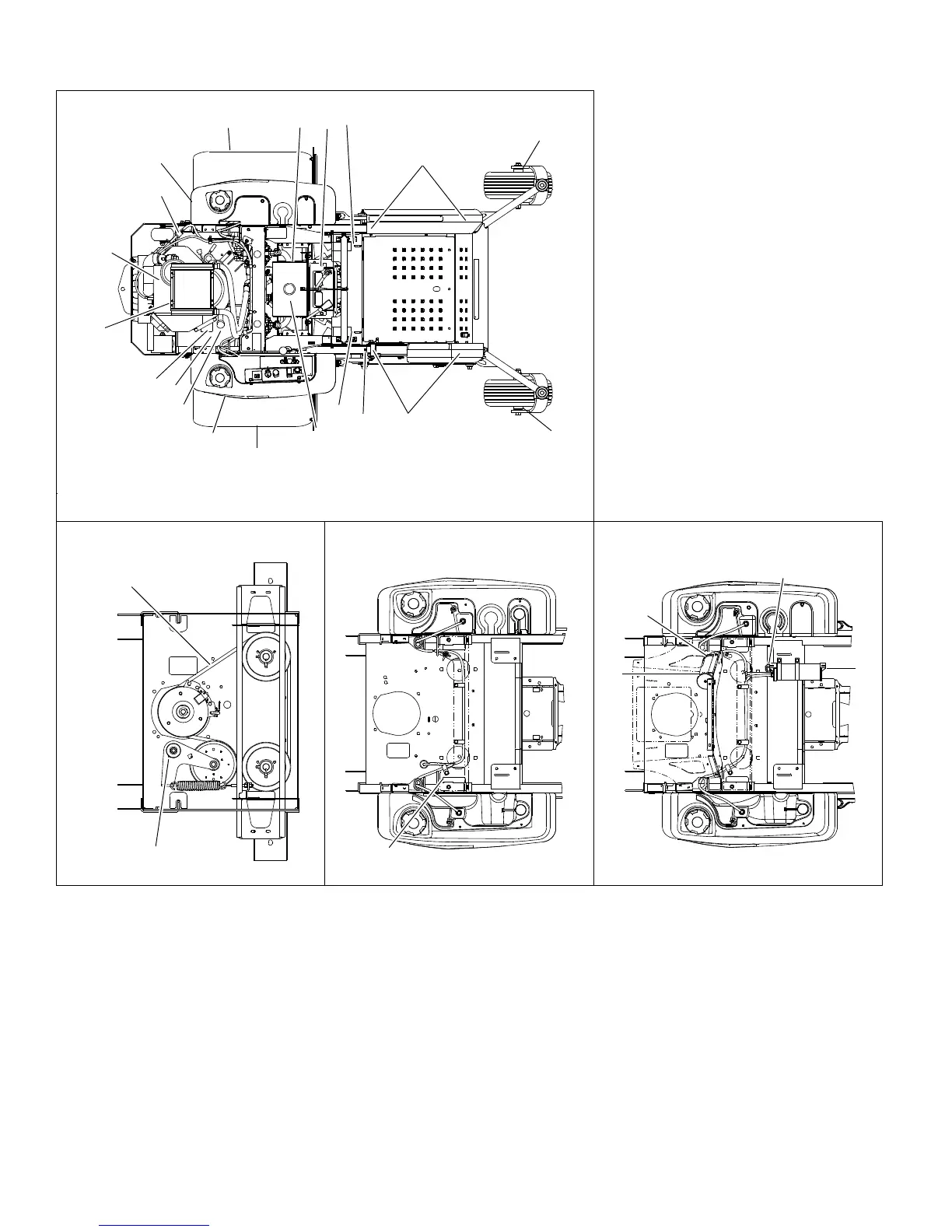

Super 104 Maintenance Locator Chart
1. Engine Oil Fill & Dipstick
2. Fuel Filter
3. Engine Air Cleaner
4. Engine Oil Drain Plug
5. Battery
6. Fuel Tanks
7. Hydraulic Oil Reservoir
8. Hydraulic Oil Filter
9. Front Wheel Bearing Zerks (2)
10. Engine Oil Filter
11. Deck Height Pivot Zerks (4)
12. Park Brake Switch
13. Drive Tires
14. Pump Idler Zerk (1)
15. Pump Belt
16. Deck Pusher Arm Zerks (2)
17. Deck Belt - Deck Drive
18. Spindle Housing Zerk (5)
19. Blades
20. Fuel Evaporation System Filter
21. Hydraulic Oil Heat Exchanger
22. Deck Belt - Side Deck
23. Side Deck Pivot Zerks (4)
24. Deck Belt - Center Deck
25. Gauge Wheel Zerk (4)
26. Rubber discharge guards
27. Carbon Canisters
Figure 4-22
Figure 4-23 Figure 4-24 Figure 4-25
1
3
4
5
6
6
7
10
9
12
9
23
12
2
11
11
13
13
21
8
Carbon canister equipped machines
20
20
27
27
