GROUP 1 STRUCTURE AND FUNCTION
SECTION 6 HYDRAULIC SYSTEM

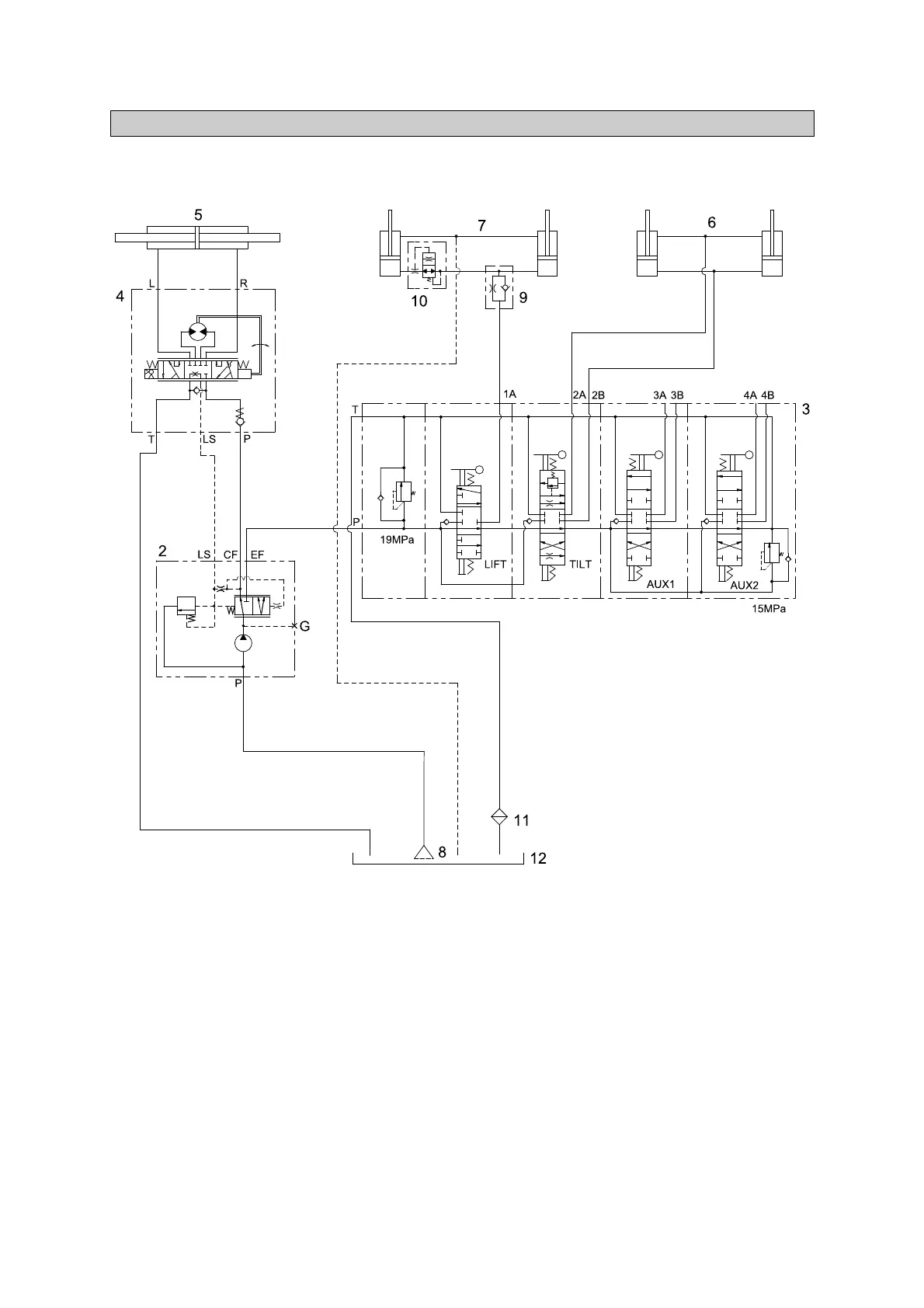

1. HYDRAULIC CIRCUIT
(NON OPSS / TRAVEL OPSS)
15L7MHS01
1 Hydraulic gear pump with priority valve
3 Main control valve
4 Steering unit
5 Steering cylinder
6 Tilt cylinder
7 Lift cylinder
8 Suction strainer
9 Down control valve
10 Down safety valve
11 Return filter
12 Hydraulic tank
