7-1

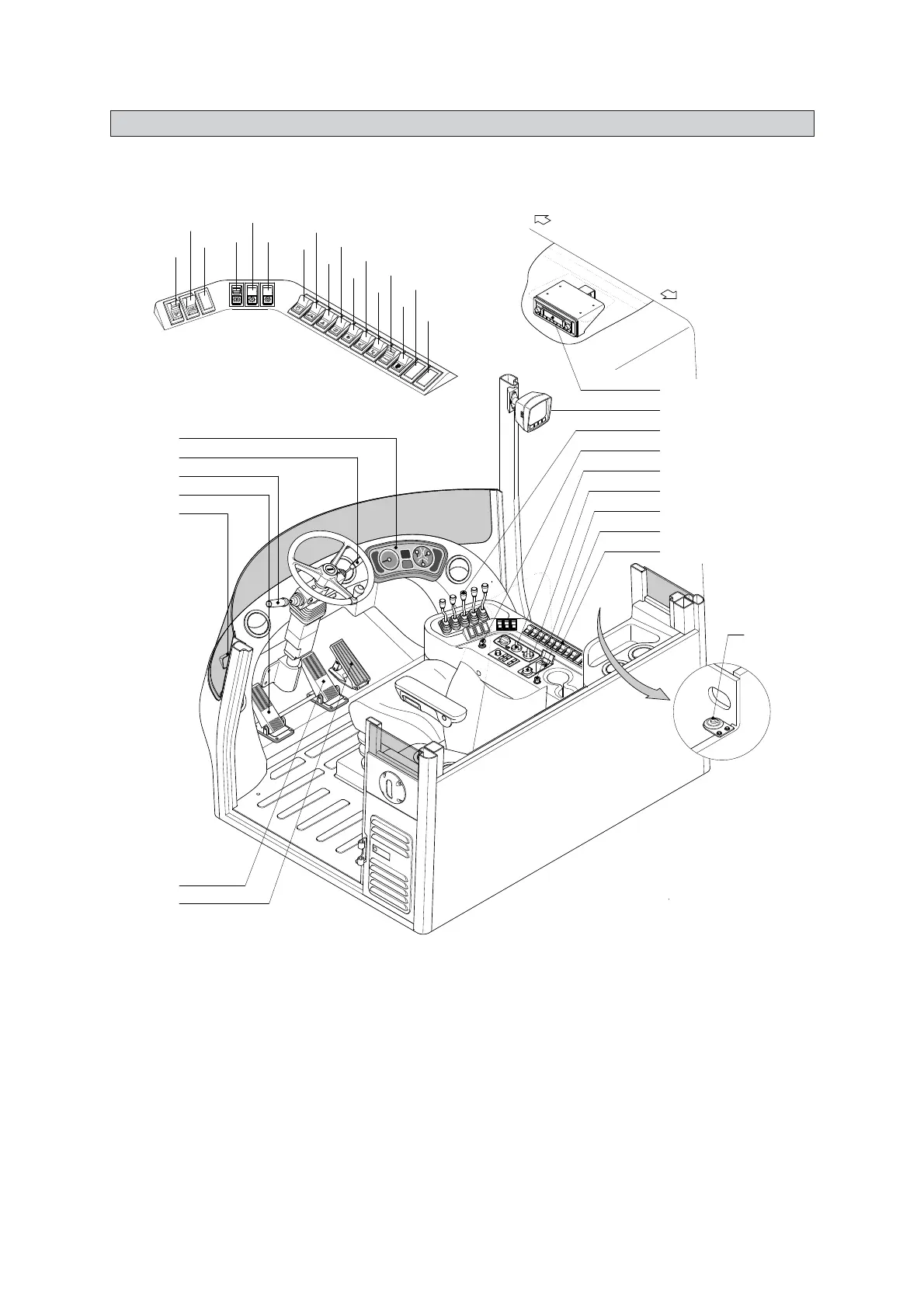

GROUP 1 COMPONENT LOCATION
GROUP 1 COMPONENT LOCATION
SECTION 7 ELECTRICAL SYSTEM
SECTION 7 ELECTRICAL SYSTEM
Rear
Front
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
25
27
29
22
24
26
28
Switch panel
34
30
31
34
34
160D7AEL01
1 Cluster
2 Multi function switch
3 Gear selector lever
4 Inching pedal
5 Transmission error display
6 Brake pedal
7 Accelerator pedal
8 Radio and USB player
9 Monitor (opt)
10 Remote control lever
11 Starting switch
12 Aircon & heater switch
13 USB socket
14 Cigar lighter
15 Handsfree (opt)
16 Switch board
17 Master switch
18 Parking brake switch
19 Auto/Manual select switch
20 Clutch cut-off switch
21 Main light switch
22 Work lamp swich
23 Hazard switch
24 Rear wiper/washer switch
25 Aircon switch
26 Seat heat switch
27 Inc/Dec switch
28 Engine mode switch
29 Fuel heater switch
30 Cruise switch
31 Cruise set/resume switch
34 Cover
1. LOCATION 1
