Hyundai 160D-7A User Manual

7-37
Specifications CheckSymbolPart name
2
1
CN-60
CN-95
6
1
2
3
4
5
6
1
5
3
0
I
0,
I
H
4
2
B
H
BR
ACC
C
CS-2
CD-3 CD-26
CD-18
Pa
1
2
CD-4 CD-75
Pa
1
2

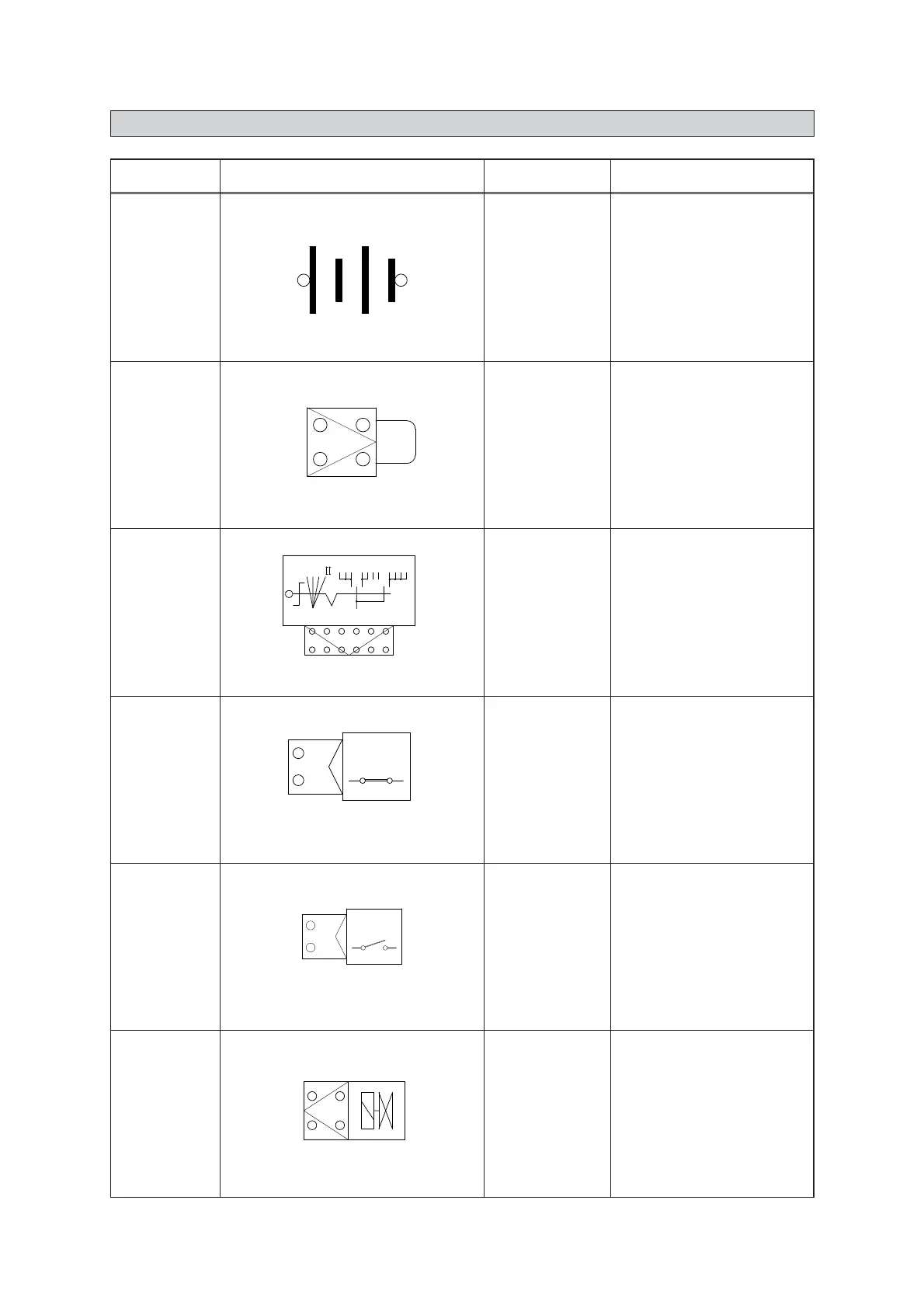

GROUP 6 ELECTRICAL COMPONENT SPECIFICATION
GROUP 6 ELECTRICAL COMPONENT SPECIFICATION
Battery
Fusible link
Start key
Pressure switch
Pressure switch
12V × 200Ah
(2EA)
CN-60 : 24V 27A
CN-95 : 24V 45A
※ Check specific gravity
1.280 over : Over charged
1.280 ~ 1.250 : Normal
1.250 below : Recharging
※ Check disconnection
Normal : 0Ω
(Connect ring terminal and
check resistance between
terminal 1 and 2)
DC 24V
※ Check contact
OFF : ∞Ω(For each terminal)
ON : 0Ω(For terminal 1-3)
∞Ω(For terminal 1-5)
START : 0Ω(For terminal 1-3
and 1-5)
N.C TYPE
N.O TYPE
※ Check contact
Normal : 0Ω(CLOSE)
※ Check contact
Normal : ∞Ω(OPEN)
1
2
CN-71
Solenoid valve
(Parking, fan
EPPR valve)
24V 1.2A
※ Check LED lamp.
※ Check resistance
About 24Ω
CN-71 CN-154
CD-3 CD-26
CD-18 CD-160
