5-35

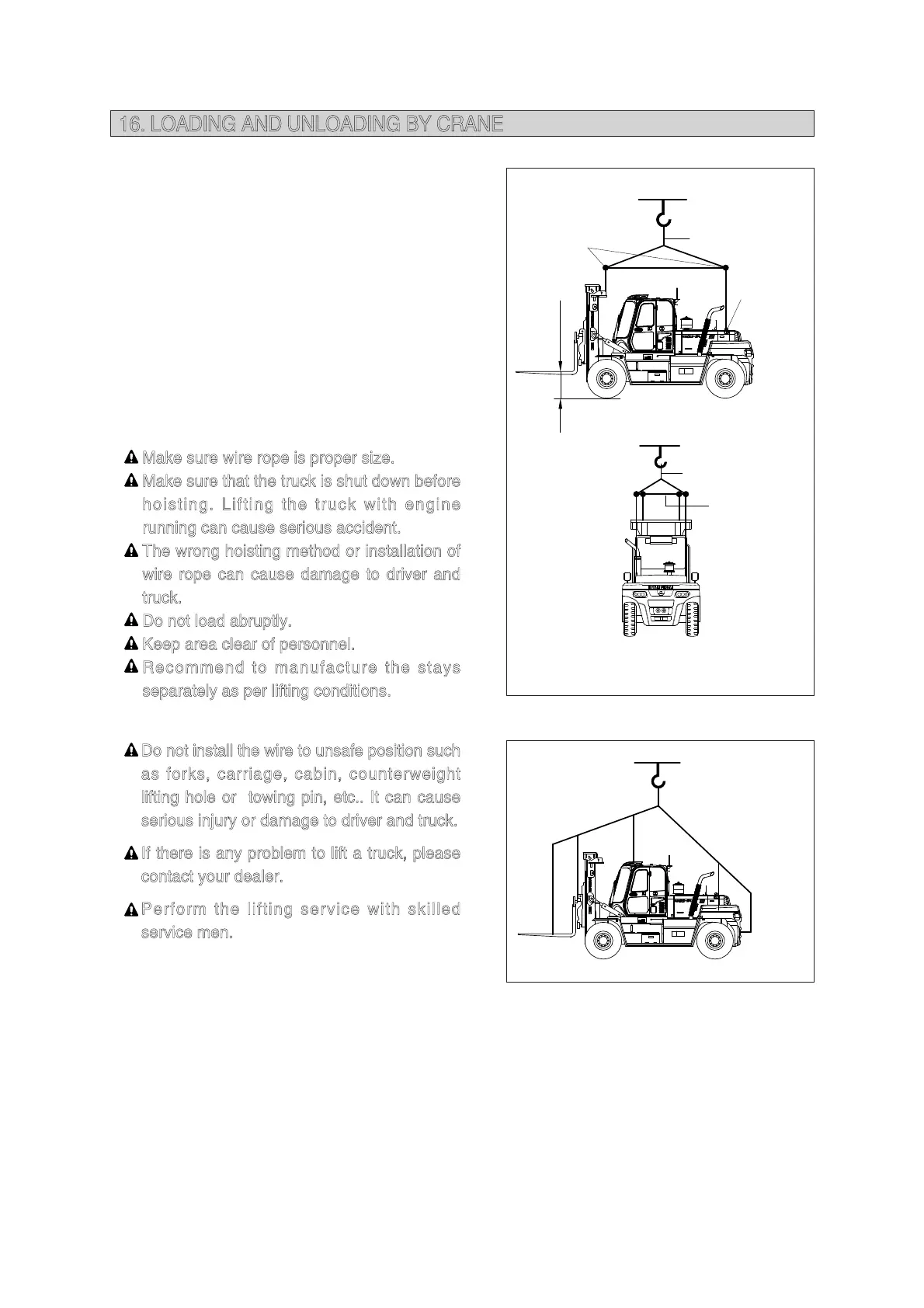

16. LOADING AND UNLOADING BY CRANE
Wire rope
Stay
Wire rope
150~200mm
(6~8in)
Stay
REAR VIEW
To lift
bracket
160D9LOM162A
Do not install the wire to unsafe position such
as forks, carriage, cabin, counterweight
lifting hole or towing pin, etc.. It can cause
serious injury or damage to driver and truck.
If there is any problem to lift a truck, please
contact your dealer.
Perform the lifting service with skilled
service men.
Fork (X)
Carriage (X)
Cabin (X)
Towing
pin (X)
Counterweight
lifting hole (X)
X
160D9LOM163
Check the specification of the truck when you
are going to hoist the truck.
Use long wire rope and stay to keep the
distance with the truck as it should avoid
touching with the truck body.
Put a rubber plate where the wire rope contact
with the truck's body to prevent damage.
Place crane on the proper place.
Install the wire rope and stay like the
illustration.
Make sure wire rope is proper size.
Make sure that the truck is shut down before
hoisting. Lifting the truck with engine
running can cause serious accident.
The wrong hoisting method or installation of
wire rope can cause damage to driver and
truck.
Do not load abruptly.
Keep area clear of personnel.
Recommend to manufacture the stays
separately as per lifting conditions.
1)
2)
3)
4)
5)
To Next Page
