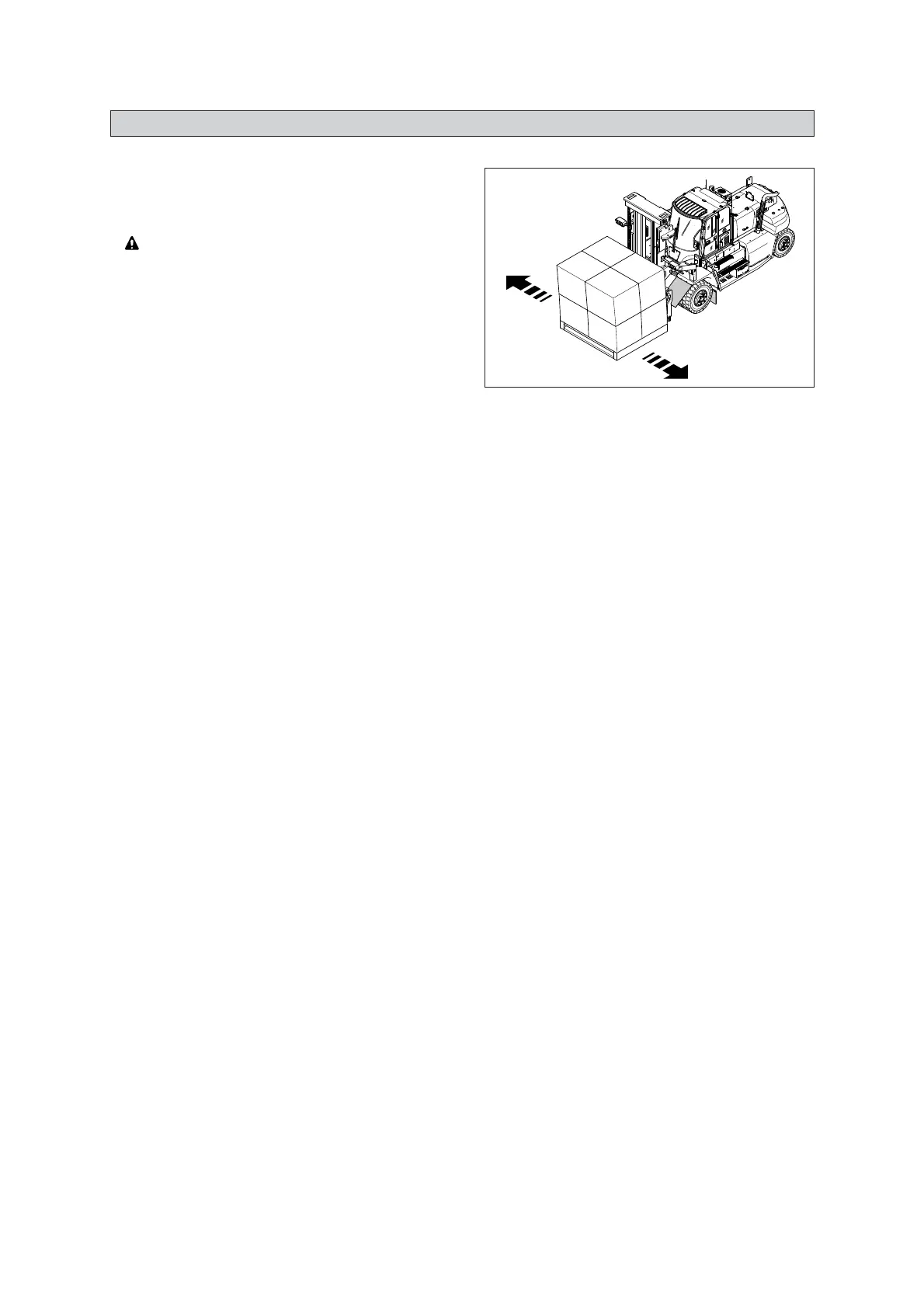

2-8
Do not
operate the
fork positioner
with a
load, or with the fork arm on the ground.
Never mo
ve the
levers t
o operat
e the f
ork
Never move the levers to operate the fork
positioner suddenly and quickly.
positioner suddenly and quickly.
It can be caused to drop the load.
It can be caused to drop the load.
160D9LOM79
12
.
FO
RK
PO
SIT
IO
NER
12. FORK POSITIONER
45
47
Table of Contents
Table of Contents
1
A Message to Hyundai Lift Truck Operators
4
Introduction
5
How to Use this Manual
6
EC Regulation Approved
8
Safety Labels
9
Guide (Direction, Serial Number, Symbols)
19
Safety Hints
20
Daily Inspection
20
Do's and Don'ts
21
Seat Belts
23
No Riders
24
Pedestrians
25
Operator Protection
26
Fork Safety
27
Pinch Points
28
Travel
29
Grades, Ramps, Slopes and Inclines
30
Tip over
31
Surface and Capacity
33
Parking
34
Refueling
35
Step
36
Operator's Safety Rules
37
Side Shift
38
Operating Hazards
39
Loose Loads
39
Long and Wide Loads
40
Rear Swing
40
Low Overhead Clearance
41
Fast Turns and High Loads
41
Right Angle Stacking
42
Chain Slack
42
Pallets and Skids
43
Caution for Electrical Lines
43
Lifting Loads
44
Side Shift
45
Fork Positioner
46
Know Your Truck
47
General Locations
47
Name Plate and Safety Warning Decal
48
Cab Devices
50
Cluster
52
Switches
85
Control Device
93
Air Conditioner and Heater
98
Others
100
Operator Maintenance and Care
110
Daily Safety Inspection
110
Suggestion for New Truck
112
Fuel Safety Practices
113
Starting and Operating Procedures
114
Before Operating the Truck
114
Check before Operation
115
Check before Starting Engine
116
Seat Adjustment
122
Starting from a Safe Condition
123
General Starting and Operating Tips
124
Starting and Stopping the Engine
125
Warming-Up Operation
130
Levers and Pedals
131
Traveling of the Truck
133
Operating Safely
137
Load Handling
139
Shut down Procedure
145
Storage
146
Transport
147
Loading and Unloading by Crane
148
Emergency Starting and Towing
149
How to Tow a Disabled Truck
149
Parking Brake Release
151
How to Use Battery Jumper Cables
152
Planned Maintenance and Lubrication
154
Introduction
154
Safe Maintenance Practices
155
Instructions before Maintenance
158
Planned Maintenance Intervals
161
Maintenance Chart
166
How to Perform Planned Maintenance
168
Service Instruction
173
Electrical System
203
Air Conditioner and Heater
204
Replacement and Check
206
Handling Truck in Extremely Hot Places
216
Cold Weather Operation
217
Recommendation Table for Lubricants
218
Fuel and Lubricants
219
Specifications
220
Specification Table
220
Specification for Major Components
221
Tightening Torque
223
Troubleshooting
224
Engine System
224
Electrical System
225
Torque Flow System
226
Steering System
230
Brake System
231
Hydraulic System
232
Mast and Fork
233
Testing and Adjusting
235
Engine System
235
Drive System
238
Travel System
240
Steering System
241
