8. Install or replace the control panel with power on. See “Installing or replacing the 8234-EMA,
9117-MMA, or 9406-MMA control panel with power on.”
Attention: If you are not immediately installing or replacing the control panel, a control panel filler
must be in place when the system power is on for proper air flow and cooling. For instructions on
installing a control panel filler, see “Removing and installing the 8234-EMA, 9117-MMA, or
9406-MMA control panel filler” on page 23.
Related information
Removing a part using the Hardware Management Console
Managing the Advanced System Management Interface
Installing or replacing the 8234-EMA, 9117-MMA, or 9406-MMA control
panel with power on
You can install or replace the control panel on the server with the power on.
If your system is managed by the Hardware Management Console (HMC), use the HMC to complete the
steps for installing a control panel. For instructions, see Replacing a part by using the Hardware
Management Console. If you do not have an HMC, complete this procedure to replace a control panel.
If your system is managed by the IBM Systems Director Management Console (SDMC), use the SDMC to
replace the control panel in the server. For information about using the SDMC to replace a control panel,
see Replacing a part by using the Systems Director Management Console. If you do not have an SDMC,
complete this procedure to replace a control panel.
Prerequisites
To replace a control panel with the system power on, you must first gain access to the Advanced System
Management Interface (ASMI).
Install or replace the control panel

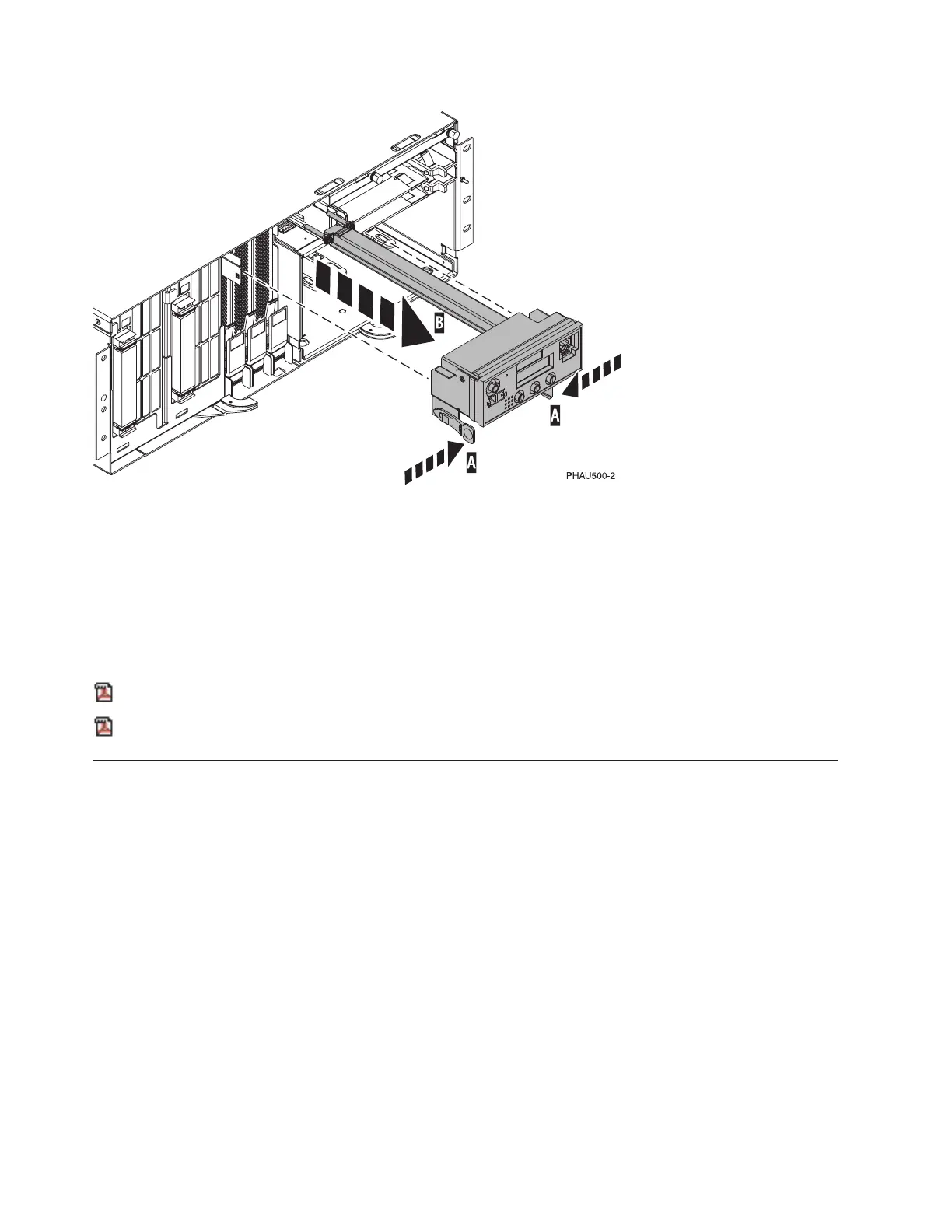

Figure 16. Removing a control panel
18 Control panel, control panel fillers, and signal cables
