Removing the front cover from a rack-mounted 8203-E4A, 8204-E8A,
8261-E4S, 9407-M15, 9408-M25, or 9409-M50
Use this procedure to remove the cover to access components or perform service.
1. Remove the two thumbscrews (A) that secure the system to the rack (B) as shown in the following
figure.
2. Push in the release latches (C) and pull the cover away from the system.

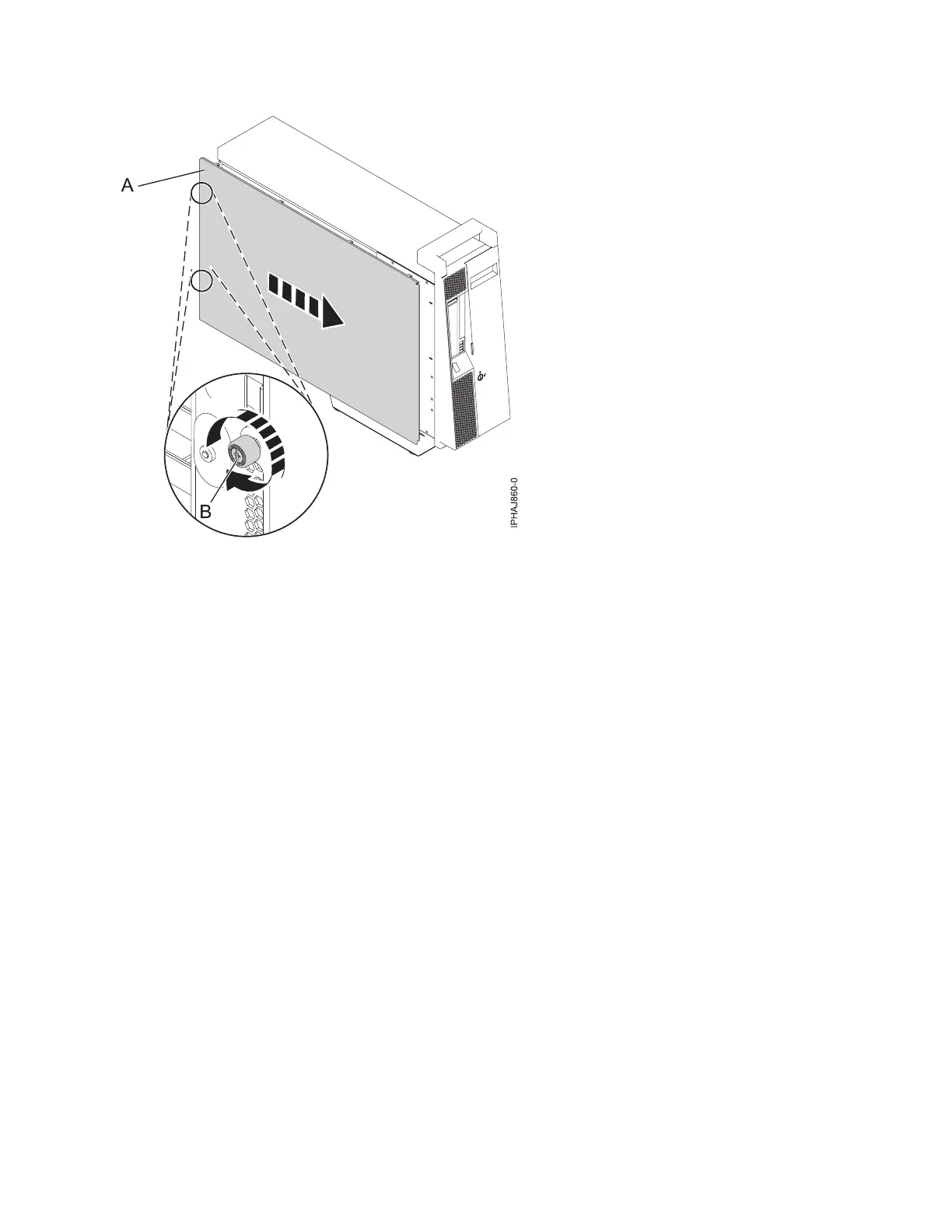

Figure 25. Installing the service access cover on a stand-alone model
36 Control panel, control panel fillers, and signal cables
