Installing the front cover on a rack-mounted 8203-E4A, 8204-E8A,
8261-E4S, 9407-M15, 9408-M25, or 9409-M50
Use this procedure to install the cover after accessing components or performing service.
1. Push in the release latches (B) and push the cover onto the system.
2. Gently push the cover in until the two cover-release latches (B) are seated in their respective slots as
shown in the following figure.
3. Replace the two thumbscrews (C) that secure the system to the rack (A).

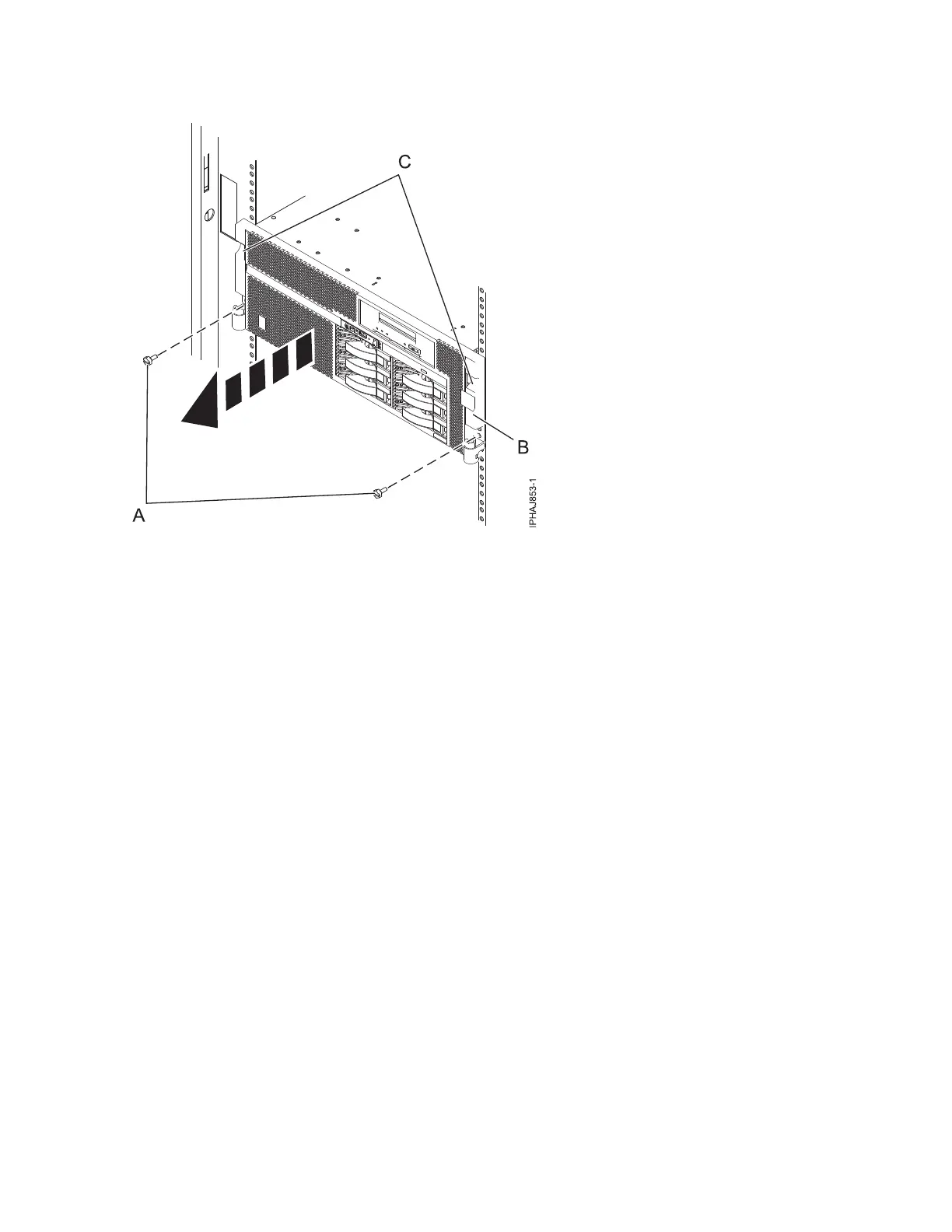

Figure 26. Removing the front cover from a rack-mounted model
Chapter 3. Common procedures for installable features 37
