2. Tighten the thumbscrew on the right side of the cover.
3. Close the front rack door.
Placing the rack-mounted system or expansion unit in the service
position or operating position
Use these procedures to place a system or expansion unit into the service position or operating position
to perform service or to gain access to internal components.
Placing the rack-mounted system or expansion unit in the service
position
Use this procedure to perform service or gain access to internal components by placing the rack-mounted
system or expansion unit in the service position.
Note: Some of the figures in these procedures might not look exactly like the system or expansion unit
that you have. However, the steps to perform the task are the same.

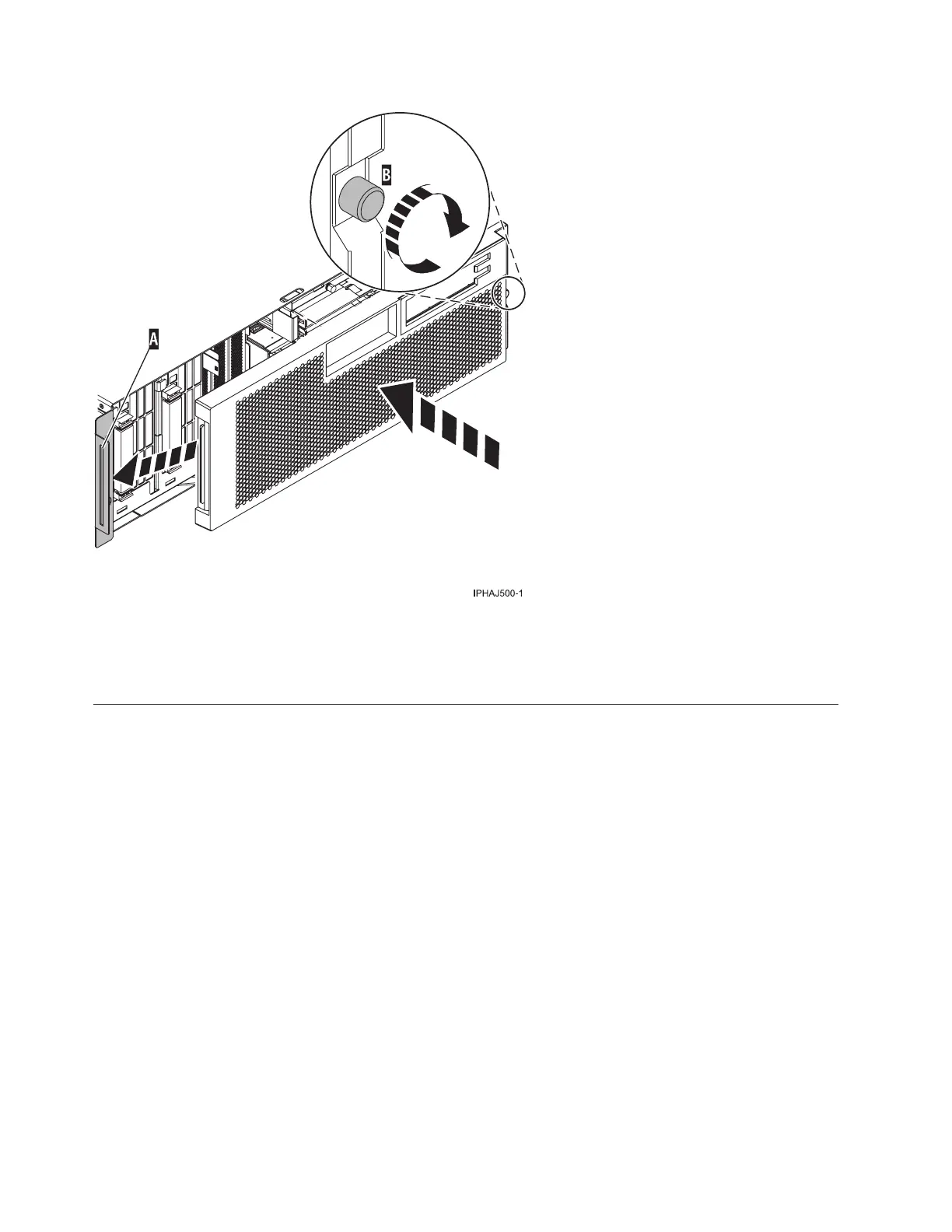

Figure 31. Installing the front cover
42 Control panel, control panel fillers, and signal cables
