Removing and replacing covers for the 8202-E4B, 8202-E4C, 8205-E6B,
or 8205-E6C
Use these instructions to remove, replace, or install covers to access components or perform service.
Removing the front cover on a rack-mounted 8202-E4B, 8202-E4C, 8205-E6B, or
8205-E6C system
Use this procedure to remove the cover to access components or perform service.
To remove the front cover, follow these steps:
1. Remove the two shipping screws (if present) that secure the system to the rack.
Note: Replacing the shipping screws is optional but should be done in geographic areas that are
prone to seismic activity.
2. Pull the cover away from the system. The cover has an indentation where you can hold onto it more
easily.

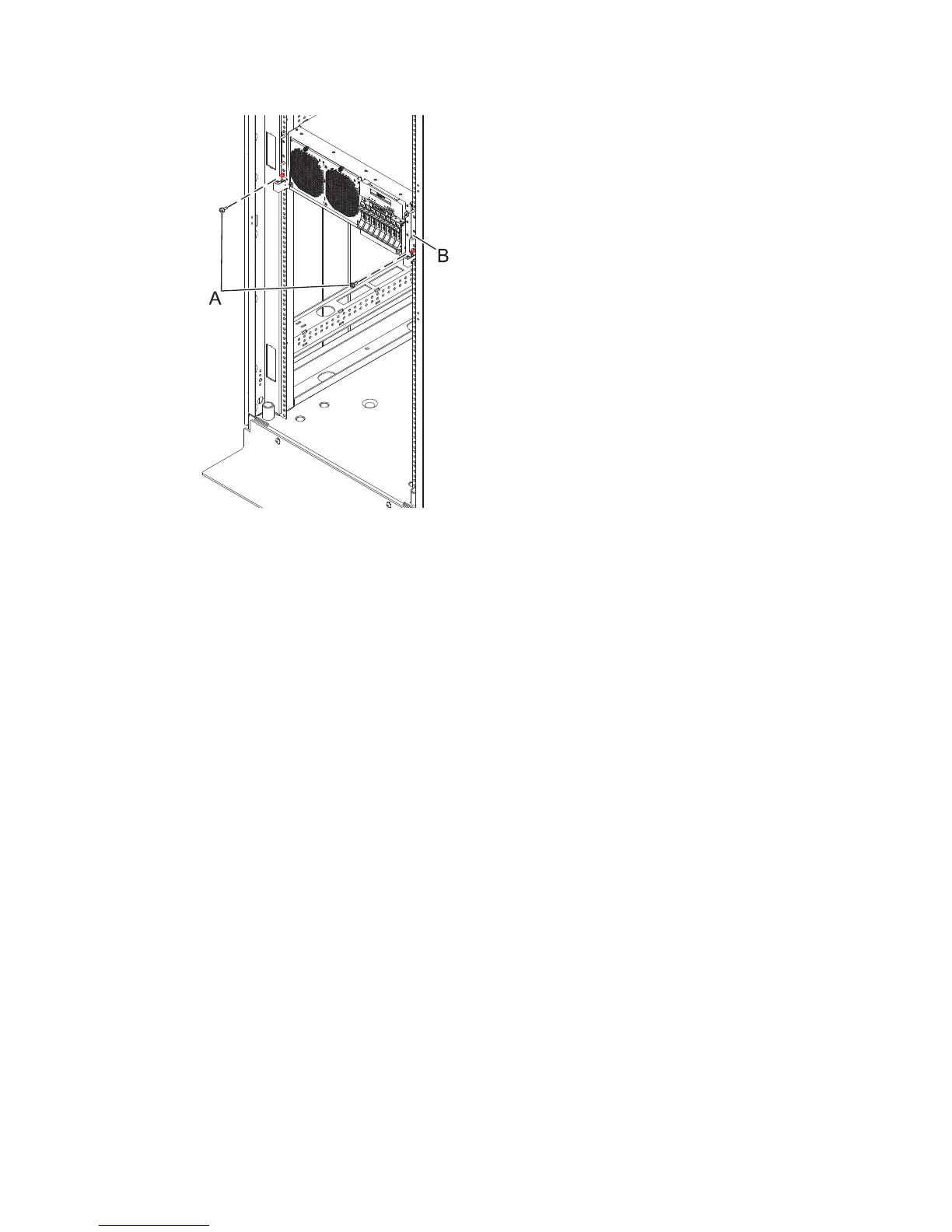

Figure 40. Placing the system into the operating position
Power supplies 47
