Installing the front cover on a rack-mounted 8202-E4B, 8202-E4C, 8205-E6B, or
8205-E6C system
Use this procedure to install the cover to access components or perform service.
To install the front cover, follow these steps:
1. Push the cover onto the system.
2. Gently push the cover in until the four cover clips are seated in their respective mounting posts as
shown in the following figure. The cover snaps into place and has an indentation where you can hold
onto it more easily.
Note: Replacing the shipping screws is optional but should be done in geographic areas that are
prone to seismic activity.

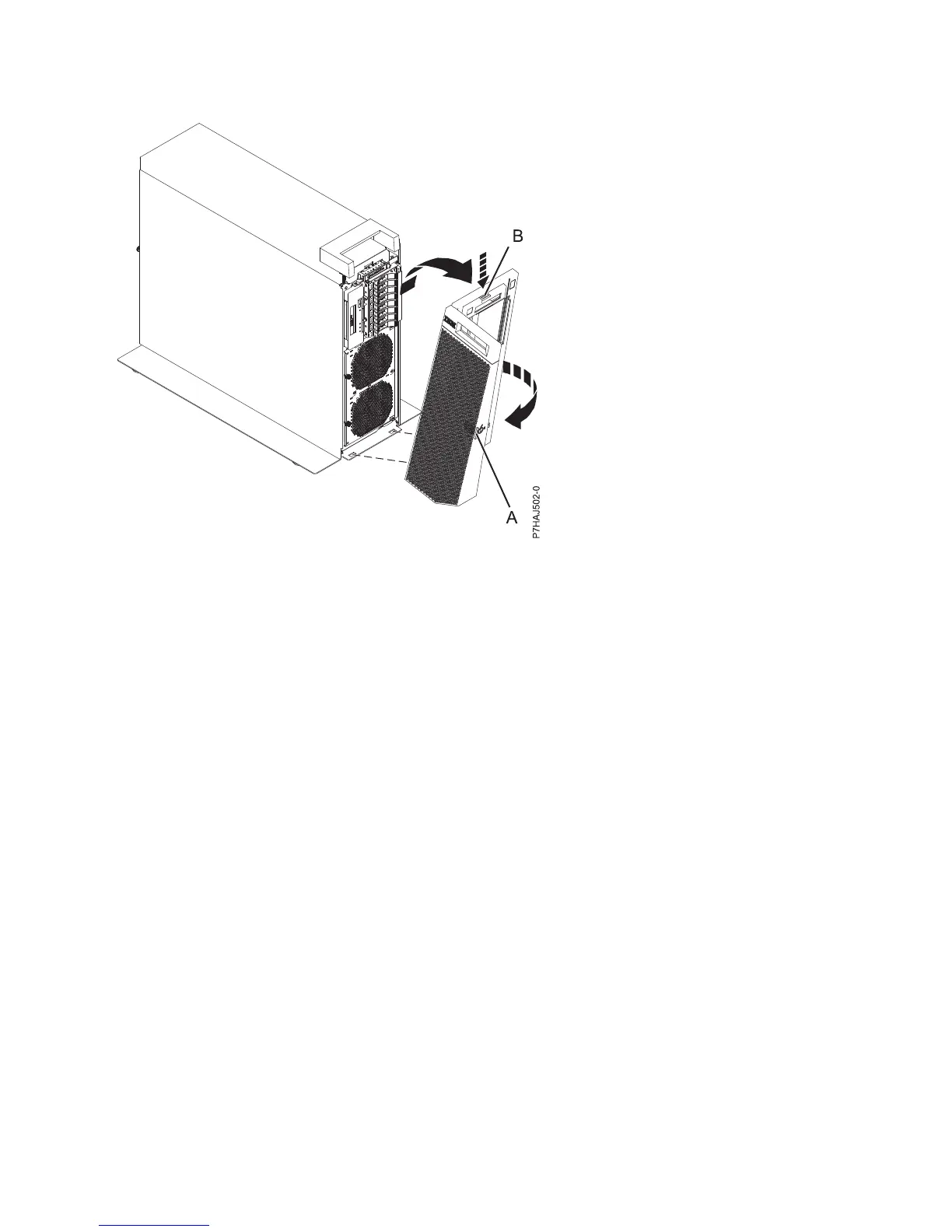

Figure 42. Removing the front cover
Power supplies 49
