3. Hold the front door at an approximate 120 degree angle to the system as show in the following figure.
Engage the latches.
Removing the service access cover on a rack-mounted 8202-E4B, 8202-E4C,
8205-E6B, or 8205-E6C system
Use this procedure to remove the service access cover.
1. Loosen the two thumbscrews (A) located at the back of the cover.
2. Slide the cover toward the back of the system unit. When the front of the service access cover has
cleared the upper frame ledge, lift the cover up and off the system unit.

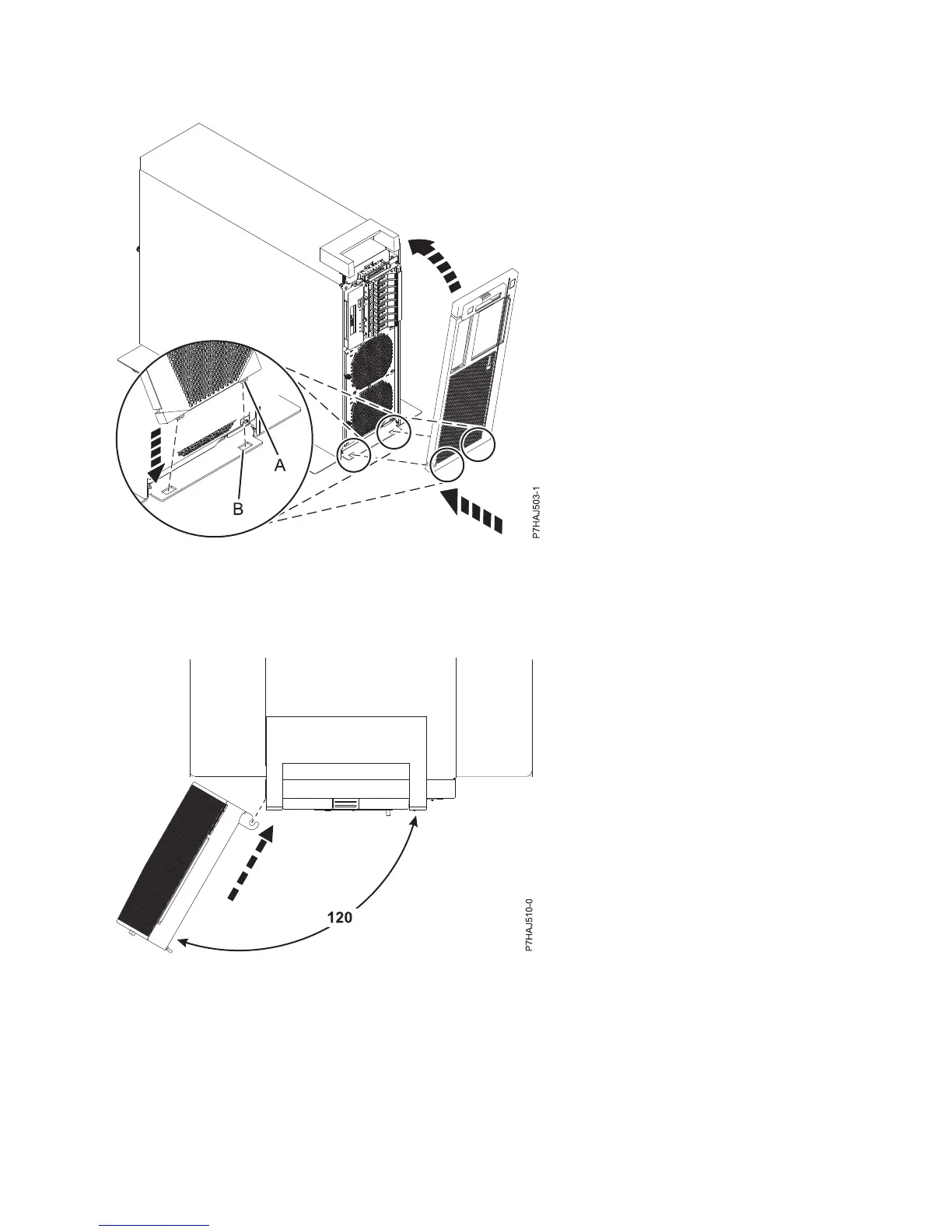

Figure 44. Installing the front cover
Figure 45. Installing the front door
Power supplies 51
