Closing the blade server cover
Use these instructions for information about how to close the blade server cover.
Attention: You cannot insert the blade server into the BladeCenter unit until the
cover is installed and closed or an expansion unit is installed. Do not attempt to
override this protection.
To close the blade server cover, complete the following steps:

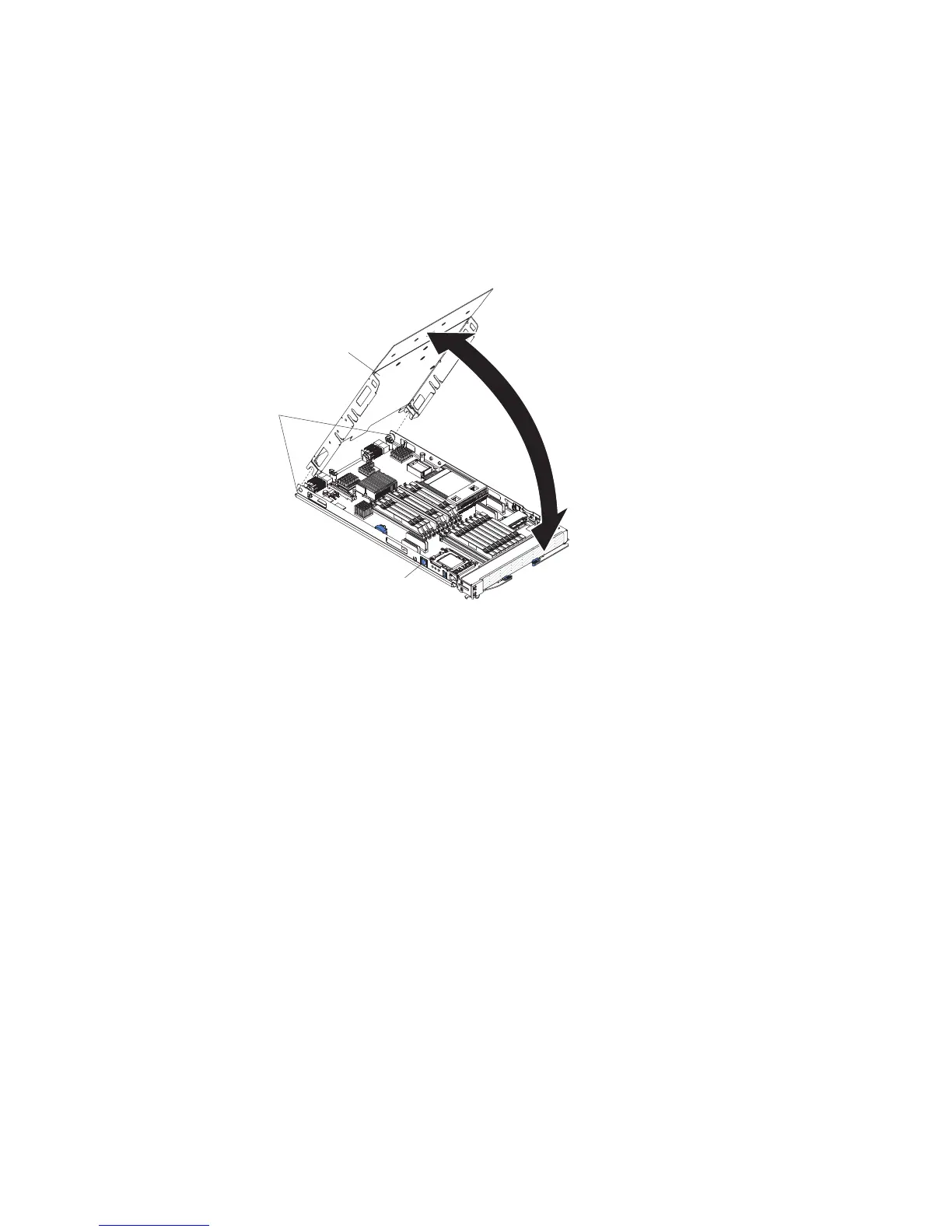

Blade server
cover release
Cover
pins
Blade server
cover
1. Read the safety information that begins on page “Safety” on page v and
“Installation guidelines” on page 19.
2. If you removed an expansion unit from the blade server, install it now (see
“Installing an optional expansion unit” on page 23).
3. Lower the cover so that the slots at the rear slide down onto the pins at the
rear of the blade server, as shown in the illustration. Before you close the cover,
make sure that all components are installed and seated correctly and that you
have not left loose tools or parts inside the blade server.
4. Pivot the cover to the closed position, as shown in the illustration, until it clicks
into place.
50 BladeCenter HS22V Type 7871 and 1949: Installation and User's Guide
