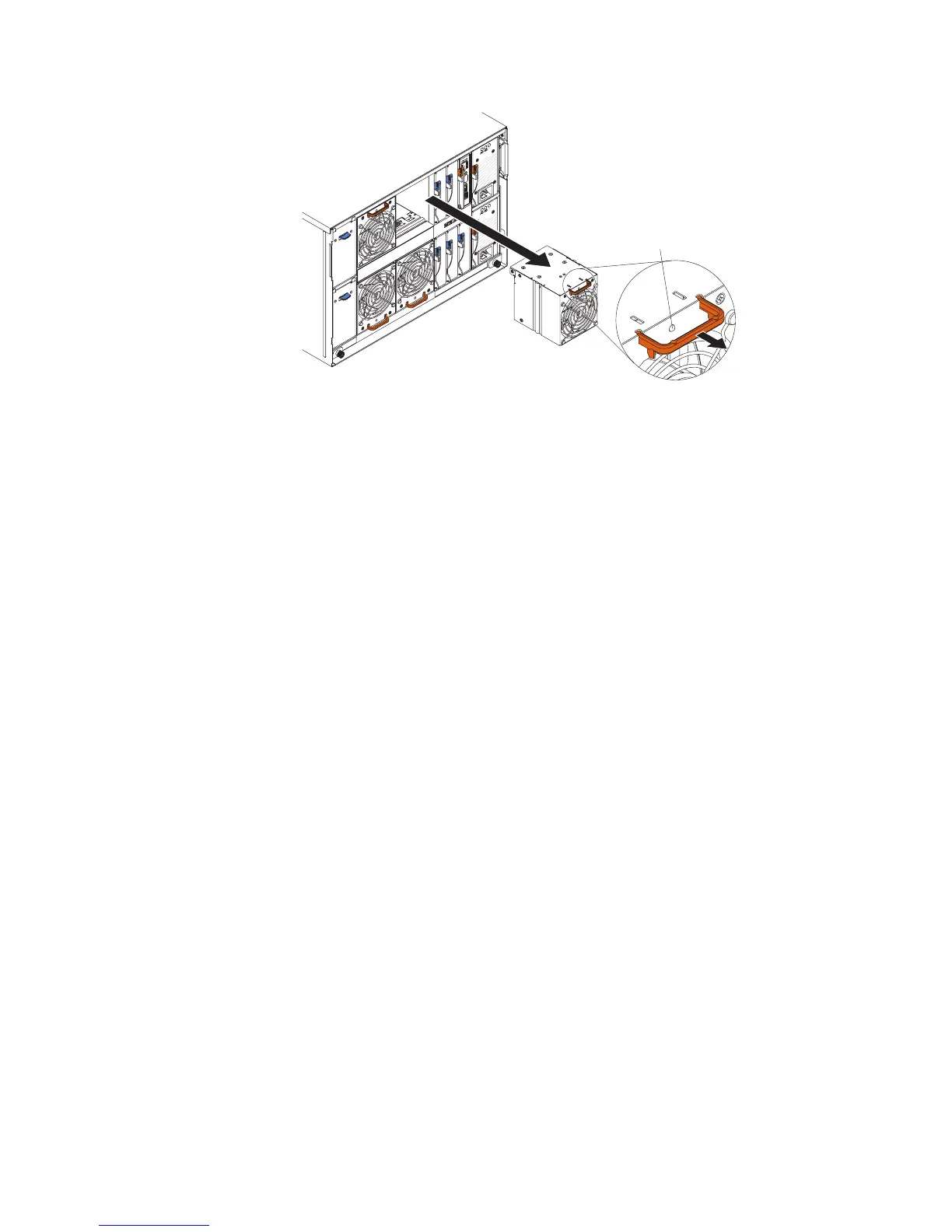

Fan
error
LED
Installing the BladeCenter S chassis in a rack
Use the rack template and the rack installation kit that comes with the BladeCenter
S system to correctly install it in a rack.
Before you begin
Before you begin, review the “Installation guidelines” on page 25.
If you are installing the BladeCenter S chassis in the Office Enablement Kit, see the
Office Enablement Kit Installation and User's Guide.
About this task
Rack requirements:
v Make sure that the room air temperature is below 35°C (95°F).
v Do not block any air vents; usually, 15 cm (6 in.) of air space in the rear and 5
cm (2 in.) in the front provides proper airflow.
v Three or more people are required to install the device in a rack.
v Do not leave any unused U space within a rack open. Blank filler panels must
be used to prevent recirculation of warm air.
v Install your BladeCenter S chassis only in a rack cabinet with perforated front
and rear doors or in a rack that is equipped with an IBM Rear Door Heat
eXchanger.
v Do not extend more than one device out of the rack at the same time.
v Remove the rack doors and side panels to provide easier access during
installation.
v The rack-mounting flanges must have holes and clearances per EIA-310-D.
v Make sure that there is sufficient room in front of the front EIA flange to provide
minimum bezel clearance of 70 mm (2.76 inches) deep.
v Make sure that there is sufficient room behind the rear of the rear EIA flanges to
provide for adequate cable management and routing.
v Rack weight-handling capacity must be sufficient for the aggregate weight of the
BladeCenter S chassis, blade servers, power distribution units, and power cables.
v The rack must be stabilized with stabilization brackets and leveling pads so that
it does not become unstable when it is fully populated.
32 BladeCenter S Type 7779/8886: Installation and User's Guide
