Appendix B. Parts listing
These illustrations identify the replaceable components that are available for the
BladeCenter S Types 7779 and 8886 unit.
v Consumable part. Purchase and replacement of consumable parts (components,
such as batteries and printer cartridges, that have depletable life) is your
responsibility. If IBM acquires or installs a consumable part at your request, you
will be charged for the service.
v Tier 1 customer replaceable unit (CRU). Replacement of Tier 1 CRUs is your
responsibility. If IBM installs a Tier 1 CRU at your request, you will be charged
for the installation.
v Tier 2 customer replaceable unit. You can install a Tier 2 CRU yourself or
request IBM to install it, at no additional charge, under the type of warranty
service that is designed for your computer.
v Field replaceable unit (FRU). FRUs must be installed only by trained service
technicians.
Front view parts listing

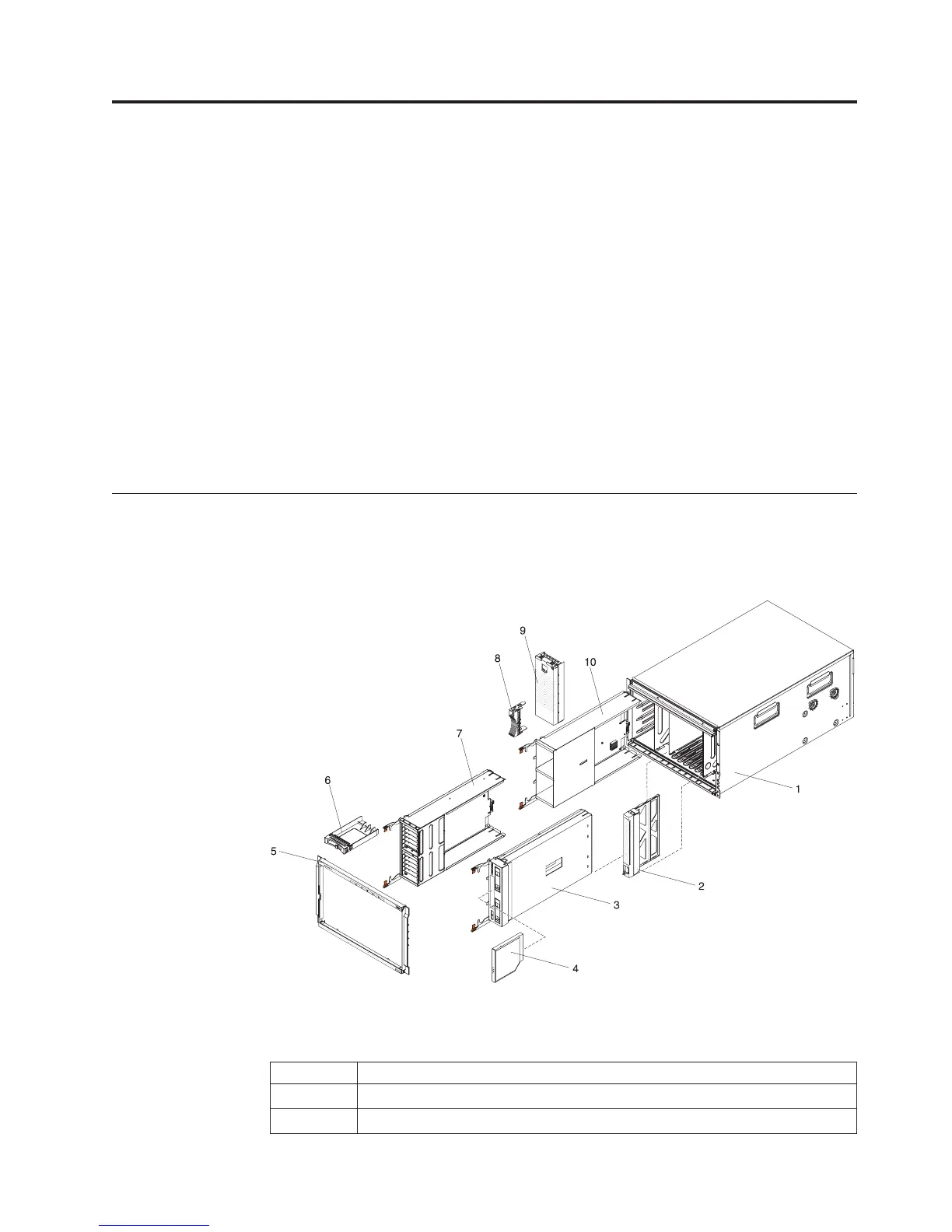

The front of the BladeCenter S chassis contains components such as the media tray
and bays for disk storage modules and blade servers.
See the IBM BladeCenter S Type 8886 Problem Determination and Service Guide for part
numbers.
Index Description
1 Chassis shell (without shuttle)
2 Filler, blade server
© Copyright IBM Corp. 2007, 2013 57
