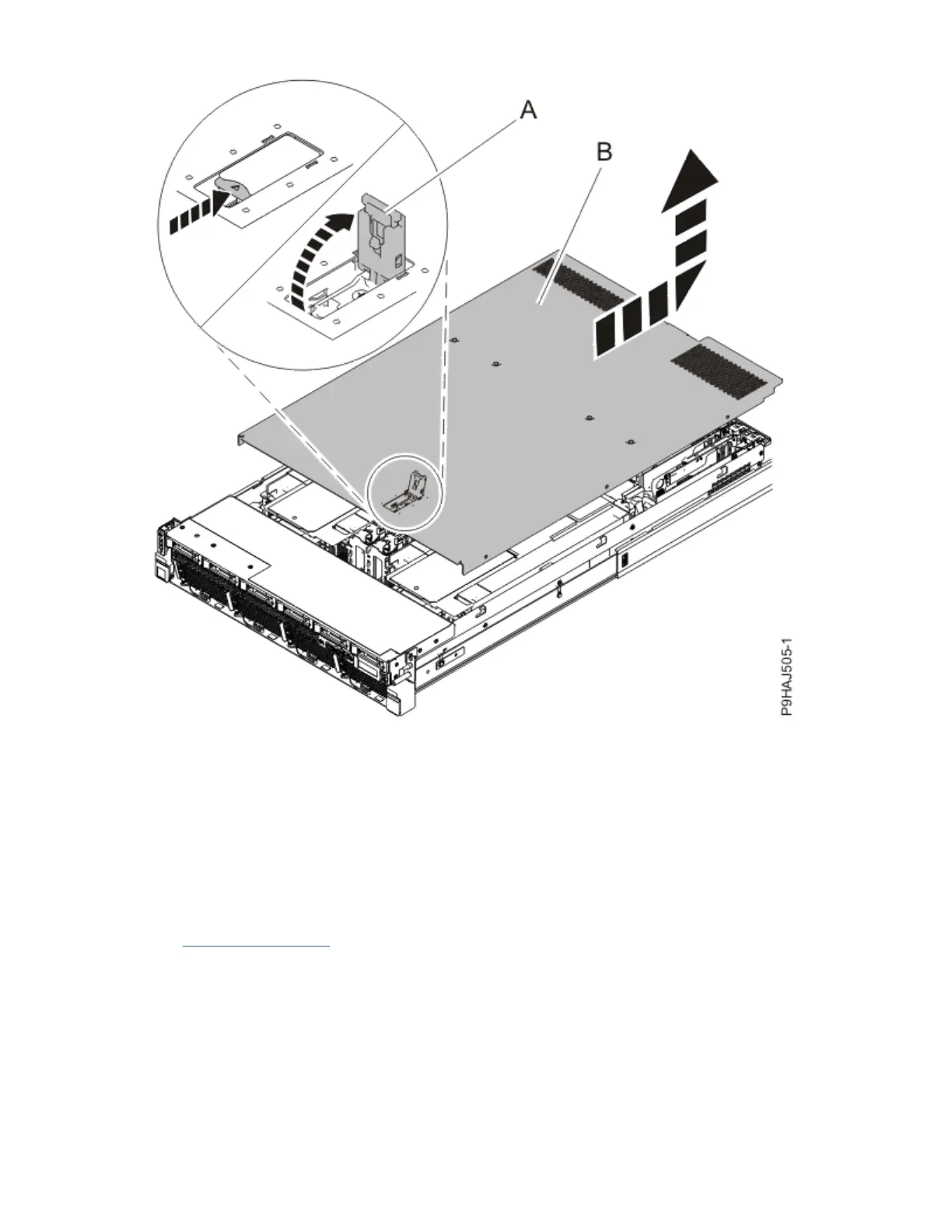

Figure 49. Removing the service access cover
Removing the NVMe drive backplane from the 9009-22G system
To remove the NVMe drive backplane from the system, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Lift each air baffle (A) straight up.
See Figure 50 on page 53
.
Place air baffles upside down on a clean area. When you turn an air baffle over, hold the detachable
drive cover to prevent it from coming loose.
52
Power Systems: Power Systems: Drive backplane
