Control enclosure support rails
The left and right control enclosure support rails (Figure 3) are designed
specifically for installation of a control enclosure.
v The ledge on the inside of the rails supports the entire length of a control
enclosure.
v At the rear end of the control enclosure support rail, the top edge curves over to
capture the top edge of an inserted control enclosure. This prevents the installed
control enclosure bouncing when the rack is subjected to quake or vibration.
v The control enclosure support rails adjust to fit racks from 685 mm to 765 mm
deep, measured between the front and rear rack rails.
Expansion enclosure support rails
The left and right expansion enclosure support rails (Figure 4 on page 7) are
designed specifically for installation of an expansion enclosure.
v The ledge on the inside of each rail supports the entire length of an expansion
enclosure.
v The expansion enclosure support rails capture the left and right rear edges of an
inserted expansion enclosure. This prevents the installed control enclosure
bouncing when the rack is subjected to quake or vibration.
v The expansion enclosure support rails adjust to fit racks from 595 mm to 755
mm deep, measured between the front and rear rack rails.

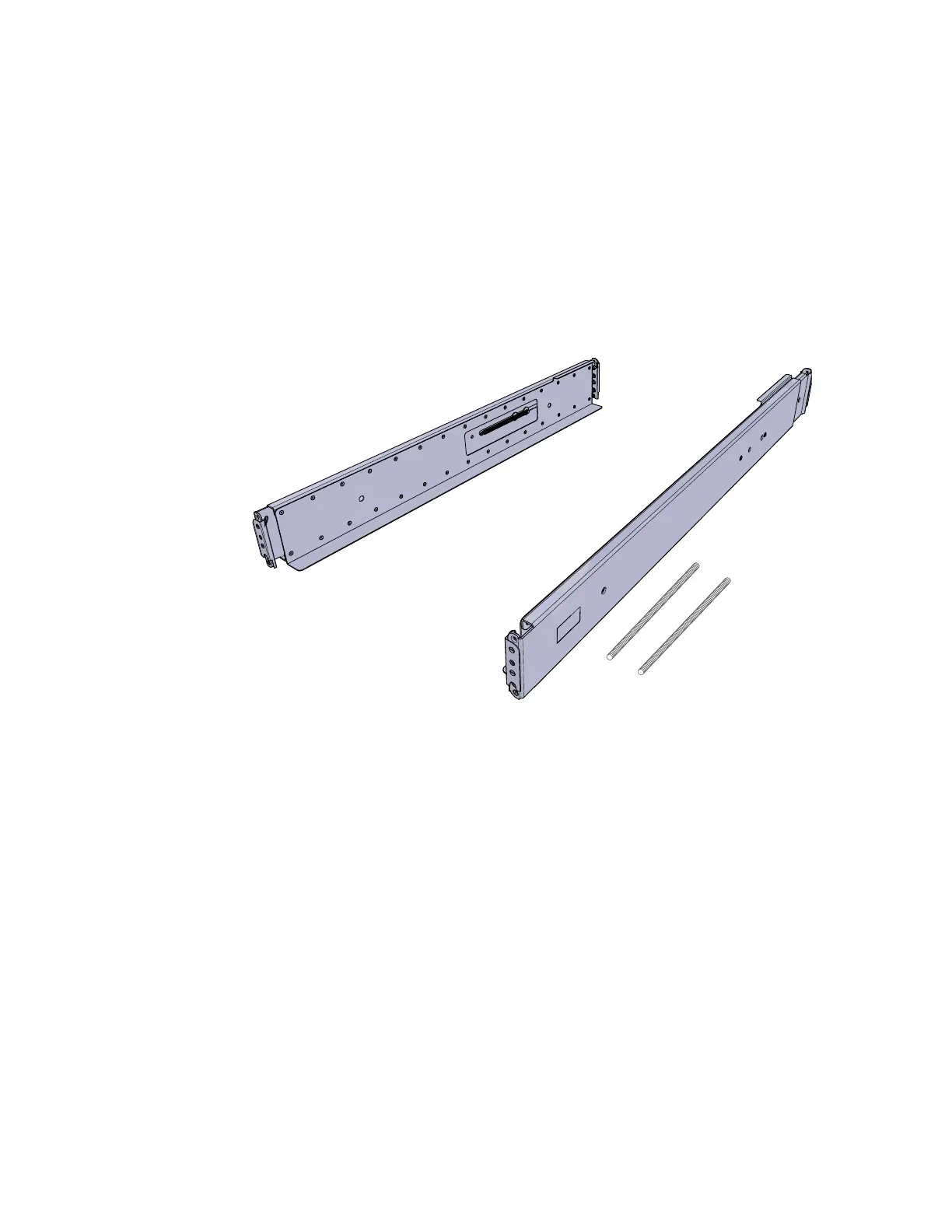

Figure 3. Control enclosure support rails of a Storwize V3500 system
6 Storwize V3500: Quick Installation Guide
