IBM System x3550 M3 User Manual

IBM System x3550 M3 16
Internal disk storage options
The IBM System x3550 M3 supports the following internal disk storage configurations:
Four SATA 2.5" SFF Simple-Swap hard drive bays (only available in CTO)

Four SAS/SATA 2.5" SFF hot-swap hard drive bays, with or without space for an optical disk drive

Eight SAS/SATA 2.5" SFF hot-swap hard drive bays (optical drive bay not available in this

configuration)
The following figure shows these.

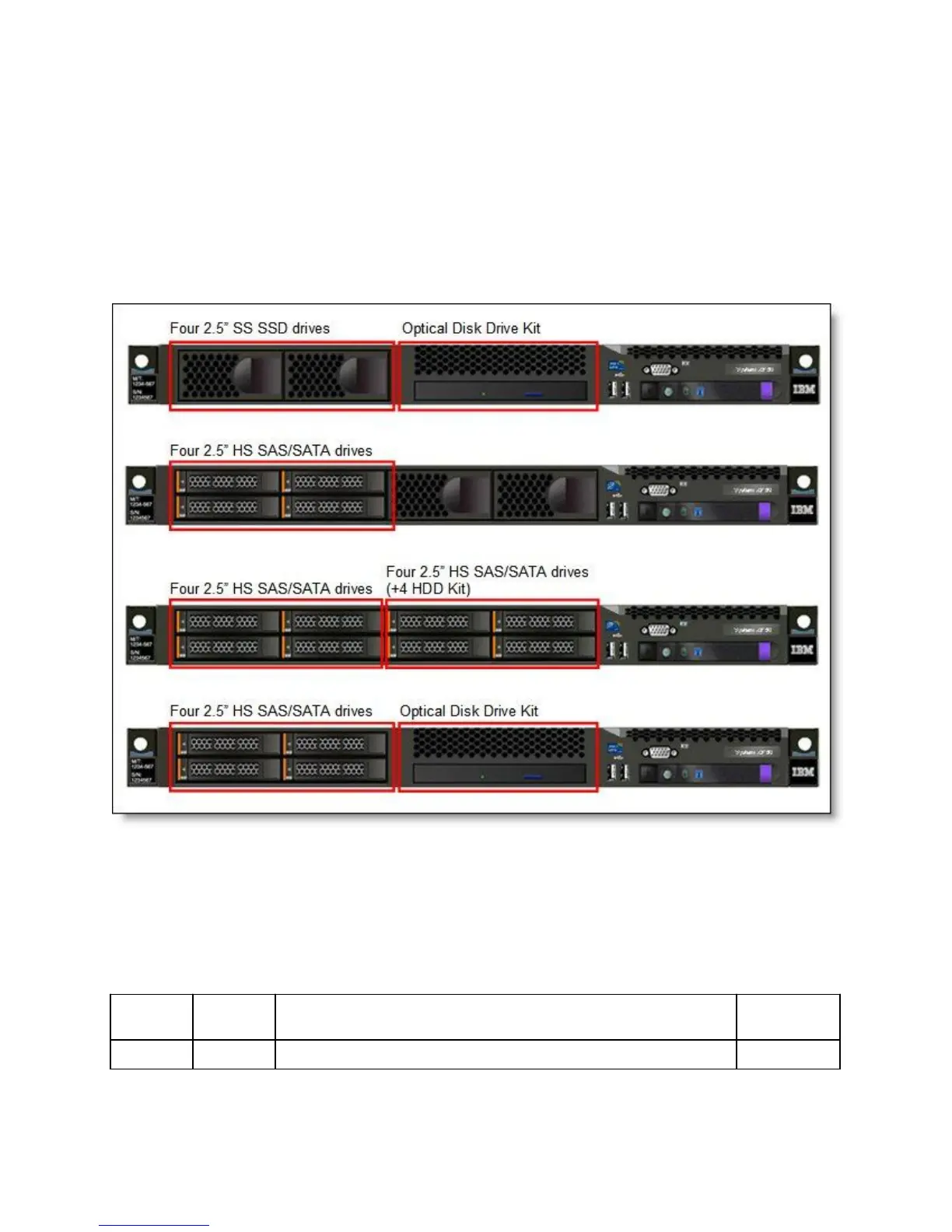

Figure 5. Internal disk storage options
Standard models of x3550 M3 ship with four SAS/SATA 2.5" SFF hot-swap hard drive bays. The following
table shows the option available for x3550 M3 server to add four additional hot-swap drive bays.
Option 59Y3992 upgrades models with four hot-swap HDD bays to eight hot-swap HDD bays. If the server
already has an optical disk drive installed, the drive must be removed first. For model A2Y, this upgrade
also requires a new RAID controller (M1015, M5014, or M5015) to be purchased.
Table 6. Internal storage expansion options
Part
number
Feature
code
Description Maximum
supported
59Y3992 4183 IBM System x3550 M3 R2 plus 4 HDD Kit with 8HDD Bezel 1

IBM System x3550 M3 Specifications

General

Tcase	77.6 °C
Bus type	QPI
Stepping	B1
FSB Parity	No
Processor code	SLBV4
Processor cache	12 MB
Processor cores	4
Processor model	E5620
System bus rate	5.86 GT/s
Processor series	Intel Xeon 5600 Series
Processor socket	Socket B (LGA 1366)
Processor threads	8
Processor codename	Westmere EP
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	42.5 X 45 mm
Processor front side bus	- MHz
Processor boost frequency	2.66 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	SSE4.2
Thermal Design Power (TDP)	80 W
Number of processors installed	2
CPU multiplier (bus/core ratio)	18
Physical Address Extension (PAE)	40 bit
Memory types supported by processor	DDR3 800/1066
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	288 GB
HDD size	2.5 \
RAID levels	0, 1, 10
HDD interface	Serial Attached SCSI (SAS)
Optical drive type	-
Total storage capacity	0 GB
Maximum storage capacity	8 TB
Number of HDDs installed	0
Internal memory	24 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	192 GB
Memory layout (slots x size)	6 x 4 GB
Maximum graphics card memory	16 MB
Graphics card family	Matrox
Graphics card memory type	GDDR2
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	3
Power supply	460 W
Power supply type	AC
Power requirements	100 - 240 V
Power supply input frequency	50 - 60 Hz
Compatible operating systems	Microsoft Windows Server 2008 R2 and 2008, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi, Oracle Solaris 10 (model dependent)
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	8 - 80 %
Chassis type	Rack (1U)
Processor ARK ID	47925
Intel® Turbo Boost Technology	1.0

Weight and Dimensions

Depth	711 mm
Width	440 mm
Height	43 mm
Weight	15600 g
