12. Rotate the drive cage back into the server until it stops; then, press and hold
the retaining tab on top of the drive cage while you rotate the drive cage into
the chassis until it locks into place.
13. Reinstall the hard disk drives.
Note: Before you continue, check all internal power cables to make sure that
they are connected to the system board and other optional devices.
14. Install the side cover (see “Installing the side cover” on page 53).
15. Lock the side cover.
16. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
Removing an IBM Remote Supervisor Adapter II SlimLine
To remove a Remote Supervisor Adapter II SlimLine from the server, complete the
following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 47.
2. Turn off the server and all attached devices; then, disconnect all power cords
and external cables.
3. Unlock and remove the side cover (see “Removing the side cover” on page 52).
4. Rotate the rear adapter-retention bracket out of the server.
5. Press the Remote Supervisor Adapter II SlimLine support bracket retention clip
outward slightly and grasp the Remote Supervisor Adapter II SlimLine and lift it
out of the server.

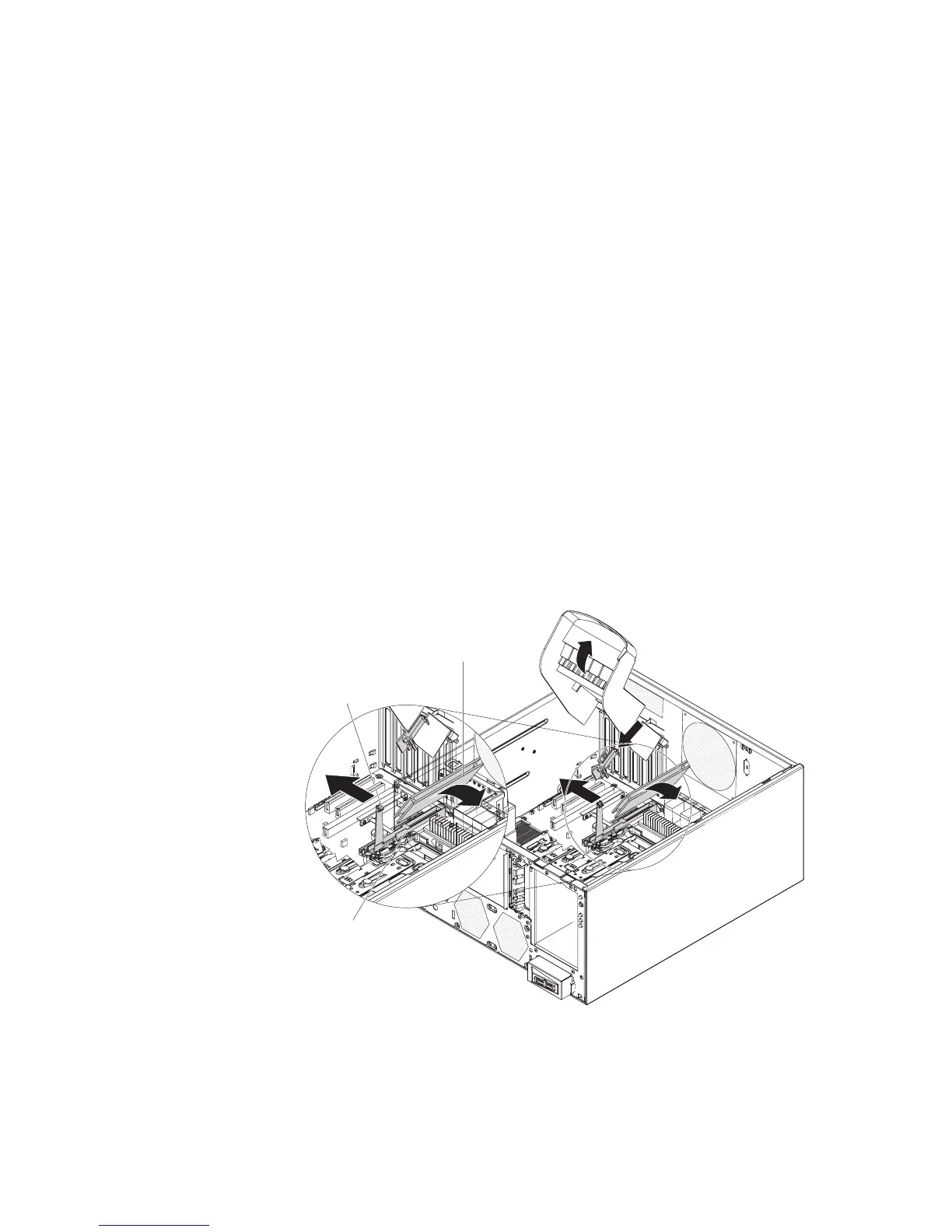

Remote Supervisor II
SlimLine adapter
support bracket
Remote Supervisor II
SlimLine adapter
retainer clip
Remote Supervisor II
SlimLine adapter
6. If you are instructed to return the adapter, follow all packaging instructions, and
use any packaging materials for shipping that are supplied to you.
Installing an IBM Remote Supervisor Adapter II SlimLine
An optional IBM Remote Supervisor Adapter II SlimLine must be installed only in its
dedicated connector on the system board. See “System-board internal connectors”
on page 9
102 System x3200 M2 Types 4367 and 4368: Problem Determination and Service Guide
