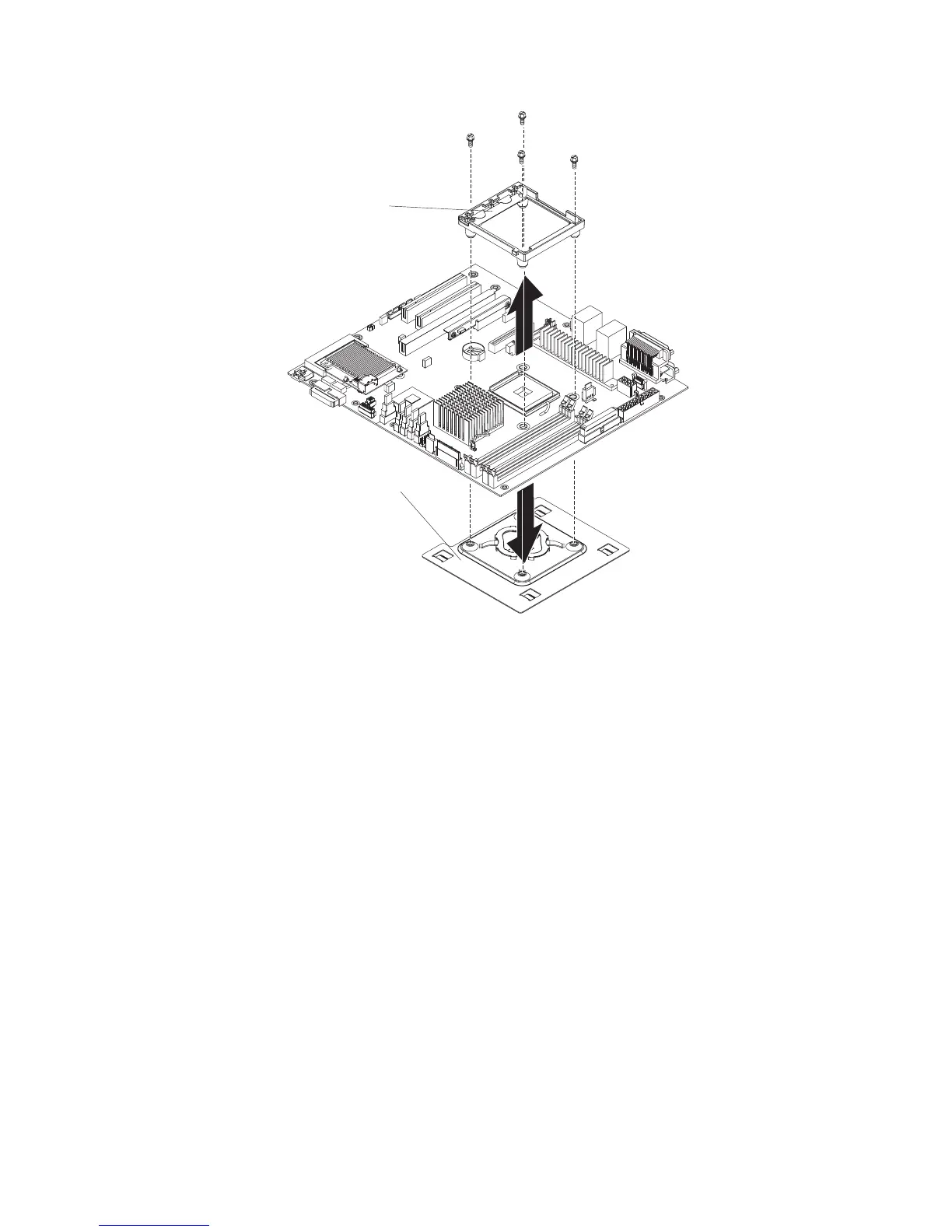

Fan-sink mounting
bracket
Fan-sink retention
module
12. If you are instructed to return the system board, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Installing the system board
To install the system board, complete the following steps:
1. Touch the static-protective package that contains the system board to any
unpainted metal surface on the server. Then, remove the system board from
the package.
2. Place the fan sink mounting bracket underneath the system board and align
the holes on fan sink mounting bracket with the four screw holes for the fan
sink retention module slot on system board. Place the fan sink retention
module on top of the system board and align it with the four screw holes for
the fan sink retention module slot (make sure that the fan sink retention
module orientation of the is correct). Take the four screws that you removed
earlier and secure the fan sink mounting bracket and the fan sink retention
module to the system board.
116 System x3200 M2 Types 4367 and 4368: Problem Determination and Service Guide
