Icom AT-141 Service Manual

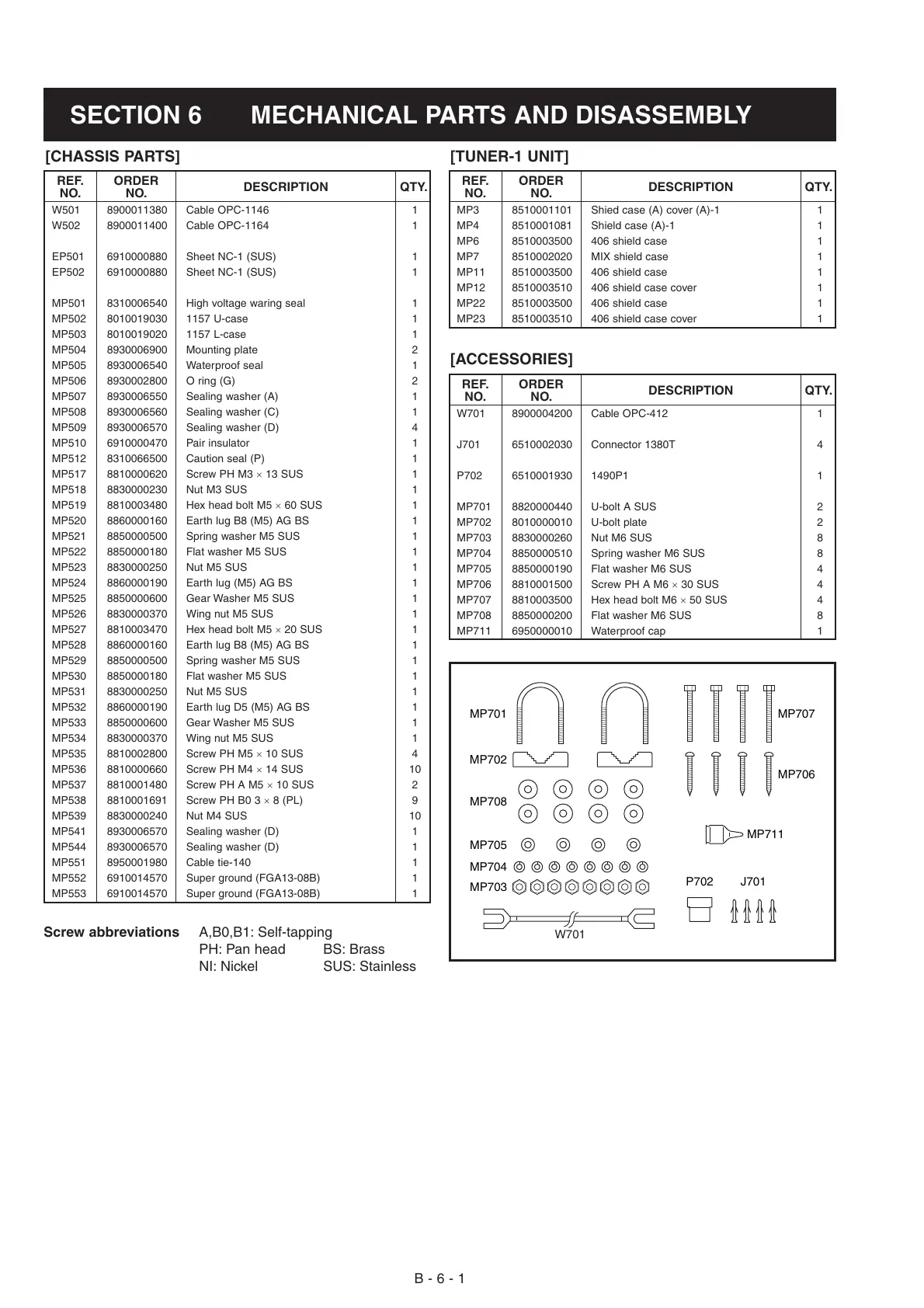

SECTION 6 MECHANICAL PARTS AND DISASSEMBLY
B - 6 - 1
[CHASSIS PARTS]
W501 8900011380 Cable OPC-1146 1
W502 8900011400 Cable OPC-1164 1
EP501 6910000880 Sheet NC-1 (SUS) 1
EP502 6910000880 Sheet NC-1 (SUS) 1
MP501 8310006540 High voltage waring seal 1
MP502 8010019030 1157 U-case 1
MP503 8010019020 1157 L-case 1
MP504 8930006900 Mounting plate 2
MP505 8930006540 Waterproof seal 1
MP506 8930002800 O ring (G) 2
MP507 8930006550 Sealing washer (A) 1
MP508 8930006560 Sealing washer (C) 1
MP509 8930006570 Sealing washer (D) 4
MP510 6910000470 Pair insulator 1
MP512 8310066500 Caution seal (P) 1
MP517 8810000620 Screw PH M3 × 13 SUS 1
MP518 8830000230 Nut M3 SUS 1
MP519 8810003480 Hex head bolt M5 × 60 SUS 1
MP520 8860000160 Earth lug B8 (M5) AG BS 1
MP521 8850000500 Spring washer M5 SUS 1
MP522 8850000180 Flat washer M5 SUS 1
MP523 8830000250 Nut M5 SUS 1
MP524 8860000190 Earth lug (M5) AG BS 1
MP525 8850000600 Gear Washer M5 SUS 1
MP526 8830000370 Wing nut M5 SUS 1
MP527 8810003470 Hex head bolt M5 × 20 SUS 1
MP528 8860000160 Earth lug B8 (M5) AG BS 1
MP529 8850000500 Spring washer M5 SUS 1
MP530 8850000180 Flat washer M5 SUS 1
MP531 8830000250 Nut M5 SUS 1
MP532 8860000190 Earth lug D5 (M5) AG BS 1
MP533 8850000600 Gear Washer M5 SUS 1
MP534 8830000370 Wing nut M5 SUS 1
MP535 8810002800 Screw PH M5 × 10 SUS 4
MP536 8810000660 Screw PH M4 × 14 SUS 10
MP537 8810001480 Screw PH A M5 × 10 SUS 2
MP538 8810001691 Screw PH B0 3 × 8 (PL) 9
MP539 8830000240 Nut M4 SUS 10
MP541 8930006570 Sealing washer (D) 1
MP544 8930006570 Sealing washer (D) 1
MP551 8950001980 Cable tie-140 1
MP552 6910014570 Super ground (FGA13-08B) 1
MP553 6910014570 Super ground (FGA13-08B) 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
Screw abbreviations A,B0,B1: Self-tapping
PH: Pan head BS: Brass
NI: Nickel SUS: Stainless
[TUNER-1 UNIT]
MP3 8510001101 Shied case (A) cover (A)-1 1
MP4 8510001081 Shield case (A)-1 1
MP6 8510003500 406 shield case 1
MP7 8510002020 MIX shield case 1
MP11 8510003500 406 shield case 1
MP12 8510003510 406 shield case cover 1
MP22 8510003500 406 shield case 1
MP23 8510003510 406 shield case cover 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[ACCESSORIES]
W701 8900004200 Cable OPC-412 1
J701 6510002030 Connector 1380T 4
P702 6510001930 1490P1 1
MP701 8820000440 U-bolt A SUS 2
MP702 8010000010 U-bolt plate 2
MP703 8830000260 Nut M6 SUS 8
MP704 8850000510 Spring washer M6 SUS 8
MP705 8850000190 Flat washer M6 SUS 4
MP706 8810001500 Screw PH A M6 × 30 SUS 4
MP707 8810003500 Hex head bolt M6 × 50 SUS 4
MP708 8850000200 Flat washer M6 SUS 8
MP711 6950000010 Waterproof cap 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
MP701
MP702
MP708
MP705
MP704
MP703
MP707
MP706
MP711
P702 J701
W701
