Icom AT-141 Service Manual

B - 1 - 1

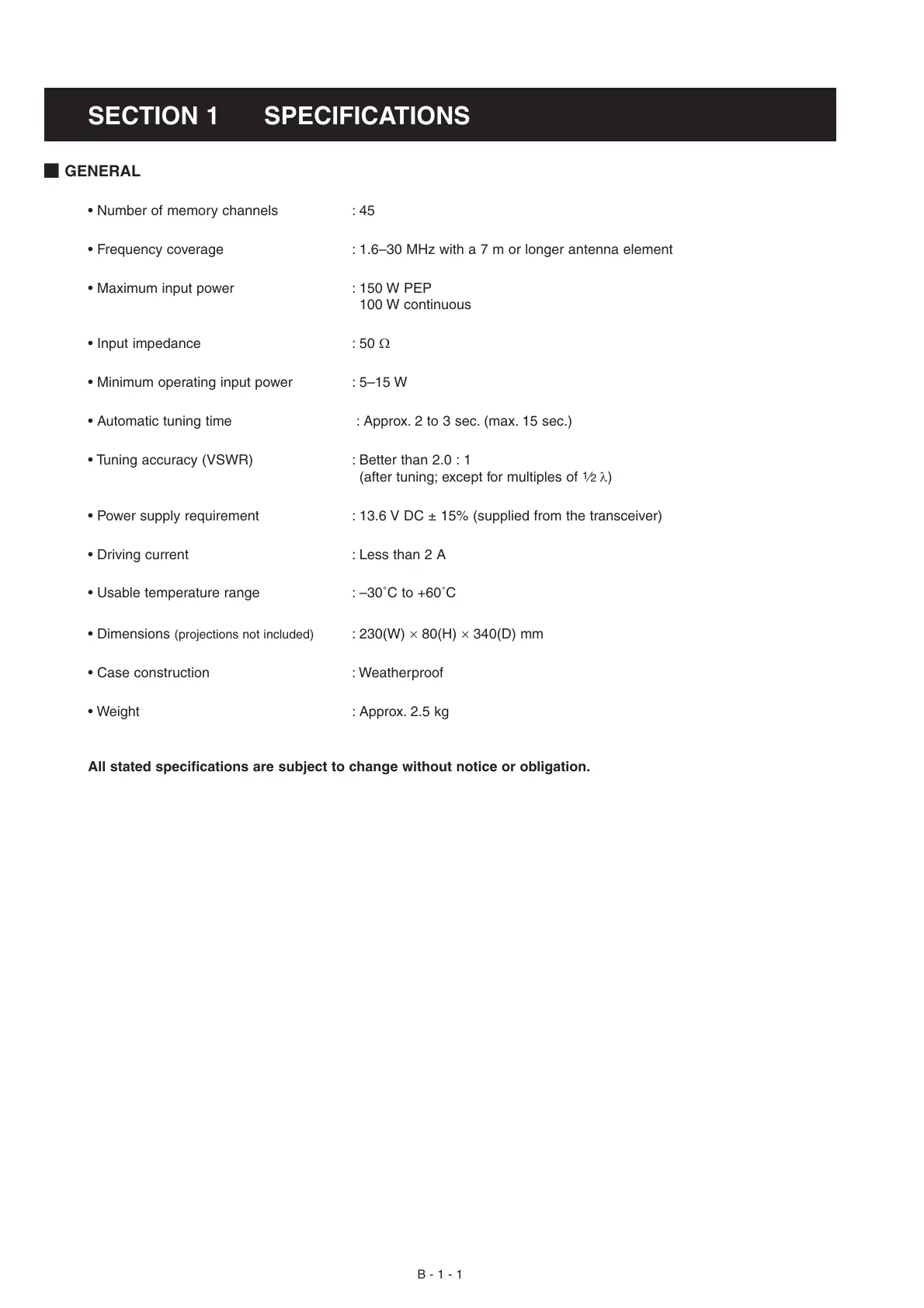

SECTION 1 SPECIFICATIONS
P GENERAL
• Number of memory channels : 45
• Frequency coverage : 1.6–30 MHz with a 7 m or longer antenna element
• Maximum input power : 150 W PEP
100 W continuous
• Input impedance : 50 Ω
• Minimum operating input power : 5–15 W
• Automatic tuning time : Approx. 2 to 3 sec. (max. 15 sec.)
• Tuning accuracy (VSWR) : Better than 2.0 : 1
(after tuning; except for multiples of
1
⁄2 λ)
• Power supply requirement : 13.6 V DC ± 15% (supplied from the transceiver)
• Driving current : Less than 2 A
• Usable temperature range : –30˚C to +60˚C
• Dimensions
(projections not included) : 230(W) × 80(H) × 340(D) mm
• Case construction : Weatherproof
• Weight : Approx. 2.5 kg
All stated specifications are subject to change without notice or obligation.
