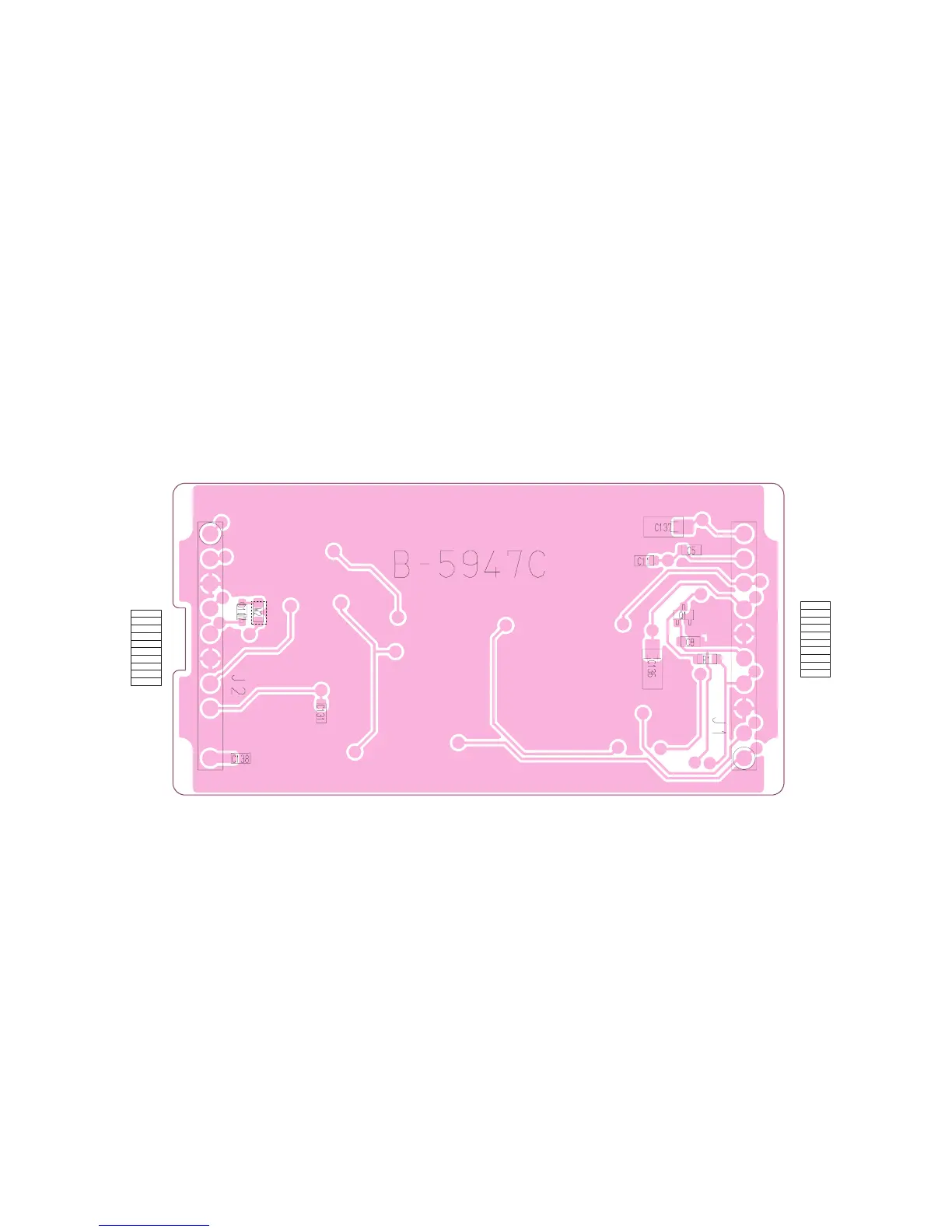

• BOTTOM VIEW (VCO BOARD)
*
*Mounted R128 in place of W2 ([USA], [E208] only)
V_LV1
to MAIN unit
10
J1
V_VCO8
VCO_SHIFT
U_LV
GND
MMUTE
MOD
GND
U_VCO8
8V
V_TXLO1
10
to MAIN unit
J2
V_RXLO
GND
U_TXLO
U_RXLO
GND
UR5
800R5
GND
PLLOUT
9 - 6
