Icom IC-F1020 User Manual

3
CONNECTION AND INSTALLATION
10
⁄ ANTENNA CONNECTOR
Connects to an antenna. Ask your dealer about antenna
selection and best installation location.
¤ MICROPHONE HANGER
Connect the supplied microphone hanger to the vehicle’s
ground for hanger function when hanging or releasing the
microphone.
‹ DC POWER RECEPTACLE
Connects to a 12 V DC battery. Pay attention to polarities.
NEVER connect to a 24 V battery. This could damage the
transceiver.
› EXTERNAL SPEAKER JACK
Connect a 4–8 Ω external speaker, if desired.
fi OPTIONAL CABLE (OPC-617)
Connect an external modem unit, LCD backlight control,
audio amplifier for ‘public address’ function, etc.

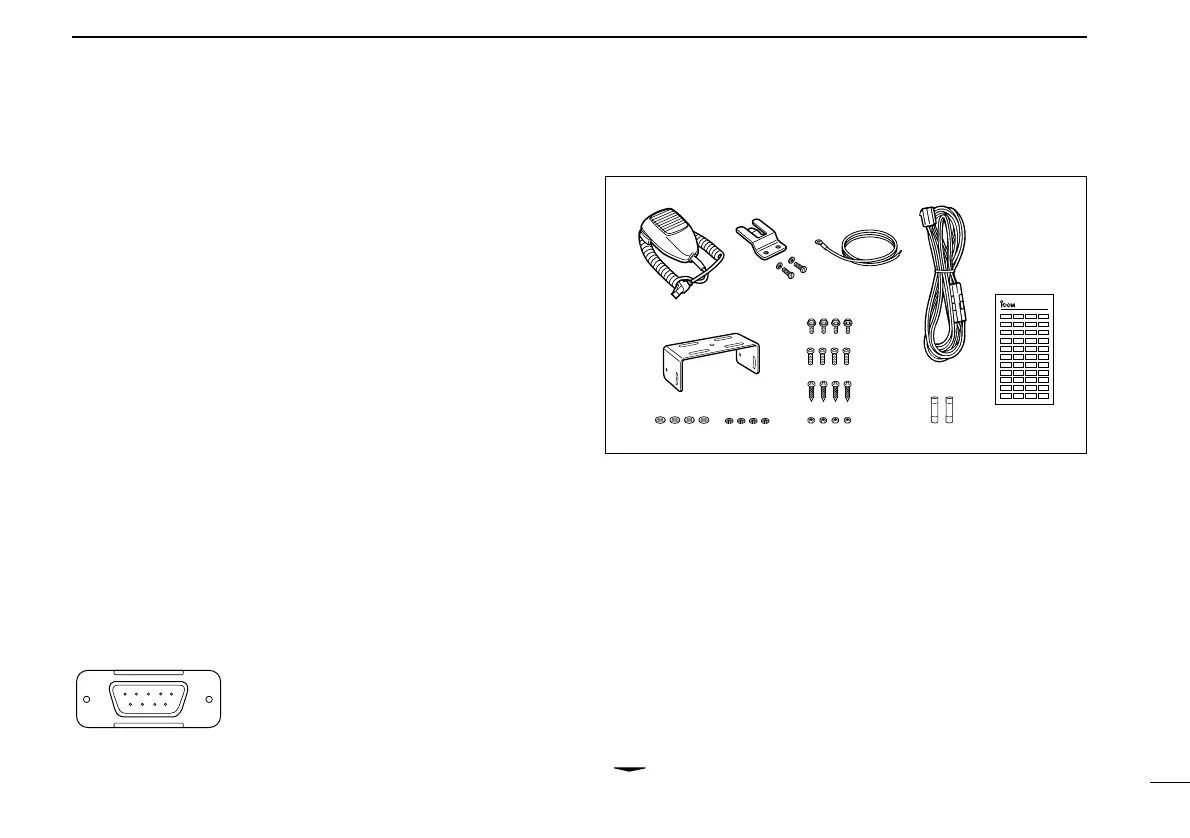

■ Unpacking
q Microphone (EM-99) ......... 1
w Microphone hanger and
screw set ..................... 1 set
e Microphone cable .............. 1
r DC power cable
(OPC-345) ......................... 1
t Mounting bracket .............. 1
y Bracket bolt ....................... 4
u Mounting screw (M5×12) ... 4
i Self-tapping screw
(M5×20) ............................. 4
o Flat washer ....................... 4
!0 Spring washer ................... 4
!1 Nut .................................... 4
!2 Fuse (15 A) ....................... 2
!3 Function name sticker ....... 1
D Function name sticker
There are no names on the programmable function keys
since the needed functions can be assigned to these keys.
Therefore, attach the supplied function name sticker on the
“” indicator.
1 LCD backlit cont. IN
2 P-Adress AF OUT
3 Det. AF OUT
4 Mod. IN
5 PTT conrol IN
6 Horn drive cont. OUT
7 P-Adress AF GND
8 Det. AF GND
9 Mod. GND
54321
9876
OPTIONAL CABLE PIN ASSIGNEMENT
12
3
4
5
6
7
8
90 A B
C
LCD-STICKER
