8 - 1
[CHASSIS PARTS]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1 6510004880 MR-DSE-01 1
W1** 8900011800 OPC-1199 1
MP1 8010019065 2601 CHASSIS-5 [EUR-01] 1
8010019065 2601 CHASSIS-5 [EXP-01] 1
8010019065 2601 CHASSIS-5 [RUS-01] 1
8010019135 2601 LONG CHASSIS-5 [USA-01] 1
8010019135 2601 LONG CHASSIS-5 [EXP-02] 1
8010019135 2601 LONG CHASSIS-5 [CHN-01] 1
8010019135 2601 LONG CHASSIS-5 [RUS-02] 1
MP2 8110007821 2601 COVER-1 1
MP3 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 8
MP4 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 2
MP5 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 2
MP6 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 1
MP7 8810009991 SCREW BT B0 3X8 NI-ZK3 (BT) 4
MP8 8810009991 SCREW BT B0 3X8 NI-ZK3 (BT) 2
[FRONT UNIT]
[ACCESSORIES]
[MAIN-A UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
R14 7210003330 RK09D1130A1N 1
J1 6450002210 3017-8821 1
J2* 6510022472 40FLT-SM2-TB (LF) (SN) (M) 1
J3* 6510022022 14FLT-SM2-TB (LF) (SN) (M) 1
DS11 5030003200 A01B011X 1
SP1 2510001221 C052SB500-14 1
W1** 8900010503 OPC-1046B-1 1
EP2 8930059170 SRCN-2622-SP-N-W 1
MP1 8210025590 3179 FRONT PANEL ASSY (Incl. SP1, MP2, 11) 1
MP2 8310073260 3179 WINDOW PLATE 1
MP3 8510019440 3179 SHIELD PLATE (Incl. MP4) 1
MP4 8930078670 3179 EARTH SPRING 1
MP5 8930078660 3179 KEYBOARD 1
MP6 8610014010 KNOB N-386 (Incl. MP7) 1
MP7 8610007420 KNOB SPRING NO.6601 1
MP8 8930059090 2622 LCD PLATE 1
MP9 8210019350 2622 REFLECTOR 1
MP10 8930059100 2622 LCD FILTER 1
MP11 8930059000 2601 SP NET 1
MP12 8930070850 2979 VOL RUBBER 1
MP13 8810008761 SCREW BT B0 2X8 NI-ZC3 (BT) 3
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1* 6510026770 AXK540147YG 1
J2* 6510022472 40FLT-SM2-TB (LF) (SN) (M) 1
J4 6450000140 HSJ0807-01-010 1
J6* 6510022891 B13B-ZR-SM4-TF (LF) (SN) 1
J7* 6510014961 B2B-ZR-SM4-TF (LF) (SN) 1
S1* 2260003180 MINISMDC050F 1
W1* 7120000470 ERDS2T0 1
W2 8900011863 OPC-1195C 1
EP2* 6910011560 HF70BB4.5X5X1.6 [USA-01] 1
6910011560 HF70BB4.5X5X1.6 [EXP-02] 1
6910011560 HF70BB4.5X5X1.6 [CHN-01] 1
EP3* 6910011560 HF70BB4.5X5X1.6 [USA-01] 1
6910011560 HF70BB4.5X5X1.6 [EXP-02] 1
6910011560 HF70BB4.5X5X1.6 [CHN-01] 1
EP4* 6910010280 HF70BB9.5X10.4X4.9 1
EP5* 6910010280 HF70BB9.5X10.4X4.9 1
MP1 8510019340 3179 VCO CASE 1
MP2 8510019350 3179 VCO COVER 1
MP3 8510015110 2602 M-PLATE 1
MP4* 8930055841 2490 EARTH SPRING-1 1
REF ORDER
DESCRIPTION QTY.
NO. NO.
MC1 (Optional) HM-152 1
W1 (Optional) OPC-1194A [EUR-01] 1
(Optional) OPC-1194A [EXP-01] 1
(Optional) OPC-1194A [RUS-01] 1
(Optional) OPC-1132A [USA-01] 1
(Optional) OPC-1132A [EXP-02] 1
(Optional) OPC-1132A [CHN-01] 1
(Optional) OPC-1132A [RUS-02] 1
W2 8900000731 OPC-049A 1
MP1 8010019151 2601 MOBIL BRACKET-1 (Incl. MP2) 1
MP2 8930059160 2601 FELT 2
MP3 8820000530 FLANGE BOLT M4X8 NI 4
MP4 8810000471 SCREW PH (+-) M5X12 ZC3 4
MP5 8810005841 SCREW BT A0 5X20 ZC3 4
MP6 8850000150 FLAT WASHER M5 BS NI 4
MP7 8850000391 SPRING WASHER M5 ZC3 4
MP8 8830000121 NUT M5 ZC3 4
MP9 8950005110 2289 MIC HANGER 1
MP10 8310073440 3179 LCD LABEL 1
MP11 8810004700 SCREW BT A0 3X16 SUS 2

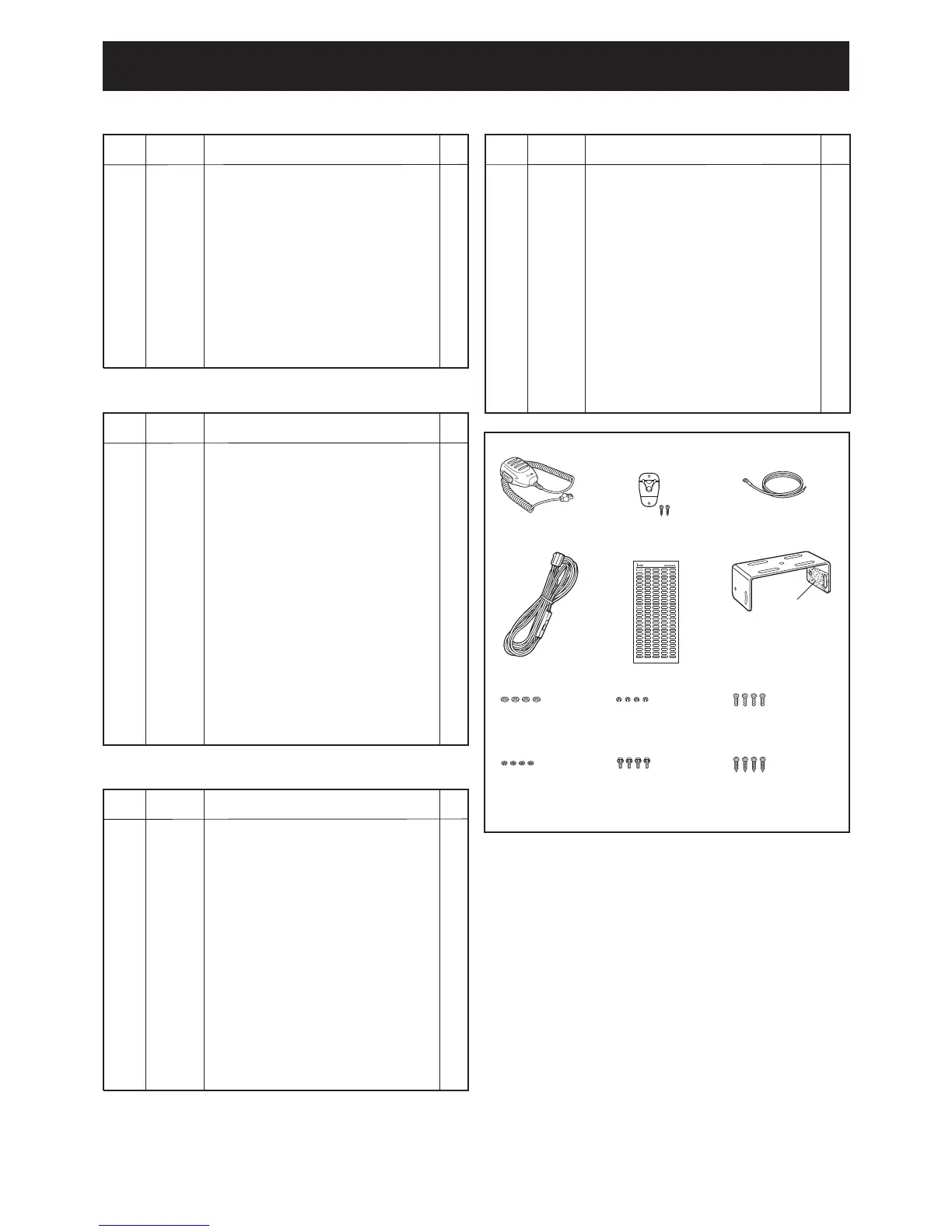

SECTION 8
.
MECHANICAL PARTS
*: Refer to “BOARD LAYOUTS” for the location.
**: Refer to “GENERAL WIRING” for the connection
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
MC1
MP9
MP11
W2
W1
MP6
MP7
MP3
MP4 (M5×12)
MP5 (M5×20)
MP8
MP10*
Used for labelling the programmable function
keys according to their assinged functions.
*
MP1
MP2
