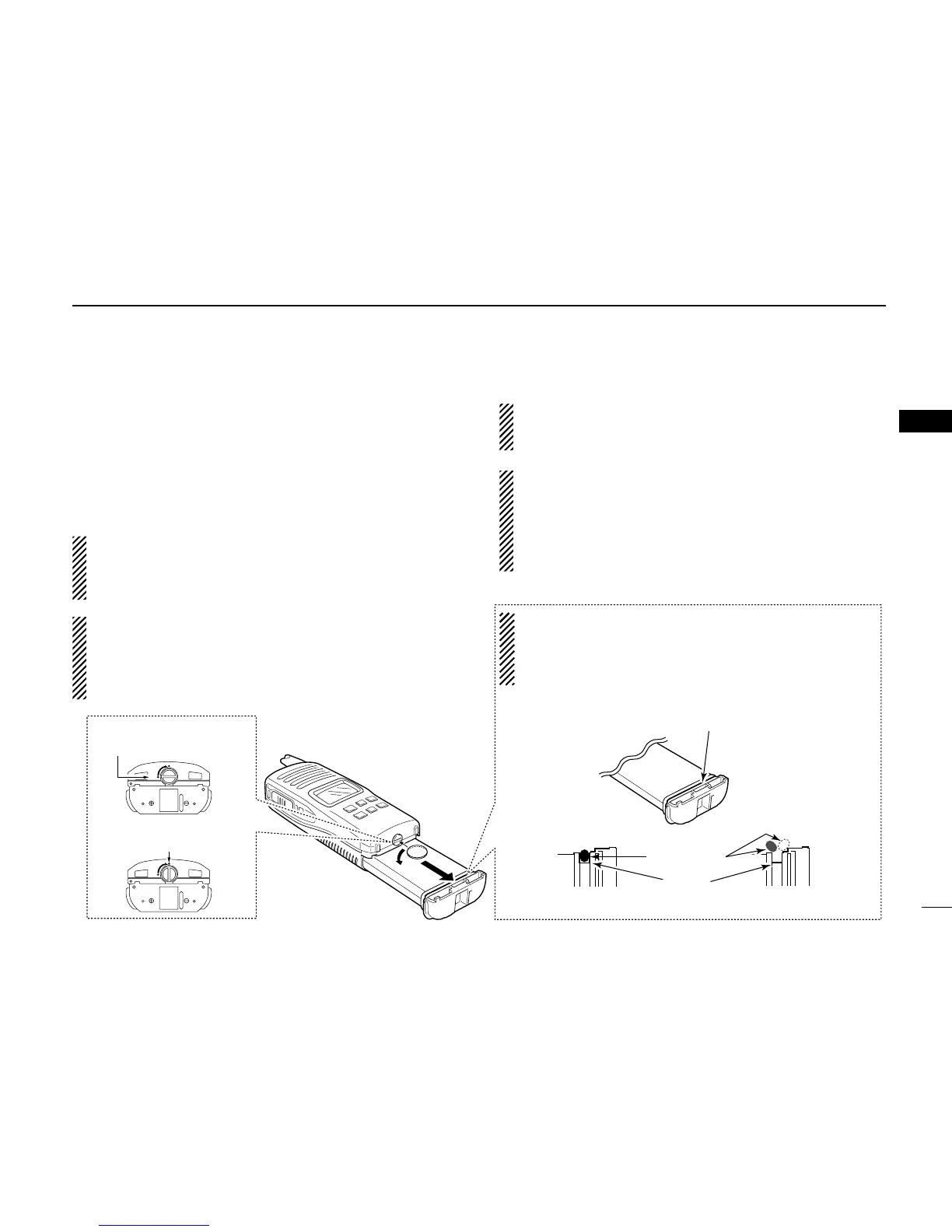

OPEN
LOCK
Screw position
when removing battery
Screw position
when attaching battery
OPEN
LOCK
Make sure both the rubber seal (purple) is set into the groove
correctly and dust or else does not adhere to it.
Battery pack
Battery pack
Rubber seal
Groove
Correct position
Incorrect position
NOTE:
When attaching a battery pack, make sure dust or else does
not adhere to the rubber seal. If dust or anything else is on
the seal when attaching a battery pack, the water resistant
seal may be compromised.
2
SUPPLIED ACCESSORIES AND ATTACHMENTS
D Battery pack
To remove the battery pack:
Turn the screw counterclockwise, then pull the battery pack
in the direction of the arrow as shown below.
To attach the battery pack:
Insert the battery pack in the IC-GM1600 completely, then
turn the screw clockwise.
NEVER remove or insert the battery pack when the trans-
ceiver is wet or soiled. This may result water or dust get-
ting into the transceiver/battery pack and may result in the
transceiver being damaged.
NOTE: When removing or attaching the battery pack, use
a coin or flat-blade screwdriver to loosen or tighten the
bottom screw.
CAUTION!:
When attaching or removing a battery pack, make sure
the rubber seal is set in the groove of the battery pack
correctly. If the seal is not neatly in the groove it may be
damaged when attaching the battery pack.
If the seal is damaged, waterproofing is not guaranteed.
NOTE: When the lock screw does not easily turn (feels
tight), check to ensure the battery pack is sufficiently in-
serted to the transceiver.
DO NOT bang or cause high
impact to the battery pack, as this may damage the bat-
tery pack/or the transceiver.
