Icom IC-M304 Service Manual

Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
7 - 1

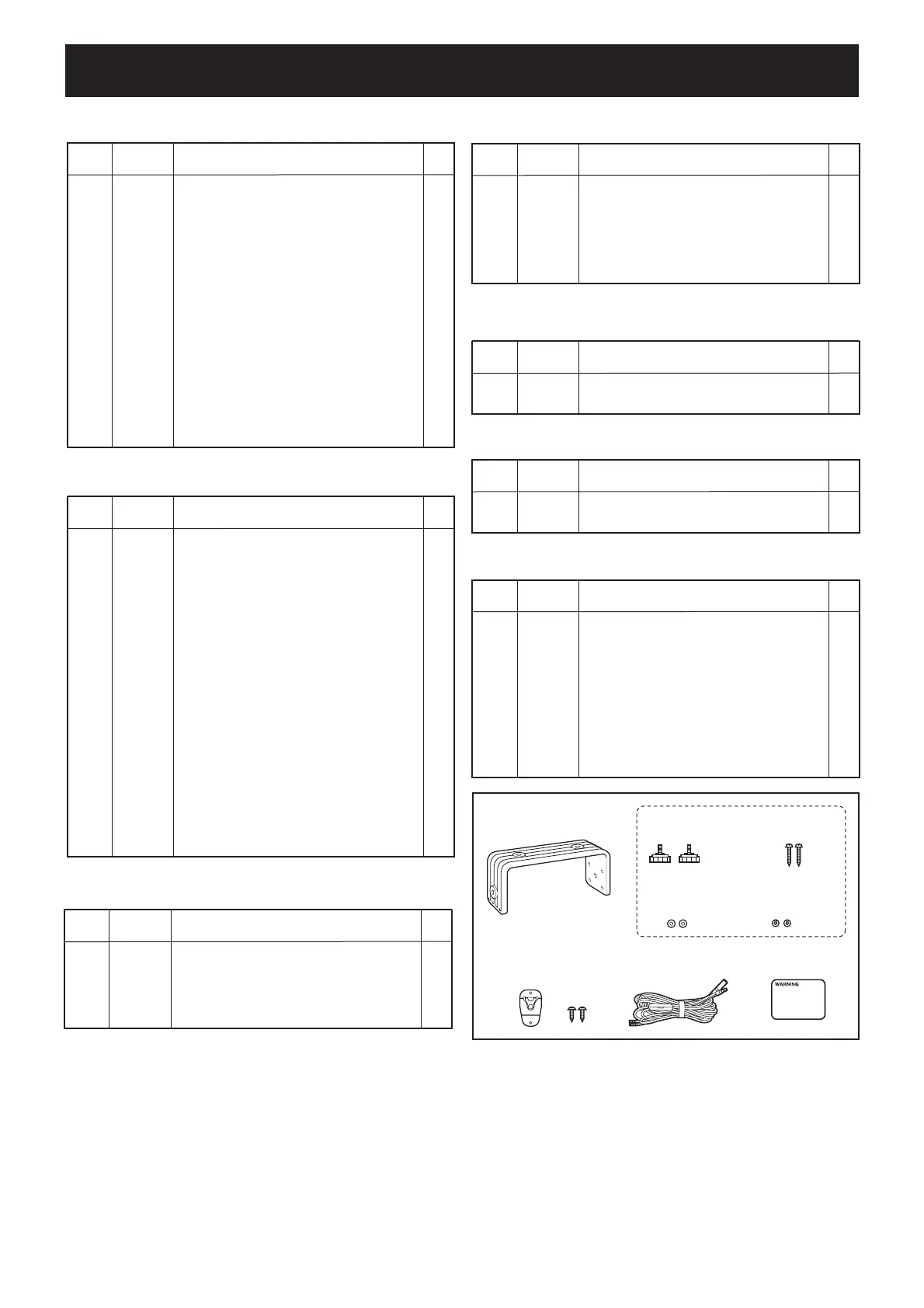

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
[CHASSIS PARTS]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1 6510004880 MR-DSE-01 1
W1 8900012331 OPC-1258A 1
MP2 8010019302 2685 CHASSIS-2 1
MP3 8930061050 2685 R-BUSH PLATE 1
MP4 8510015570 2685 CASE [Black] 1
8510018180 2685 CASE (C) [Super White] 1
8510015690 2685 CASE (B) [Gray] 1
MP5 8930060440 2685 R-PACKING 1
MP6 8930060451 2685 F-PACKING-1 [Black] 1
8930060451 2685 F-PACKING-1 [Super White] 1
8930061191 2685 F-PACKING (A)-1 [Gray] 1
MP7 8930034300 1542 ANT SEAL 1
MP8 8930052440 2345 B-IC CLIP 1
MP10 8510015560 2685 MODULE COVER 1
MP11 8930055070 2438 SHEET 1
MP12 8810008661 Screw BT B0 3X8 NI-ZC3 (BT) 6
MP13 8810008201 Screw BTB0 2.6X6NI-ZC3 (BT) 2
MP14 8810002950 Screw BiH M3X6 SUS 2
MP15 8810004540 Screw BiH M3X8 SUS 4
MP16 8810004700 Screw BT A0 3X16 SUS 4
MP19 8510018260 2989 MODULE PLATE 1
[FRONT UNIT]
[ACCESSORIES]
[LOGIC UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
R1 7070001220 3.9 ERX2SJ 1
MC1
Optional product HM-164B [Black] 1
Optional product HM-164SW [Super White] 1
Optional product HM-164G [Gray] 1
SP1 2510001350 045P0806-7-1 1
W1 7120000470 ERDS2T0 1
W2 8900012412 OPC-1263B 1
MP1 8210023510 2989 FRONT PANEL [Black] 1
8210023520 2989 FRONT PANEL (A) [Super White] 1
8210023670 2989 FRONT PANEL (B) [Gray] 1
MP2 8930071270 2989 KEY BOARD 1
MP3 8310068590 2989 WINDOW PLATE 1
MP4 8610011370 KNOB N-312 [Black] 2
8610012140 KNOB N-312 (C) [Super White] 2
8610011640 KNOB N-312 (B) [Gray] 2
MP5 8930014280 Speaker net (FX-706) 1
MP6 8810010021 Screw BTB0 2.6X8NI-ZC3 (BT) 4
MP7 8930052010 2345 SHAFT 1
MP8 8930060481 2685 SPRING-1 1
MP9 8110008990 2989 D-COVER 1
MP10 8930060470 2685 SHAFT ANGLE 1
MP11 8930060490 2685 F-BUSH PLATE 1
MP12 8930052280 O-ring (AC) 2
MP13 8930055841 2490 EARTH SPRING-1 1
REF ORDER
DESCRIPTION QTY.
NO. NO.
DS1 5030002990 SDT-DM2360-HP-0 1
EP2 8930054970 SRCN-2438-SP-N-W 2
MP1 8210017700 2438 REFLECTOR 1
MP2 8930054650 2438 LCD HOLDER 1
MP3 8930055060 2438 WHITE SHEET 1
[MAIN UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J2 6510024601 S5B-PH-K-S (LF) (SN) 1
W1 8900012401 OPC-1264A 1
W2 7120000470 ERDS2T0 1
MP1* 8510011111 1922 VCO CASE-1 1
MP2 8510011101 1922 VCO COVER-1 1
MP3 8510016170 2685 SHIELD PLATE 1
MP4 8930005320 Filter spacer 2
REF ORDER
DESCRIPTION QTY.
NO. NO.
W1 8900009041 OPC-891A 1
MP1 8950005110 2289 MIC HANGER 1
MP2 8010017250 2040 MOBILE BRACKET [Black] 1
8010020710 2040 MOBILE BRACKET (C) [Super White] 1
8010019400 2040 MOBILE BRACKET (B) [Gray] 1
MP3 8610010561 2040 KNOB BOLT-1 [Black] 2
8610011260 2040 KNOB BOLT (B)-1 [Super White] 2
8820001271 2040 KNOB BOLT (C)-1 [Gray] 2
MP4 8810004700 Screw BT A0 3X16 SUS 2
MP5 8810001490 Screw BT A0 5X20 SUS 2
MP6 8850000180 Flat washer M5 SUS 2
MP7 8850000500 S-washer M5 SUS 2
MP8 8310050900 2438 warning sticker 1
[SQL UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
R1 7210003150 TP96N97-15SK-10KB-2685 1
J1 6510009471 S3B-ZR (LF) (SN) 1
[VR UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
R1 7210003140 TP96N97N-15SK-10KA-2685 1
J1 6510009381 B5B-ZR (LF) (SN) 1
MP2
MP3 MP5
MP4
MP8
W1
MP6 MP7
MP1
For mounting bracket
*: Refer to SECTION 9 BOARD LAYOUTS.
